Rmstator RMS900-107052 Stator Regulator Rectifier External Ignition Coil Kit

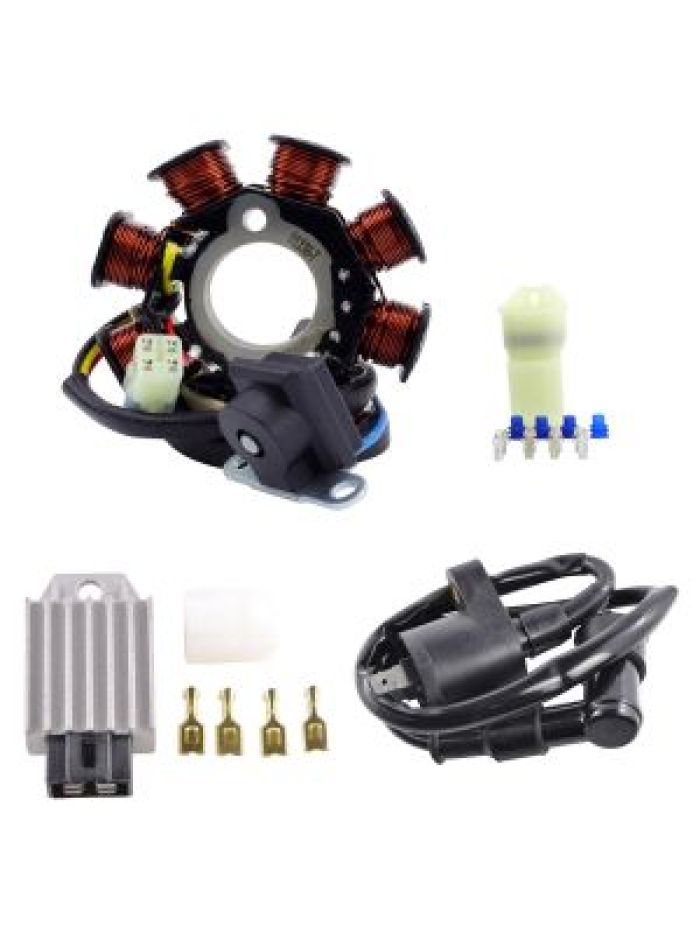

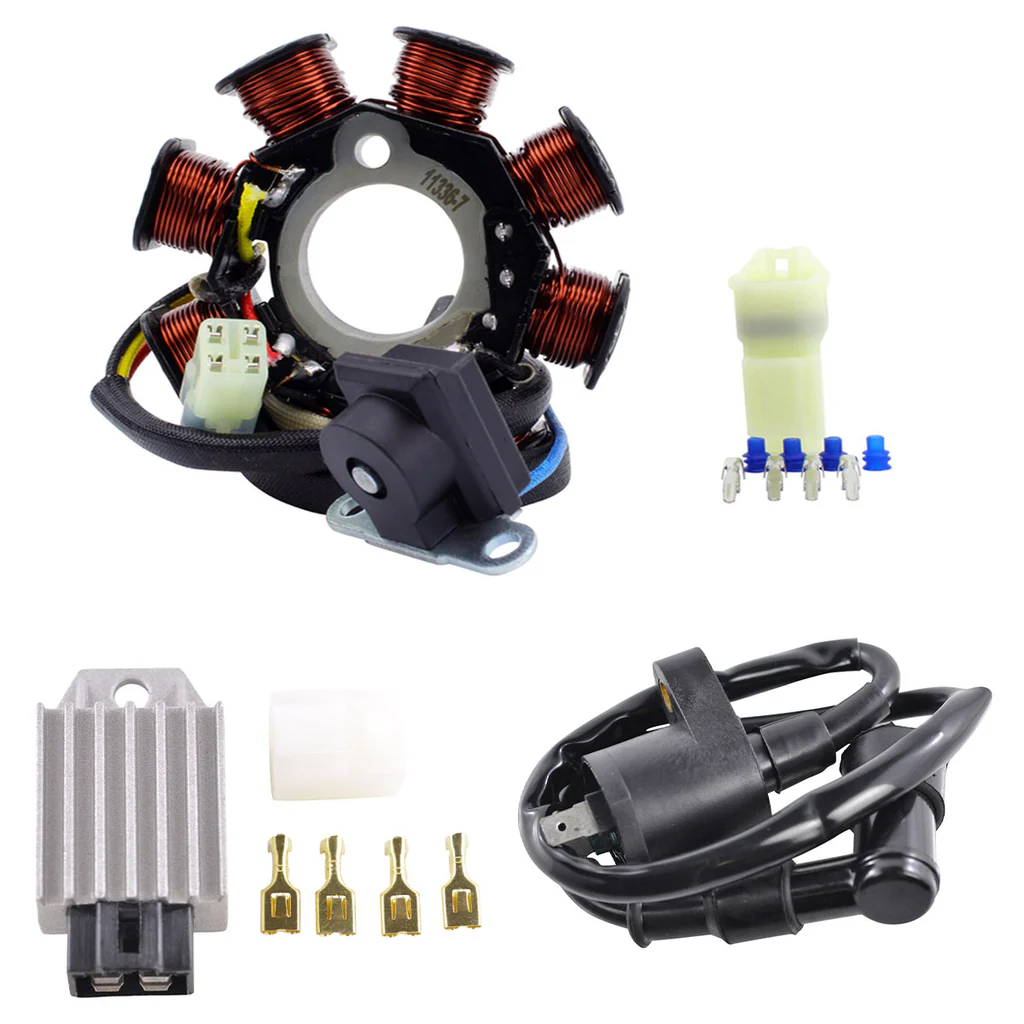

The Rmstator RMS900-107052 is a complete aftermarket electrical system replacement kit that includes a stator, voltage regulator rectifier, and external ignition coil. This plug-and-play kit offers direct fit installation, making it an ideal solution for restoring charging and ignition performance on youth ATVs and side-by-sides. The quality exceeds OEM equipment standards, providing a reliable upgrade over factory components.

Stator Features:

• Highest grade copper windings resistant to 200 degrees Celsius
• Highest grade lamination materials
• Pick up pulsar coil, connector, and rubber grommet included
• 4-wire design with 4-pin connector

Voltage Regulator Rectifier Features:

• Higher grade electrical components with improved heat sink and charging capabilities
• No assembly required
• Compact dimensions: 35mm width x 68mm length x 20mm height
• 4-pin connector configuration

Technical Specifications:

• Alternator resistance: Red to Black = 1 ohm ±20%, Yellow to Black = 0.8 ohm ±20%
• Pickup coil resistance: Blue to Black = 120 ohms ±20%
• Replaces OEM part number 0454949

All products are tested before shipping and serve as a direct replacement to your original unit. This comprehensive kit eliminates the need to source multiple components separately, providing everything needed to restore your charging and ignition system in one package.
