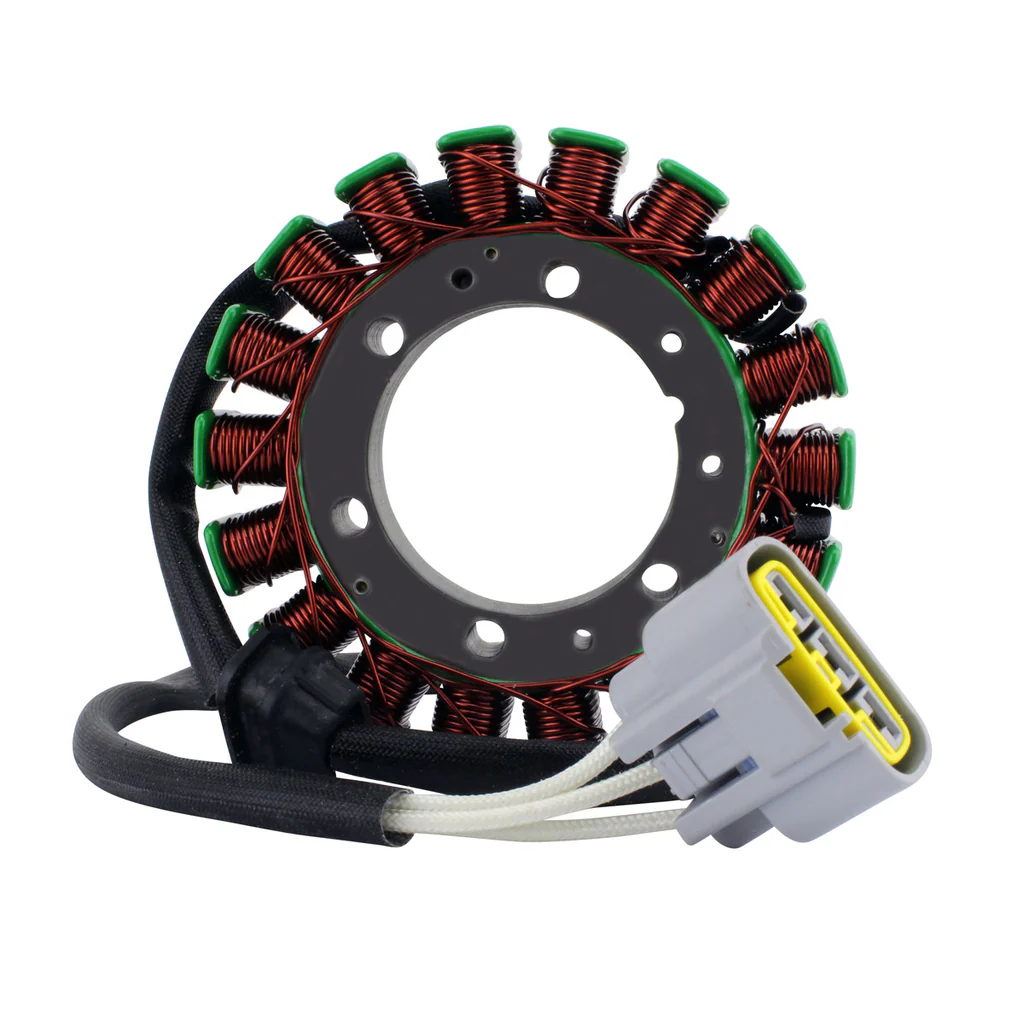

Rmstator RMS010-108086 Generator Stator for CFMoto 800 ATV UTV

The RMStator RMS010-108086 is a premium aftermarket generator stator designed as a direct replacement for CFMoto CFORCE, UFORCE, and ZFORCE 800 models from 2013-2023. This high-performance stator restores reliable charging system operation to keep your ATV or UTV running at peak performance.

Key Features:

• Direct plug-and-play replacement for OEM part number 0800-032000
• 18-pole design with 3-wire, single-plug configuration for optimal power output

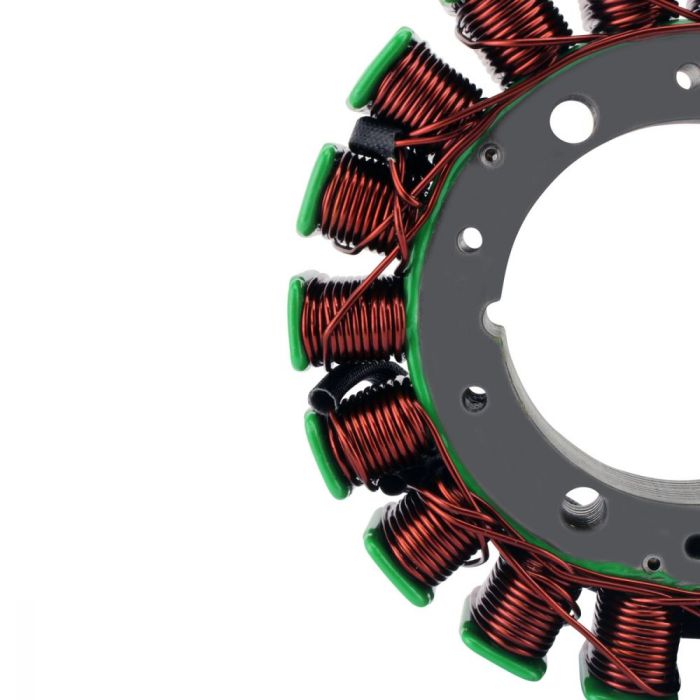

• Premium copper windings rated to withstand temperatures up to 200 degrees Celsius
• High-grade lamination materials for superior durability and efficiency
• Alternator resistance: Yellow to Yellow = 0.6 ohms ±20%
• Complete installation hardware included: connector and rubber grommet
• Factory tested before shipment to ensure quality and reliability

Technical Specifications:

• Interior diameter: 2.13 inches (54mm)
• Exterior diameter: 4.53 inches (115mm)

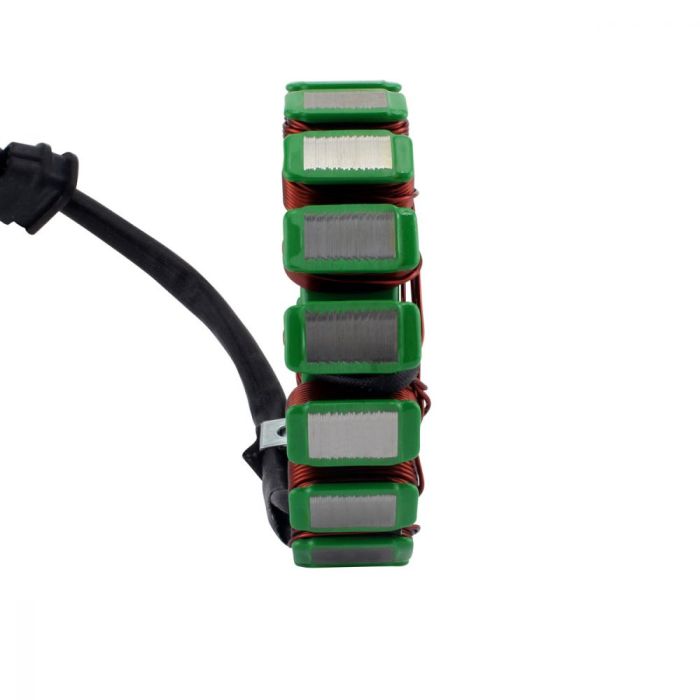

• Thickness: 0.71 inches (18mm)
• Wire length from stator to grommet: 4.92 inches (125mm)
• Wire length from grommet to plug: 18.9 inches (480mm)
• Number of poles: 18

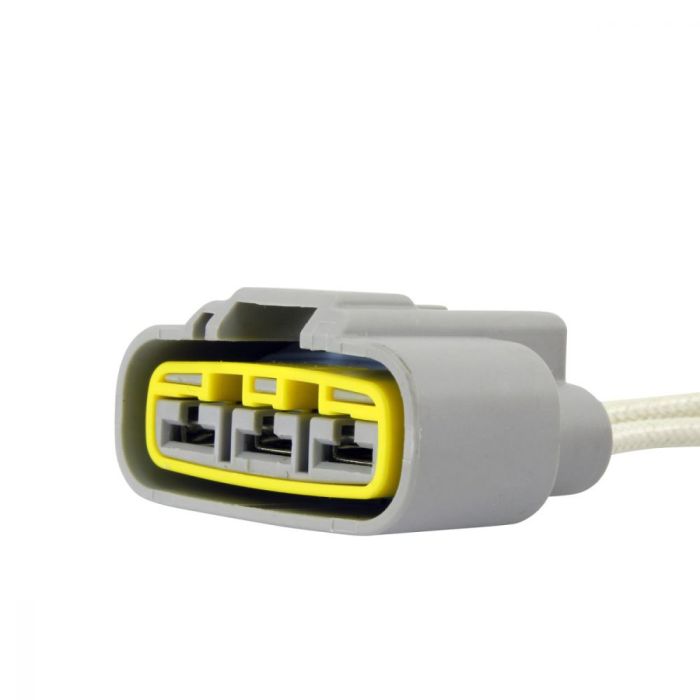

• Number of wires: 3 (3-pin connector)

Installation Notes: Always use thread-locking compound when bolting the stator in place. Ensure you start with a fully charged battery, as no stator can compensate for a weak or failing battery. Wire colors may differ from OEM, but all wires are pre-installed in the correct order for direct plug-in replacement.

Replaces CFMoto OEM part number 0800-032000. Backed by RMStator's commitment to quality engineering and customer support.
