BD Diesel 1064514BM TorqueMaster Transmission Converter Package Ford Power Stroke - 6R140 6.7L

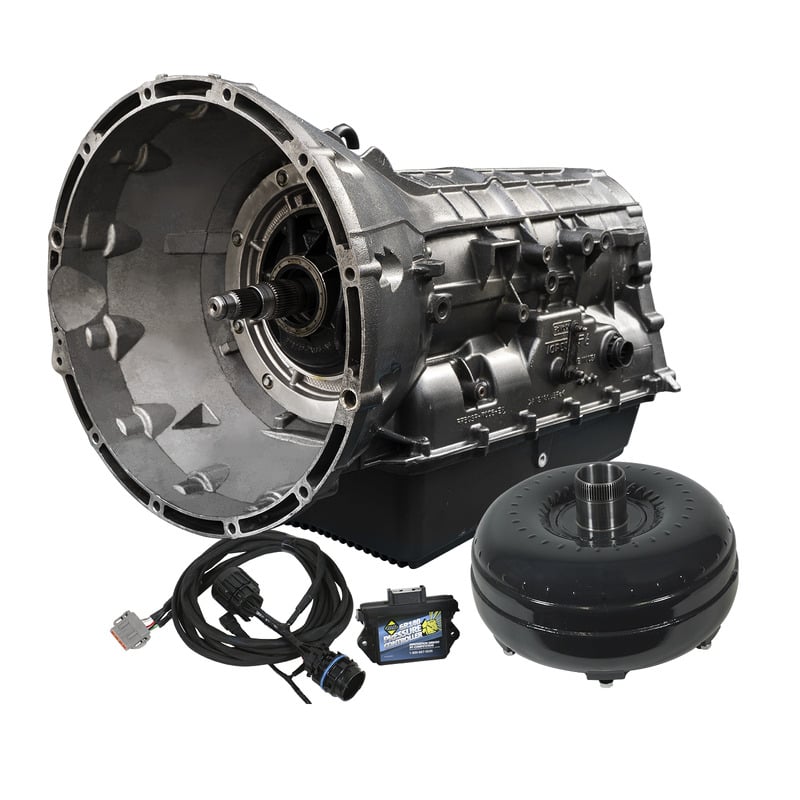

The BD Diesel TorqueMaster 6R140 Transmission and Torque Converter Package delivers a complete, dyno-tested solution engineered for Ford 6.7L Power Stroke diesel trucks (2017-2019). This matched transmission and converter set is designed to handle the extreme power and torque demands of towing, street performance, and track use. Every package includes BD's Heavy Duty transmission pan for increased fluid capacity and improved thermal management.

Transmission Enhancements:

• Significantly increased clutch counts: Forward 6 (20% over stock), Direct 6 (20% over stock), Intermediate 8 (60% over stock), Overdrive 8 (14% over stock), Low Reverse 5

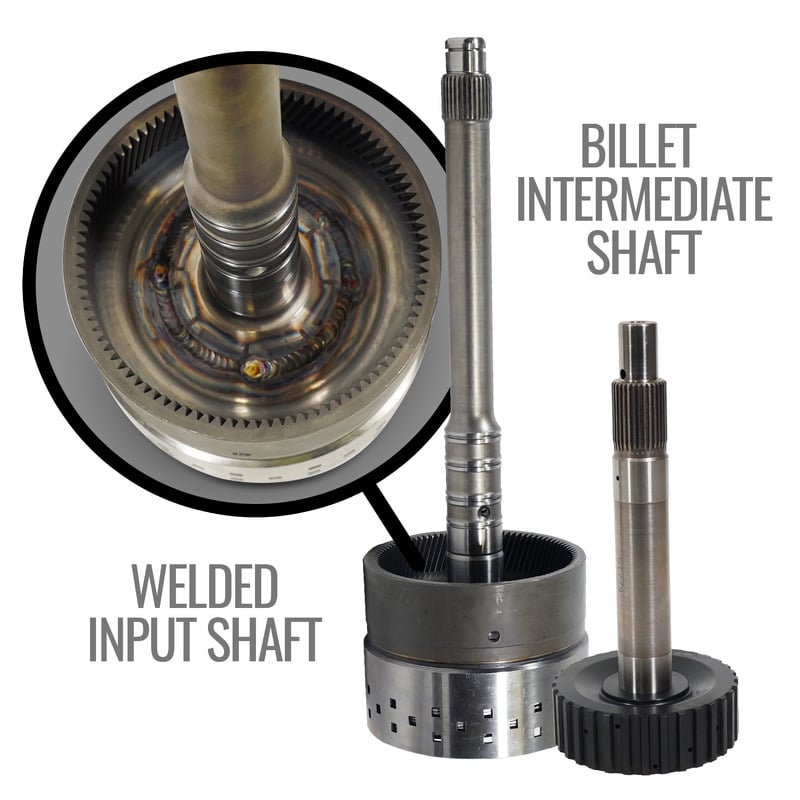

• Billet intermediate shaft designed to handle higher horsepower applications
• Upgraded input shaft with TIG welding to prevent OEM weld failure under demanding conditions
• Custom BD patented pressure plates maximize clutch count without compromising component strength
• Brand new valve body for improved shift quality and control
• Electronic Line Pressure Controller delivers up to 300 PSI line pressure at wide-open throttle
• 76% more theoretical holding power compared to stock transmission
• Intelligent pressure controller only activates when boost exceeds 15 PSI, eliminating parasitic load and unnecessary heat generation

Torque Converter Features:

• Captured clutch design maintains excellent drivability and smooth engagement
• Four-surface clutch assembly doubles the OEM friction area for superior holding power
• Increased steel plate count enhances heat dissipation during heavy use
• 23% increased piston area provides additional clutch clamping force
• Billet bearing hub, piston, and clutch retainer for maximum strength and durability
• Stamp-forged one-piece cover construction
• Furnace-brazed pump and turbine fins ensure long-term reliability

Installation Requirements:

• Estimated installation time: 12 hours
• Ford scanner required to update TCM with new solenoid code and initiate transmission relearn procedure (critical for proper operation)
• 2WD applications require yoke adapter and rear mount bracket transfer from original transmission
• Compatible with both 2WD and 4WD applications
• Not compatible with early 2011 trucks featuring 8-bolt flex plate (requires 6-bolt flex plate update)

Warranty Coverage:

• Parts: 36 months or 150,000 miles
• Labor: 12 months or 12,000 miles
• Note: Racing abuse not covered under warranty

Emissions Compliance: This product does not require an Executive Order in California and is legal for sale and use in all 50 states as a replacement part.
