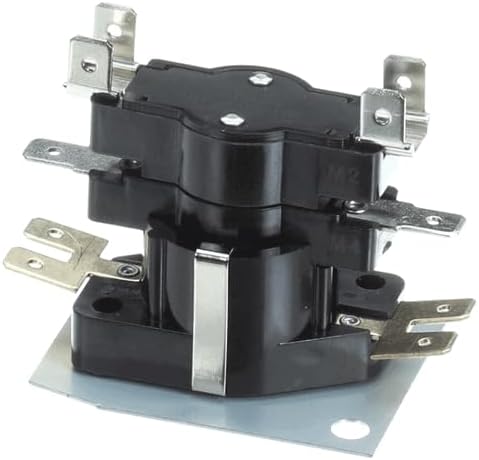

Aaon V5203B Heat Sequencer 1 Time/1 Switch 24V SPST

The Aaon V5203B is a single-time/single-switch heat sequencer designed for electric heating applications in HVAC systems. This sequencer controls the staged activation of electric heating elements, preventing circuit overload by energizing heating coils in timed intervals rather than all at once.

Key Features:

• Single timing circuit with single switching output (1T/1S configuration)
• 24-volt coil operation for compatibility with standard HVAC control systems
• SPST (Single Pole Single Throw) switch design
• Reliable thermal timing mechanism for consistent heating element activation
• Direct replacement for HS24A343 sequencers
• Designed for commercial and light industrial HVAC applications

This heat sequencer is commonly used in Aaon rooftop units and packaged HVAC systems to manage electric heat staging. The timing mechanism ensures proper sequencing intervals between heating stages, protecting electrical components and providing smooth temperature control. Cross-referenced with HS24A343 for easy replacement identification.
