Conbraco AE-600-10 Electric Actuator 600 In-Lbs Torque 115VAC

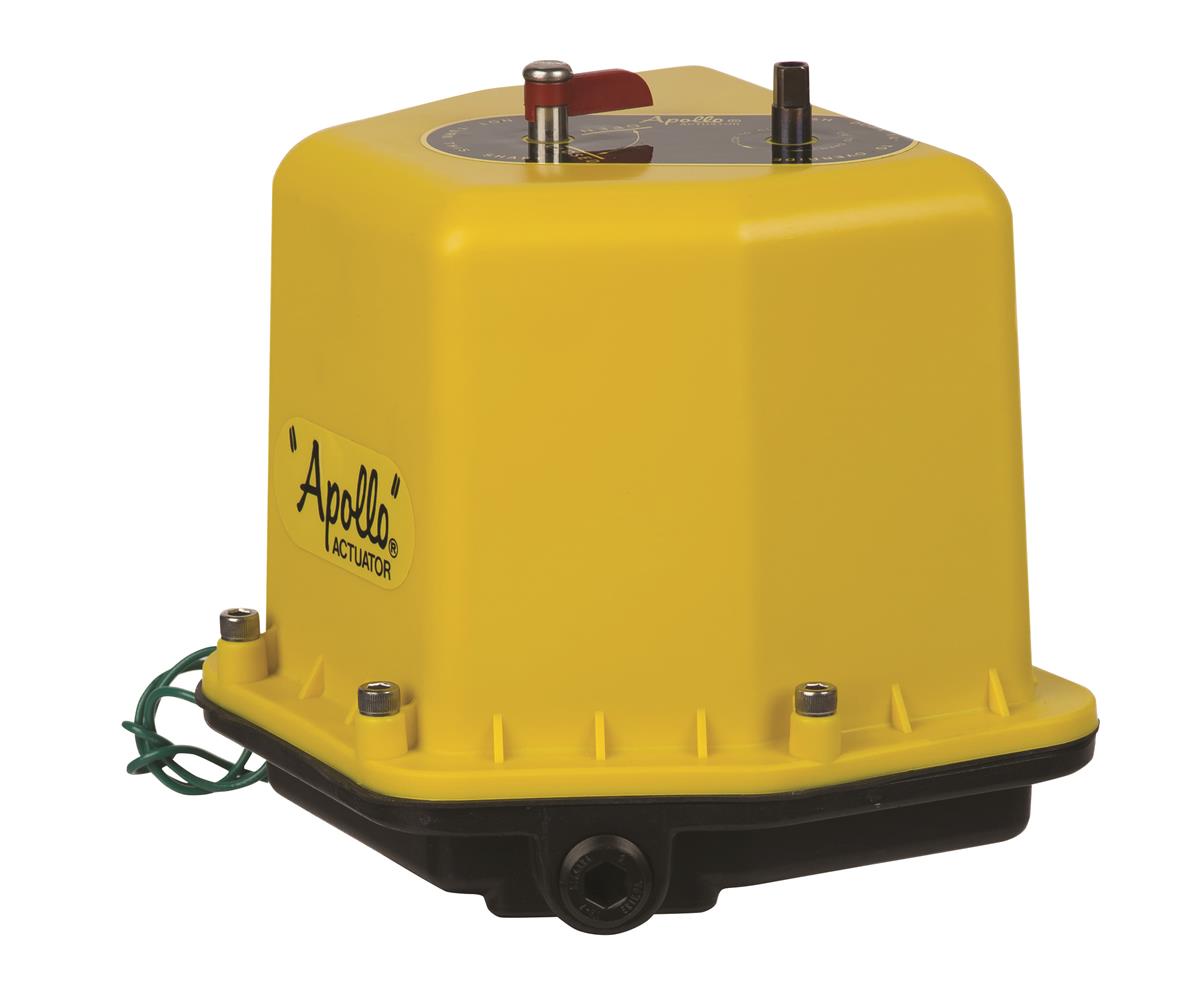

The Apollo AE-600-10 is a ruggedly built electric actuator designed for easy installation, delivering exceptional standard features and performance in its class. This 90-degree electric actuator operates on 115VAC power and provides 600 inch-pounds of breakaway torque output, with a 1/2 inch FNPT conduit electrical connection. CSA listed for safety and reliability.

Key Specifications:

• Breakaway torque output: 600 inch-pounds
• Cycle time: 15 seconds for 90-degree travel at 50% load
• Amperage draw: 0.74 amp at 115VAC
• Duty cycle: 25%
• Operating temperature range: 32°F to 150°F
• Motor: 115VAC reversible, 3-wire capacitor run with self-resetting thermal overload protection and Class B insulation

Standard Features:

• Stainless steel push-and-turn manual override shaft
• Position indicator shaft and female output
• ISO 5211 F07 drive output reduces inventory of mounting kits
• Permanently lubricated gear train and bearings
• Die-cast aluminum body with nitrile softgoods and anodized finish
• Reversible rotation

The AE-Series actuator may be mounted in any position, including horizontal or upside down. Ideal for use with ball valves and other quarter-turn valve applications requiring reliable, automated control in commercial and industrial settings.
