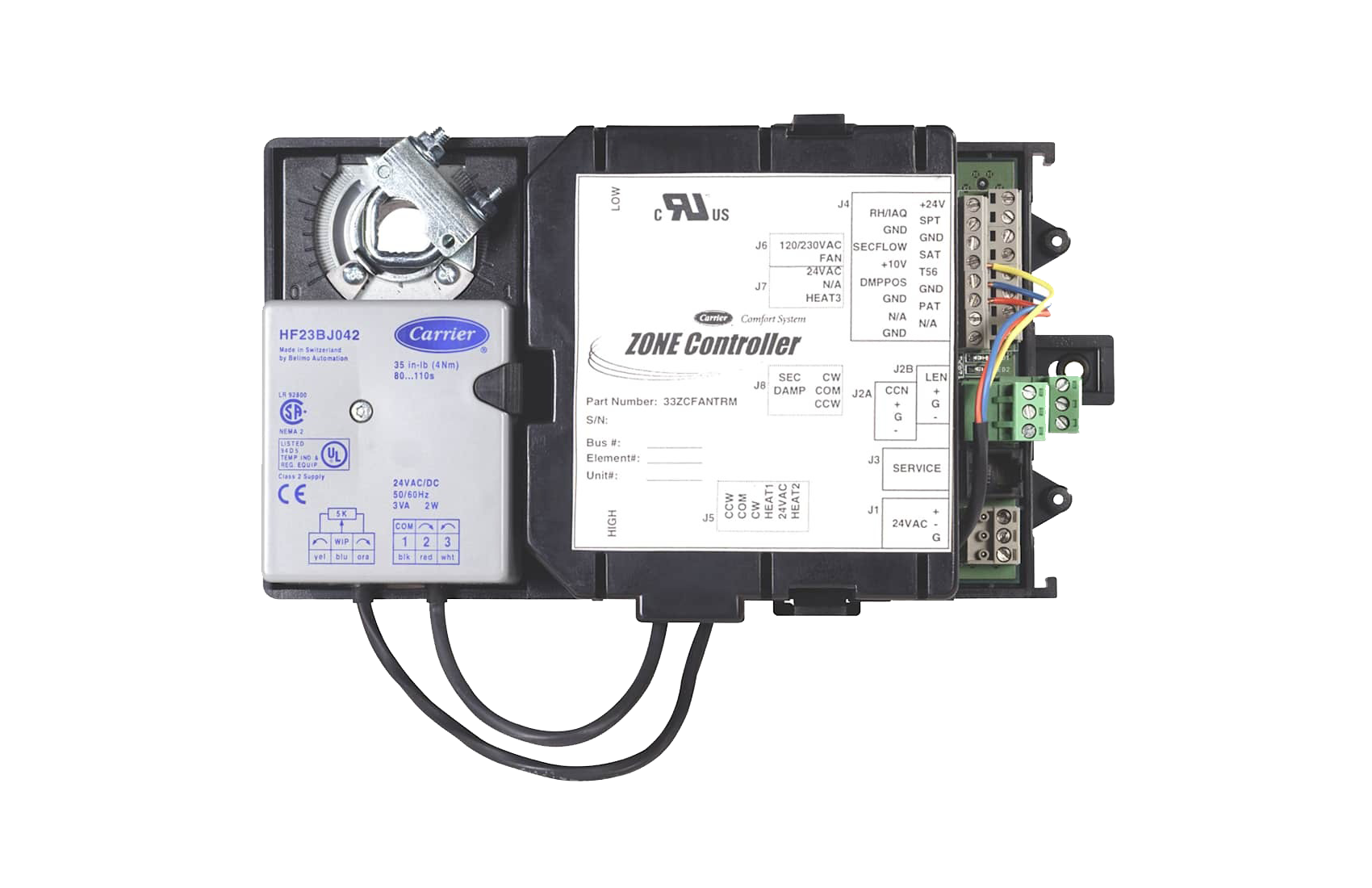

Carrier 33ZCFANTRM ComfortID VAV Fan Terminal Zone Controller

Manufacturer

Part Number

33ZCFANTRM
Sale Price

$2,673.18

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Carrier 33ZCFANTRM VAV Fan Terminal Zone Controller provides dedicated control functions for series fan or parallel fan powered terminals, single duct terminals with 3 stages of heat, or as a primary controller for dual duct or zone pressurization applications. The zone controller is part of Carrier's HVAC Controls Carrier ComfortID System.

Key Features:

  • Provides Pressure Independent (VAV) control via Proportional Integral Derivative (PID) control
  • Mounts directly onto VAV box damper shaft for terminals up to 9000 CFM
  • Quick and easy commissioning and balancing with automatic self-calibration of airflow transducer
  • Capable of high-speed 38.4 kilobaud communications network operation
  • Integral VAV actuator assembly rated at 35 lb-in. (3.95 Nm) torque with a 90-degree stroke
  • Capable of demand controlled ventilation support with field-installed IAQ sensor
  • Capable of zone humidity control (dehumidification) with field-installed humidity sensor

The zone controller maintains precise temperature control in the space by operating the terminal fan and regulating the flow of conditioned air into the space. The zone controller can support two-position hot water, modulating hot water, or 3-stage electric heat. When linked to a Carrier Linkage System, the zone controller provides numerous features and benefits such as weighted average demand for system operation, intelligent supply air temperature reset, set point averaging, global set point schedule, and occupancy scheduling.

The actuator is suitable for mounting onto a 3/8-in. (9.5 mm) square or round VAV box damper shaft, or onto a 1/2-in. (13 mm) round damper shaft. The zone controller also provides an RJ-14 modular phone jack for the Network Service tool connection to the module via the Carrier Comfort Network (CCN) communications.
