Carrier 349336-764 Draft Inducer Motor Kit for Non-Condensing Furnaces

The Carrier 349336-764 is a genuine OEM draft inducer motor replacement kit designed for non-condensing gas furnaces with 110,000 to 155,000 BTU input capacity. This two-speed inducer motor draws air into the burner assembly and safely exhausts combustion gases through the flue system, ensuring proper furnace operation and safety.

Key Specifications:

• Voltage: 115V AC, 60Hz, single phase
• Dual amperage ratings: 0.44A / 1.52A depending on speed
• Dual speed operation: 2000 / 3000 RPM
• Power consumption: 36W / 103W
• Weight: 5 lbs

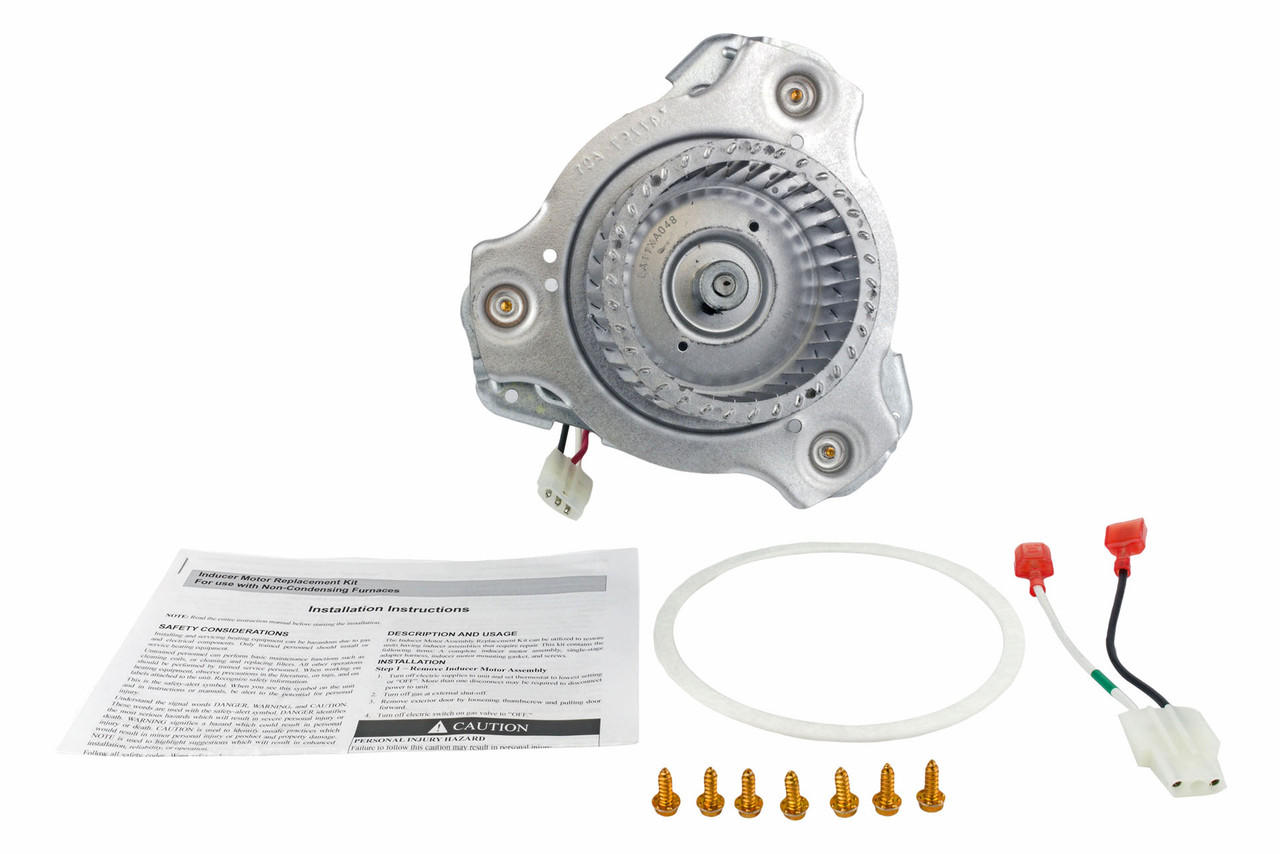

Complete Kit Includes:

• Two-speed inducer motor assembly
• Mounting screws (7 pieces)
• Inducer gasket for proper sealing
• Adapter harness for single-stage furnace compatibility
• Installation instructions (IIK-347822-01)

Compatibility:

• Single-stage furnaces: 110,000 - 155,000 BTU
• Two-stage and variable-speed furnaces: 135,000 BTU
• Replaces older part numbers: 347822-764, HC21ZS128, 326628-764

This factory-authorized replacement kit includes an adapter harness that enables the two-speed motor to work with single-stage furnaces. The included gasket ensures a proper seal to prevent exhaust leaks and carbon monoxide intrusion. Professional installation is recommended to ensure safe operation and compliance with manufacturer specifications.
