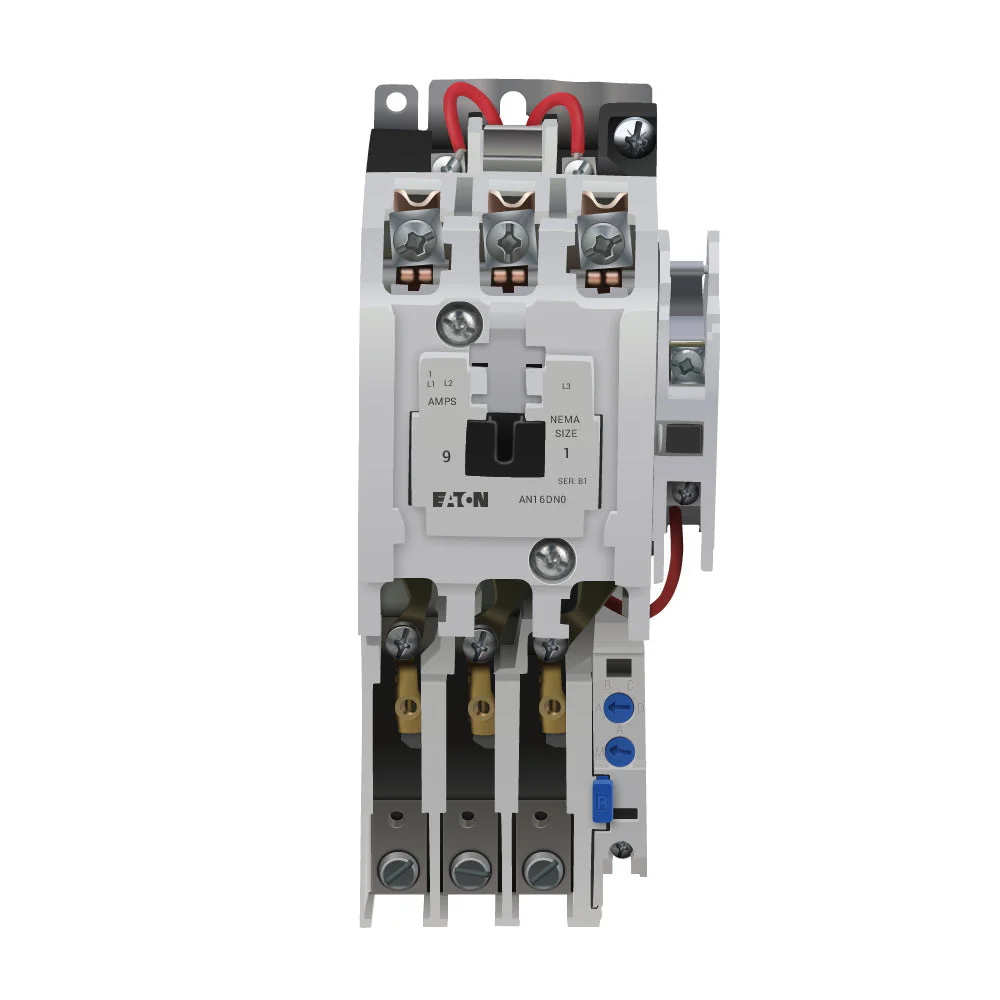

Eaton AN16DN0EB Size 1 Three-Pole NEMA Motor Starter 208V Coil

The Eaton AN16DN0EB is a Freedom Series NEMA-rated motor starter designed for industrial three-phase motor control applications. This Size 1 open-type motor starter features a 208V/60Hz coil voltage and provides reliable full-voltage, non-reversing motor starting and protection.

Key Features:

• Three-pole configuration rated for 27A continuous operation
• 208V/60Hz control coil voltage
• NEMA Size 1 with open enclosure design
• Integrated bi-metallic overload relay with manual or automatic reset
• Includes one normally open (1NO) auxiliary contact
• Motor horsepower ratings: 2 HP at 115V, 3 HP at 230V, 7.5 HP at 208/240V, 10 HP at 480/600V
• Maximum voltage rating of 600V
• Heavy-duty industrial grade construction with up to 20 million mechanical operations
• Interchangeable heater packs with ±24% adjustment range
• Phase loss sensitive with overload trip indication
• UL Listed and CSA Certified

The Freedom Series motor starters combine a magnetically actuated contactor with an overload relay for comprehensive motor protection. Ideal for HVAC systems, pumps, conveyors, and general industrial motor control applications requiring reliable starting and overload protection.
