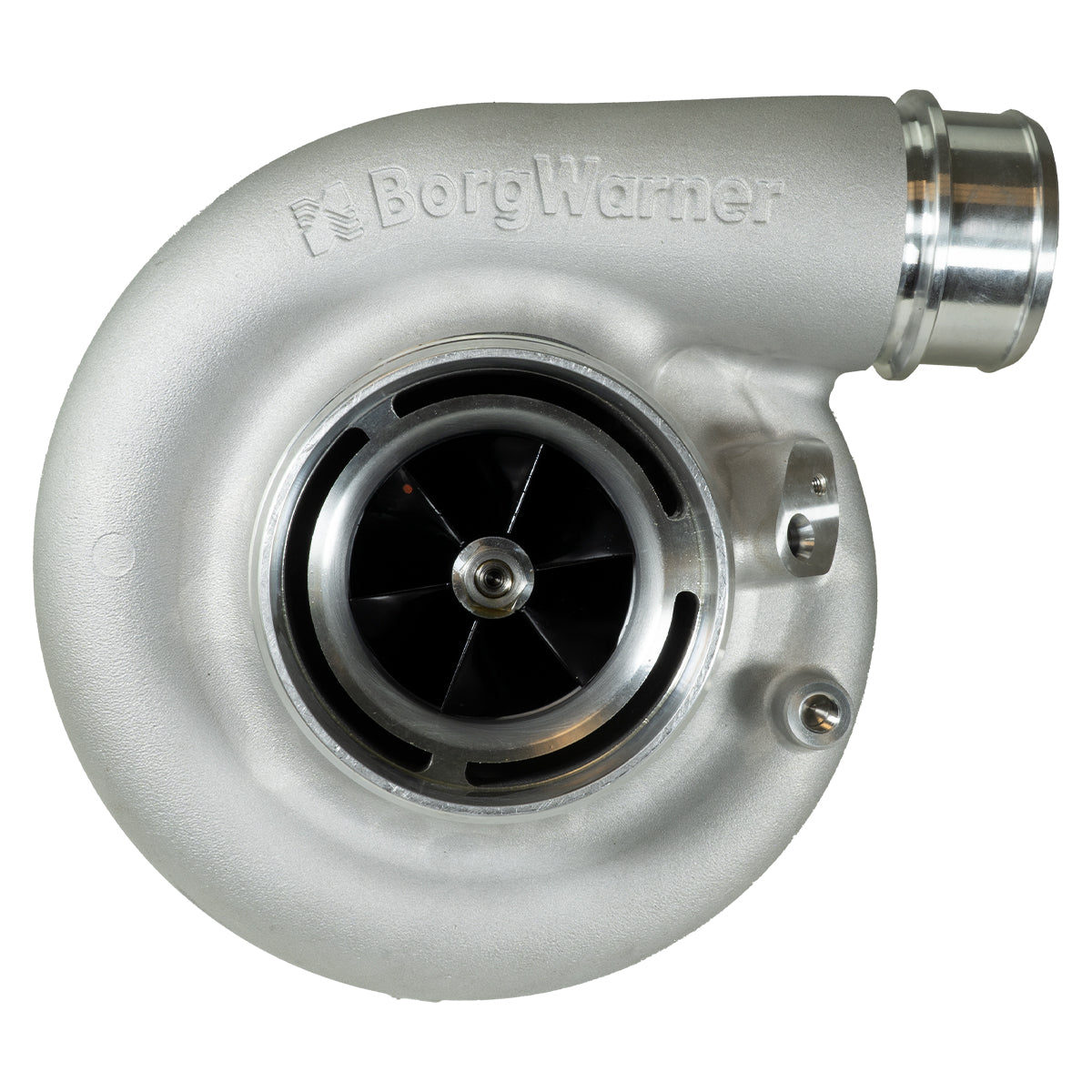

BorgWarner 13807105053 S368 SX-R Turbocharger Supercore 68mm 8880

The BorgWarner S368 SX-R Supercore (part number 13807105053) is a high-performance turbocharger assembly engineered for serious gasoline and diesel performance applications. This advanced supercore features an 88mm compressor wheel with 68mm inducer and an 80mm turbine wheel with 73mm exducer, capable of supporting up to 1,100 horsepower with a maximum flow rate of 103 lb/min.

Key Features:

• Black anodized forged-milled compressor wheel with extended tip technology for superior airflow
• Low rotor inertia design enables quicker spooling and faster boost response
• 360-degree thrust bearing for enhanced durability under extreme boost pressures
• Integrated speed sensor port and pre-machined boost port in compressor cover
• Optimized compressor stage aerodynamics for maximum efficiency
• 4.0-inch inlet and 2.5-inch outlet compressor housing connections
• Interchangeable with existing SX and SX-E turbine housings for easy upgrades
• Maximum turbo speed of 580 m/s

What's Included:

• Complete supercore assembly (compressor cover attached to cartridge)
• All cartridge to turbine housing mounting hardware
• Clamp plates, cap screws, and mounting gaskets

Please Note: This is a supercore assembly only and does not include the turbine housing, speed sensor, or turbine outlet V-band. Turbine housing must be purchased separately. The bearing housing is not water-cooled and features a 1/4-inch NPT oil inlet with standard T3-T4 oil drain. Compatible with various T3 and T4 turbine housing configurations in multiple A/R ratios.

Ideal for competitive drag racing, motorsports, single or twin turbo installations, and high-performance street builds where maximum power output and efficiency are essential.
