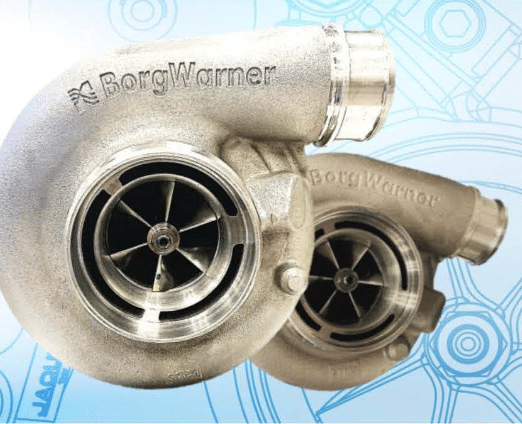

BorgWarner 13767105022 S364SX-R Turbocharger Supercore Assembly 64mm

The BorgWarner S364SX-R (part number 13767105022) is a high-performance turbocharger supercore assembly engineered for gasoline and diesel performance applications. Part of BorgWarner's AirWerks SX-R series, this 64mm turbo represents the latest evolution of the proven SX and SX-E product lines with enhanced aerodynamics and faster response characteristics.

Key Features:

• 64mm forged-milled billet compressor wheel with extended tip technology and black anodized finish
• Flows up to 91 lb/min supporting 900-950 horsepower applications
• Low rotor inertia design delivers quicker spool-up and improved boost response
• 360-degree thrust bearing for increased reliability at high pressure ratios
• Optimized compressor stage aerodynamics with 4.0-inch inlet and 2.5-inch outlet
• Integrated speed sensor port and pre-machined boost port on compressor cover
• 76mm inducer / 68mm exducer turbine wheel (8476 configuration)
• Compatible with existing SX and SX-E turbine housings for easy upgrades
• Made in USA at BorgWarner's Arden, North Carolina facility

What's Included:

• Complete supercore assembly (turbocharger minus turbine housing)
• Turbine housing mounting hardware, clamp plates, cap screws, and mounting gaskets

Not Included: Turbine housing (sold separately), speed sensor, turbine outlet V-band clamp, and oil drain fitting. The bearing housing features a 1/4-inch NPT oil inlet and standard T3-T4 oil drain configuration. This turbocharger is ideal for competitive racing, diesel performance builds, and high-horsepower street applications where reliability and quick spool characteristics are essential.
