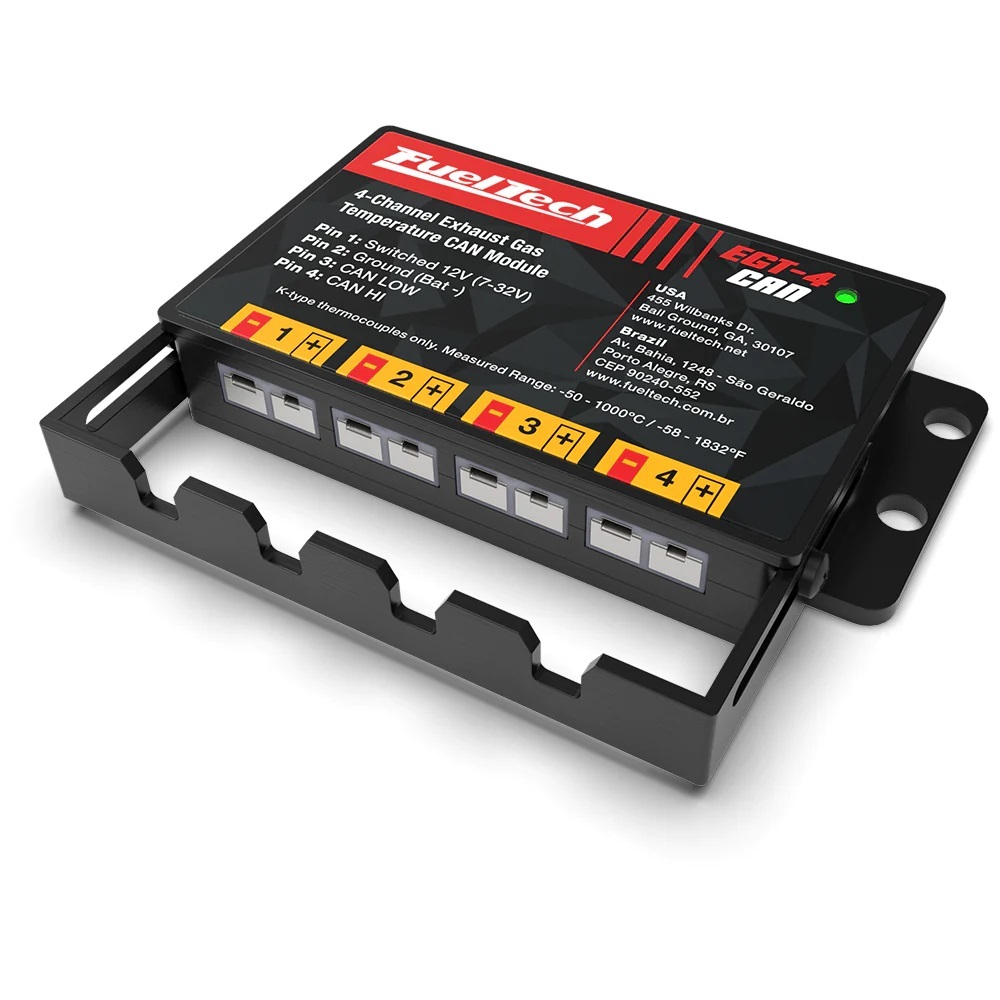

FuelTech 5022007368 EGT-4 CAN 4-Channel Thermocouple Conditioner Module

The FuelTech EGT-4 CAN is a 4-channel EGT controller CAN module, connecting up to 4 type K thermocouples and sending the input signals to the ECU via CAN bus communication. This professional-grade signal conditioner is designed for performance and racing applications requiring precise temperature monitoring across multiple points.

Key Features:

• Compatible with any type K thermocouple (grounded junction or not)
• Can be used to read EGTs, CHTs, oil, air, water or any other temperatures using type K thermocouples
• Acts as an input expander, removing up to 4 type K thermocouple inputs from the white ECU input channels by allowing them to communicate via the CAN bus network
• Up to 4 EGT-4 modules may be used in the same installation, making up to 16 input channels available for additional data acquisition
• Compatible with FuelTech ECU's including the FT450, FT550, FT550LITE, FT600, FT700, and FT700PLUS

Specifications:

• Inputs: 4 type K thermocouple inputs
• Outputs: 1 CAN
• Module Dimensions: 4.33 x 2.28 x 0.7 inches

The EGT-4 CAN module is ideal for monitoring exhaust gas temperatures, cylinder head temperatures, and other critical temperature points in high-performance engine management systems. By offloading temperature monitoring to the CAN bus network, you free up valuable ECU input channels for other sensors while maintaining accurate, real-time temperature data.
