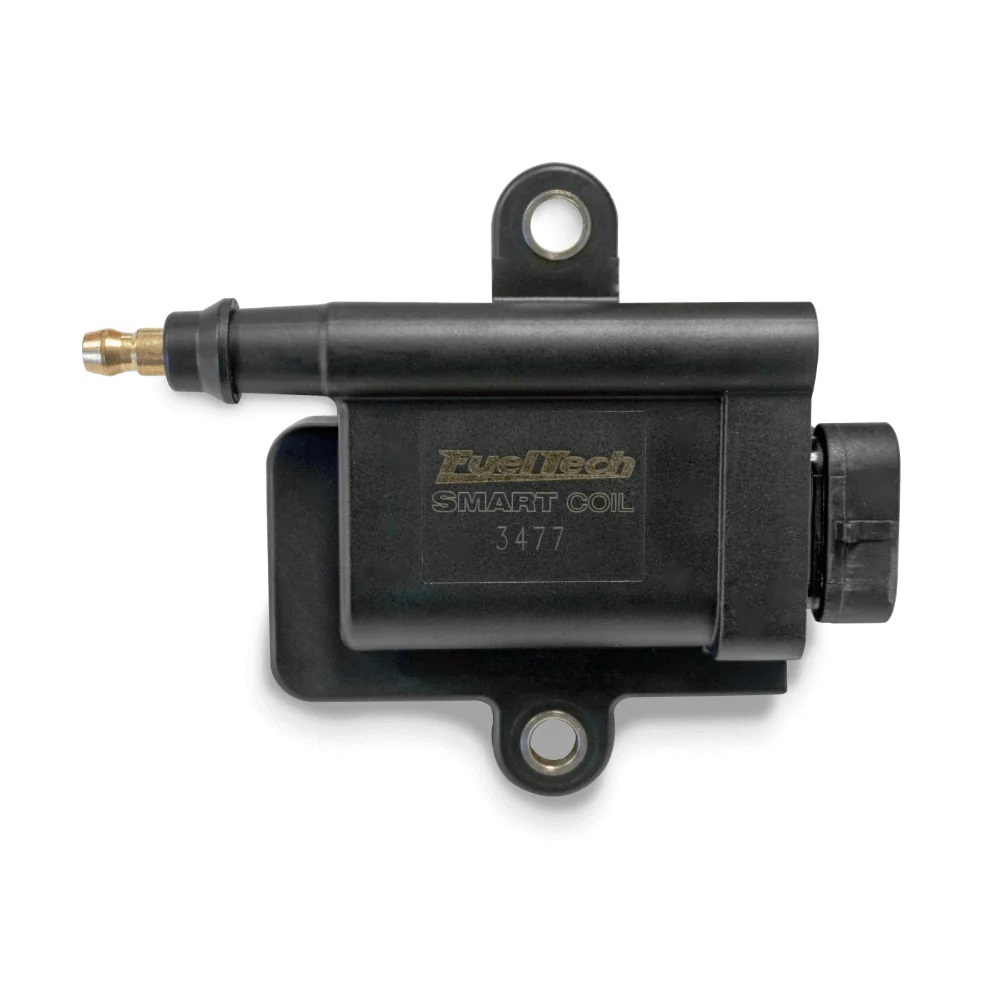

FuelTech 5001100012 IGN1A Inductive Smart Coil High Performance Ignition Coil

The FuelTech IGN1A Inductive Smart Coil is the perfect ignition coil for high performance applications, like racing. Designed for demanding racing environments, this coil features a built-in igniter for direct connection to any FuelTech ECU, eliminating the need for an external ignition module.

Key Performance Specifications:

• Up to 175mj of energy and a long spark discharge time of 3.2ms
• 40,000V output with male HEI connector
• At 9ms of dwell time these coils will consume 20 amps each while sending 150mA of current to the spark plug
• At 5ms they will consume 8 amps each
• 40 Amp fuse recommended for every 4 coils

Applications and Features:

• Provides great idle characteristics as well as the power to needed run your engine with high cylinder pressures from boost, nitrous injection or even high strung naturally aspirated applications.
• Max dwell can be up to 9ms for short periods of time to extract the maximum output from the coil when under high boost or load. Under normal driving conditions 5ms of dwell is recommended.
• Compatible with Holley Terminator X, HP and Dominator ECUs, as well other EFI systems that can drive smart ignition coils
• Resistor style spark plugs are recommended when using inductive smart coils

Installing IGN1A coils with one of FuelTech's PRO550 or PRO600 harnesses is a breeze with their plug-and-play V8 smart coil harness, giving you a complete wiring solution for both your engine management and high performance ignition system. Sold individually.

Note: This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
