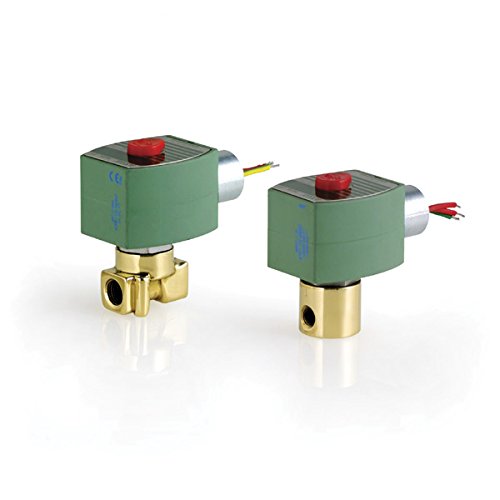

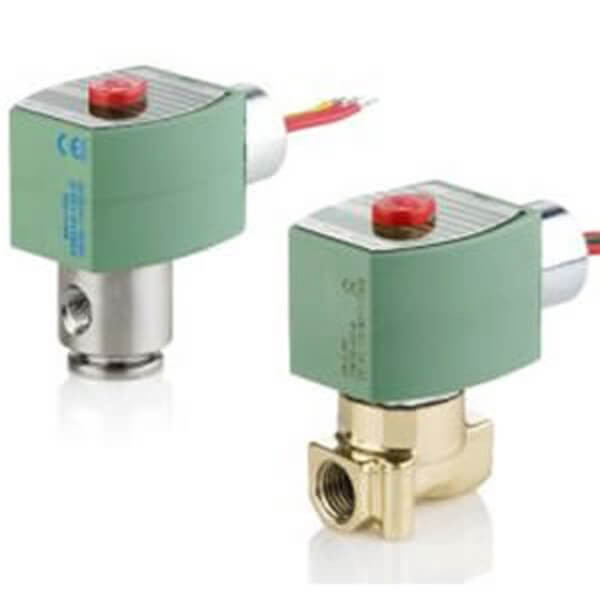

Asco 8262H232 Solenoid Valve NPT Normally Closed Brass - 2-Way 1/4 120VAC

The Asco 8262H232 is a 2-way general service solenoid valve featuring rugged brass construction designed for reliable fluid control in demanding industrial applications. This direct acting, normally closed valve features a 1/4" NPT female port connection with a 1/8" orifice, 0.35 Cv flow coefficient, and Buna-N sealing, making it suitable for a wide range of media including air, inert gas, water, light oil, and fuel applications.

Key Features:

• Maximum pressure ratings of 340 psig for air, 300 psig for water, and 215 psig for light oil at 131°F
• Low power consumption at 10.1W with Class F coil insulation
• NEMA 4X rated high-integrity enclosed coil for moisture and corrosion resistance
• Standard operating temperature down to -13°F
• No minimum operating pressure required, ideal for liquid, light oil, and air/inert gas service
• Compact miniature design for space-constrained installations

The Asco 8262 Series valves are constructed to withstand harsh environments and feature tight shutoff capabilities for automated fluid control applications. These valves provide long service life and low internal leakage, making them ideal for industrial automation, process control, and pneumatic systems.
