S&S Cycle 330-0107 Gear Drive Camshaft Kit for Harley Twin Cam - 583 1999-2006

The S&S Cycle 583 Gear Drive Camshaft Kit delivers strong low-end torque and horsepower for Harley-Davidson Twin Cam engines. Optimized for Softail and Dyna models, this cam produces power where you need it most: 1500-5000 rpm. With .583-inch valve lift on both intake and exhaust, this performance cam provides a noticeable increase in power throughout the entire rpm range.

Gear Drive Advantages:

• Increases valve timing accuracy by eliminating timing chain lash and loosely-fit stock chain
• Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible
• No tensioner shoes to wear out or fail
• Rock-solid reliability for high-performance applications

Technical Specifications:

• Intake Duration: 204 degrees, Exhaust Duration: 262 degrees
• Intake and Exhaust Lift: .583 inches
• Fits 1999-2006 Big Twin models except 2006 Dyna
• 1999-2004 Twin Cams require higher lift valve springs

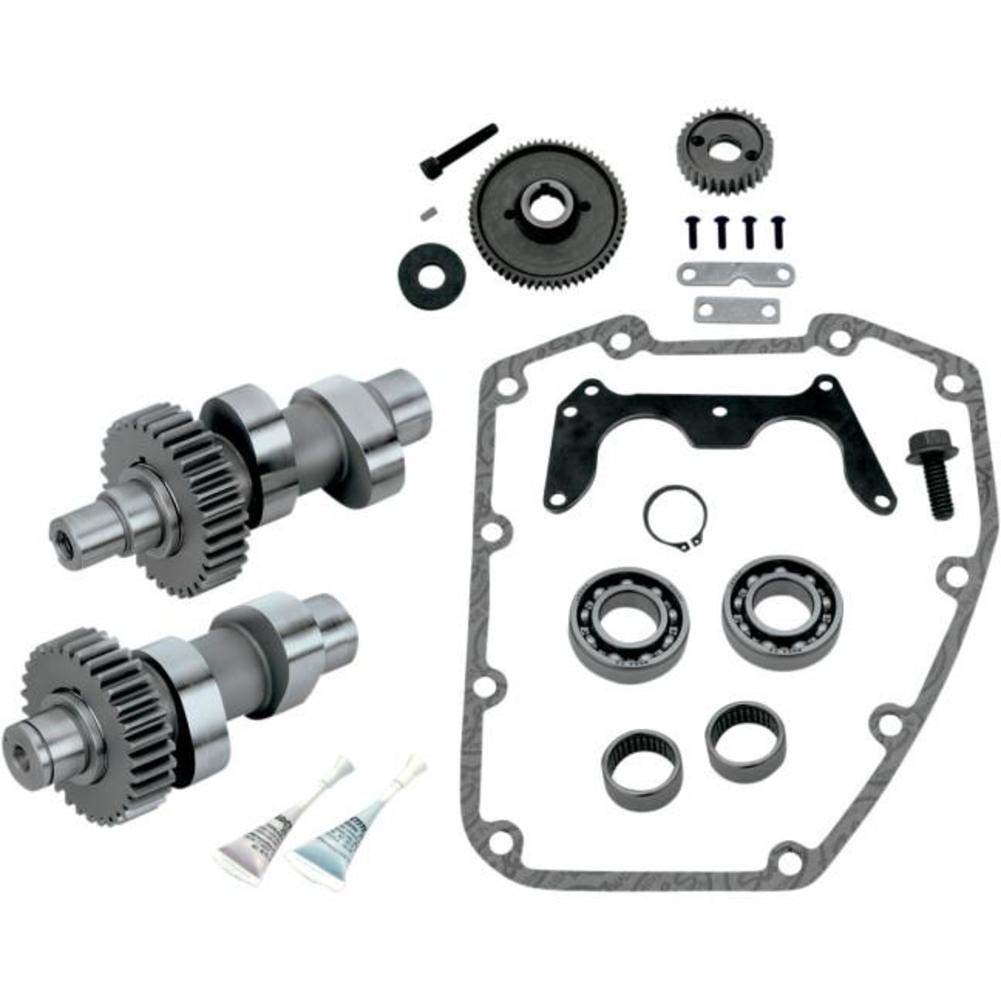

Complete Kit Includes:

• Camshafts, inner gears, outer drive gears, inner and outer bearings, gasket, and instructions

Installation Requirements:

• Material must be removed from the inner surface of the stock gear cover to install
• A hydraulic press and other professional-level tools are required for installation
• S&S recommends using adjustable pushrod/cover kit (sold separately)
• Cam bearings and gaskets must be replaced when installing new cams
• Professional installation recommended

Important Notes:

• Due to inherent characteristics of gear drives, more valve train noise may be heard
• Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance
• Not recommended for engines with compression ratios greater than 10:1
• Not legal for sale or use on California or EPA pollution-controlled motorcycles

Ideal for riders seeking a reliable performance upgrade with improved throttle response and increased power delivery throughout the usable rpm range.
