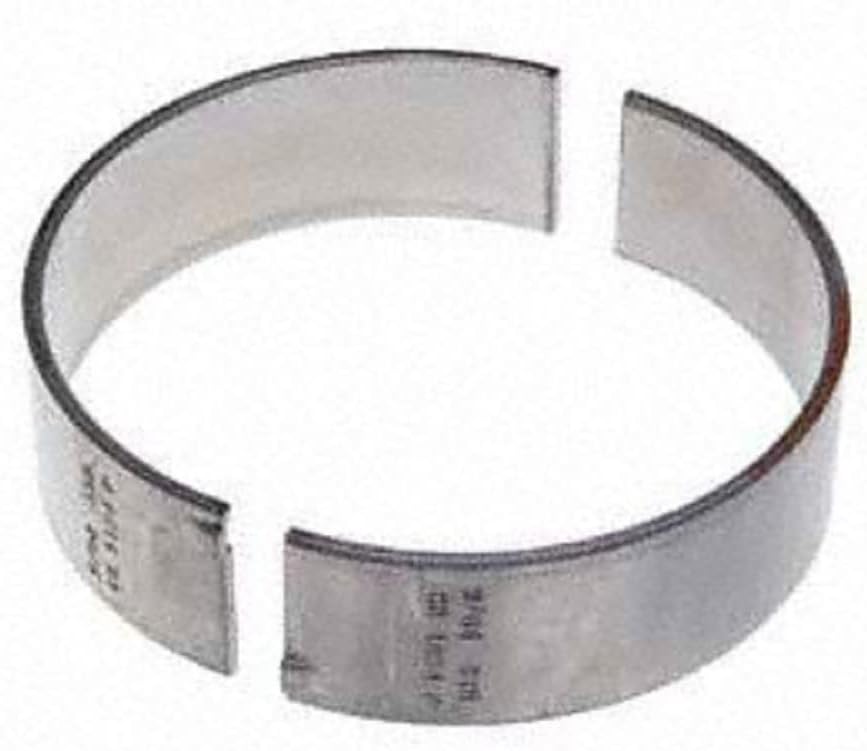

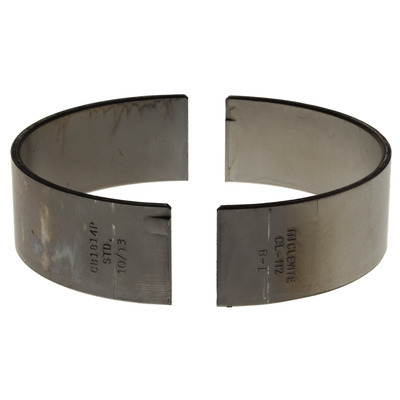

Perfect Circle CB1814P P-Series Connecting Rod Bearing - Ford 6.0L Powerstroke Diesel

The Perfect Circle CB1814P is a high-performance P-Series connecting rod bearing designed for Ford 6.0L Powerstroke diesel engines (2003-2007). Part of the proven Clevite 77 bearing family, this standard-size bearing delivers reliable performance for engine rebuilds and demanding applications.

Advanced Tri-Metal Construction:

• TM-77 tri-metal design with hardened steel backing for superior strength
• Cast copper-lead alloy intermediate layer to withstand heavy loads
• Electroplated babbitt overlay on running surface for excellent conformability
• Reduced overlay thickness prevents overlay fatigue (hen tracking)

Key Features:

• High crush factor for maximum bearing retention
• Greater eccentricity to compensate for rod bore distortion at high RPM
• Hardened steel back provides added strength and resistance to fretting
• Standard size with 0.001 to 0.004 inch vertical oil clearance
• Maximum length of 0.831 inches with 0.078 inch wall thickness
• Shaft diameter range: 2.716 to 2.717 inches

Perfect Circle P-Series bearings are ideal for heavy-duty diesel applications, motorsports, street performance, and situations where more demanding use is anticipated. The tri-metal design offers superior load capacity compared to bimetal bearings, making it an excellent upgrade for OE applications. Sold individually.
