Baja Designs 448065 S8 Behind Grille LED Light Kit 2021+ Ford Raptor

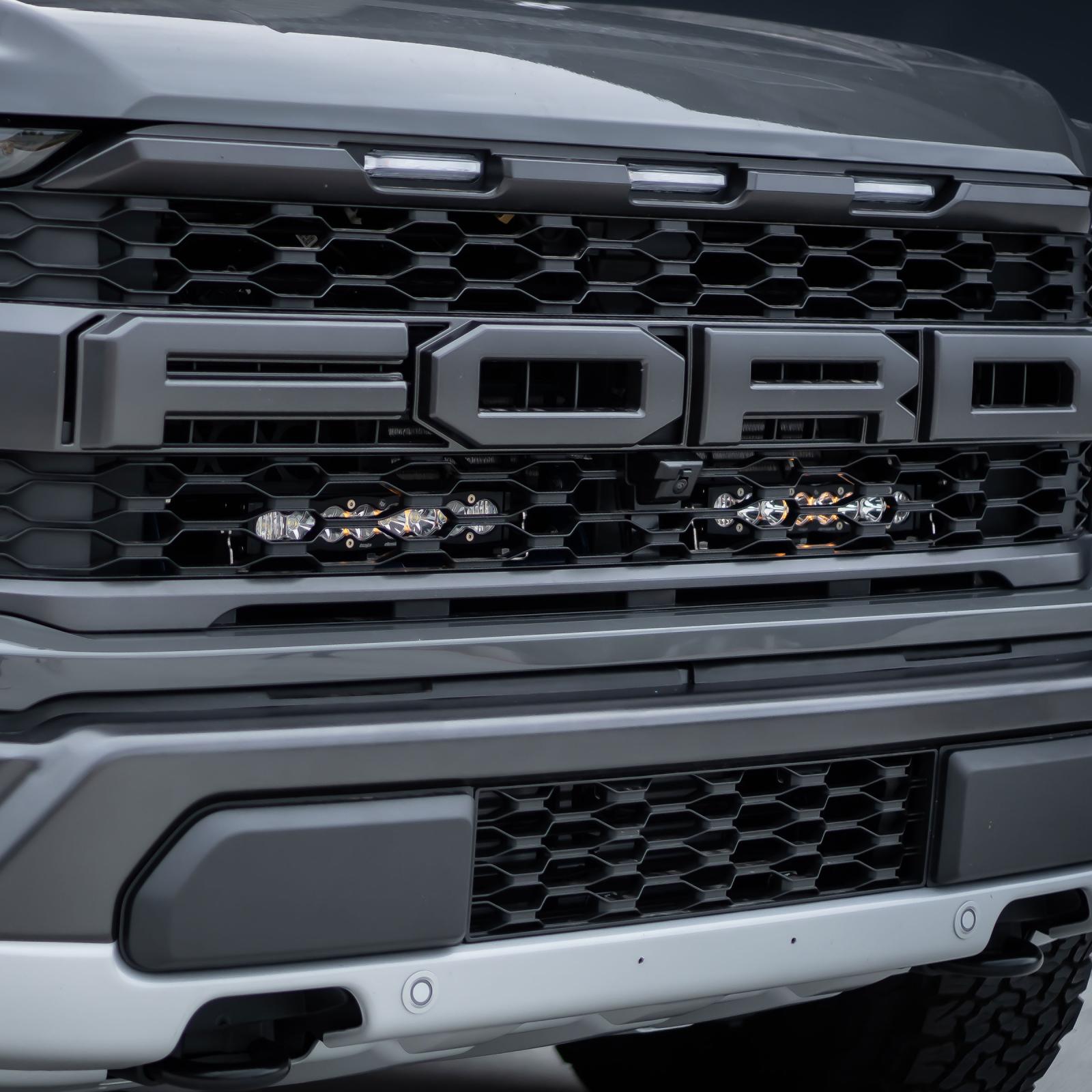

The Baja Designs S8 Behind the Grille Kit is engineered specifically for 2021-on Ford Raptor trucks, combining stealth installation with maximum performance. This complete lighting system delivers professional-grade illumination while maintaining the truck's factory appearance with lights hidden behind the grille.

Key Features:

• Dual S8 10-inch LED light bars producing 6,324 raw lumens each for exceptional trail and off-road visibility
• Driving/Combo beam pattern for optimal distance and spread illumination
• Amber backlit feature matches factory marker lights for enhanced style and visibility
• Custom-designed mounting brackets for precise behind-grille fitment
• Plug-and-play upfitter harness integrates directly with factory upfitter switches
• ClearView optic technology delivers light exactly where needed without scatter
• MoistureBlock sealed construction ensures waterproof, submersible performance
• 5000K daylight color temperature reduces eye fatigue and provides natural color rendering
• CopperDrive LED management system safely operates LEDs at 100% output
• uService design with replaceable lenses and optics for long-term serviceability

Technical Specifications (per light bar):

• Output: 6,324 raw lumens
• Power consumption: 57.96W / 4.2A
• Length: 10 inches
• Lens: Clear
• Pattern: Driving/Combo

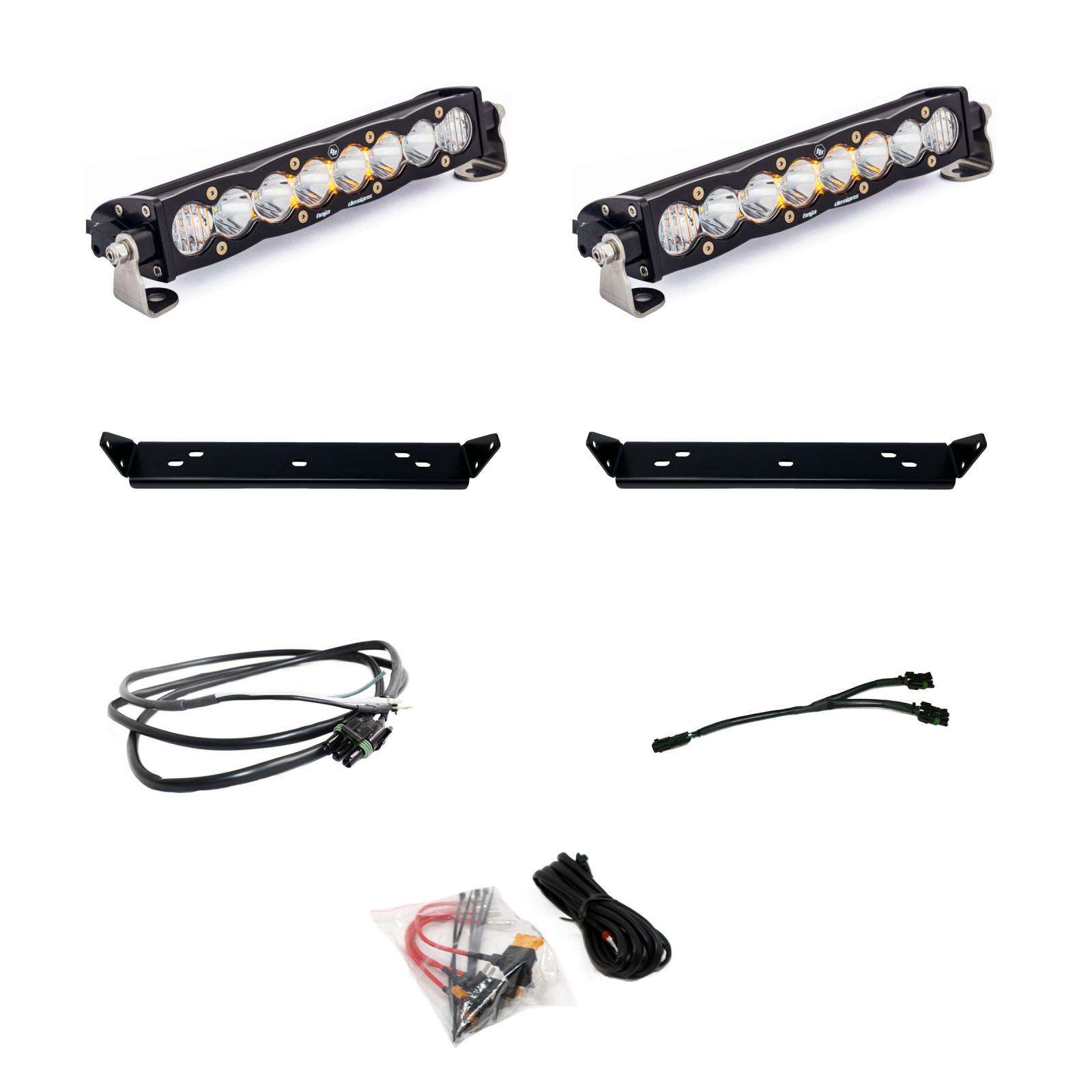

Complete Kit Includes:

• (2) S8 10-inch LED light bars in Driving/Combo pattern with clear lens
• (2) Custom behind-grille mounting brackets
• (1) Splitter wiring harness
• (1) Upfitter wiring harness for factory switch integration
• (1) S8 backlit harness for amber backlighting
• Complete mounting hardware

This kit features simplified installation with plug-and-play wiring that connects to Ford's factory upfitter switches, eliminating the need for additional switch panels or complex wiring modifications. Backed by Baja Designs' 30-day satisfaction guarantee and limited lifetime warranty.

Important Note: This kit is not compatible with adaptive cruise control relocation kits.
