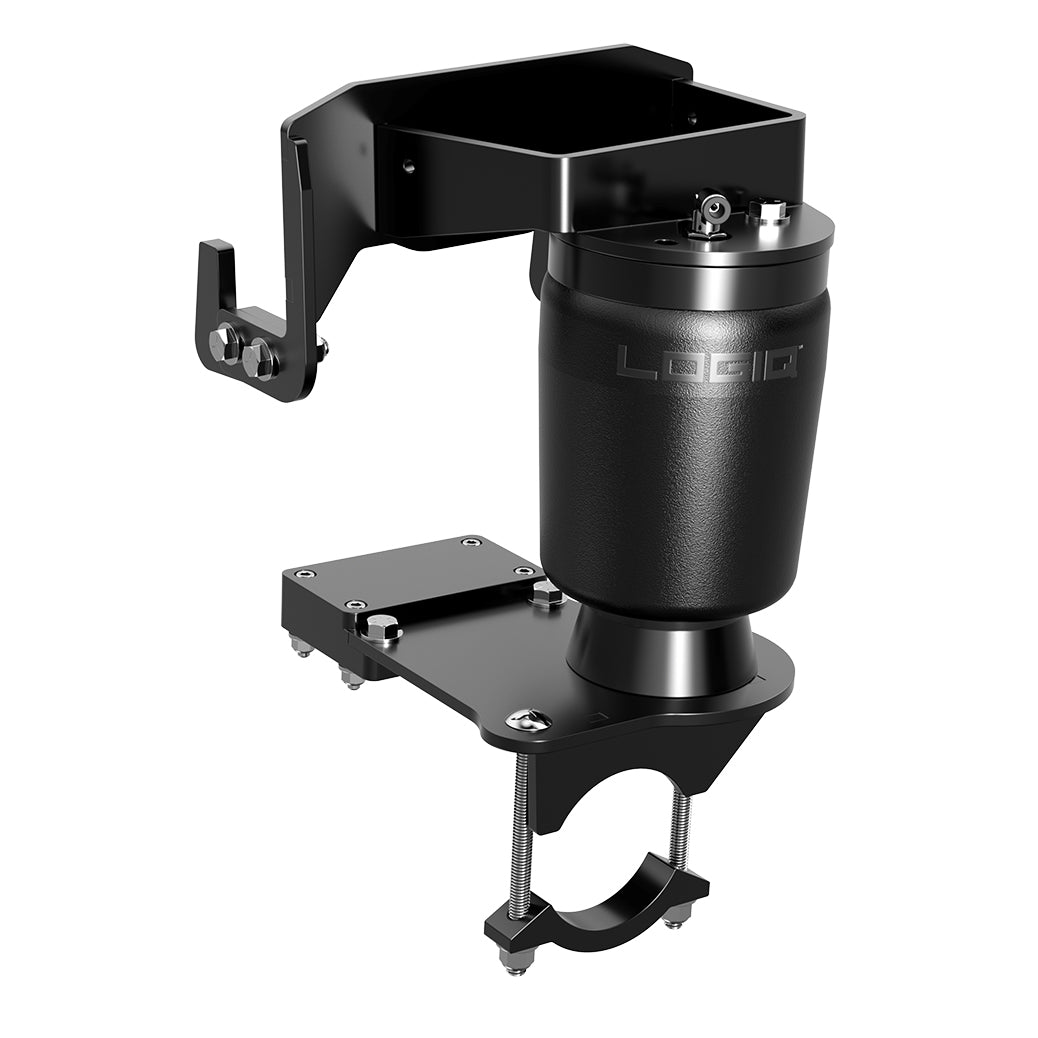

Logiq 88-31190 Air Spring Kit Load Leveling Helper Springs for 2019+ GM 1500 Trucks

The Logiq 88-31190 is a high-performance air spring kit designed specifically for 2019 and newer GM 1500 trucks, featuring a durable single air sleeve configuration that easily mounts over the axle to provide exceptional load support for your half-ton pickup. This ReadyAIR product brings cutting-edge LOGIQ air spring technology into the 21st century, providing the ultimate blend of ride quality and load stability in a 100% factory assembled and ready-to-install package.

Key Features:

• Provides up to 7,200 lbs of load support (dual spring models)
• Provides maximum suspension travel while still utilizing your factory bump stops
• LOGIQ Air Springs feature a 1.6Hz natural frequency for superior ride quality compared to competitor products at 2.5Hz
• Compatible with a wide variety of OEM and aftermarket 5th wheel hitches
• Simple clamp-around bracket designs combined with 100% pre-assembly cuts installation time in half
• Built-in features that locate off the factory frame and leaf springs guarantee proper fitment and operation for every install
• Includes Limited Lifetime Warranty and FREE ReadyGUARD 5-year/60,000 mile Powertrain Warranty

What's Included:

• Driver side air spring assembly
• Passenger side air spring assembly
• Complete hardware kit
• Manual inflation kit with air line, schrader valves, and zip ties
• Heat wrap kit for tailpipe protection

Important Compatibility Notes:

• Does not fit ZR2 or AT4X models
• Does not fit 3.0L diesel trucks paired with single exit exhaust
• Trucks equipped with factory rear height sensors require additional part number 88-31190-1
• AT4/Trail Boss or trucks with 1-3" rear lift require additional Spacer Kit 88-91003

Confirmed 5th Wheel Hitch Compatibility: B&W BWGNRK1019, B&W BWRVK2504, REESE RP56015-53, DEMCO DM8552034-71, DEMCO 8553019-12, DEMCO DM8551011

This air spring kit can be paired with optional LOGIQ AirIQ Air Management Packages for advanced control via smartphone app or remote control, allowing for independent left/right adjustment and automatic leveling capabilities. The manual inflation kit is included as standard for those who prefer simplicity without electronics.
