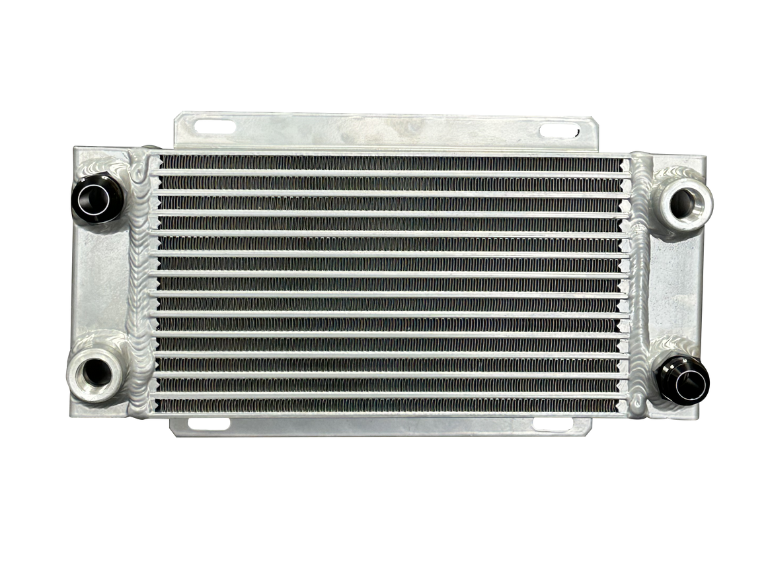

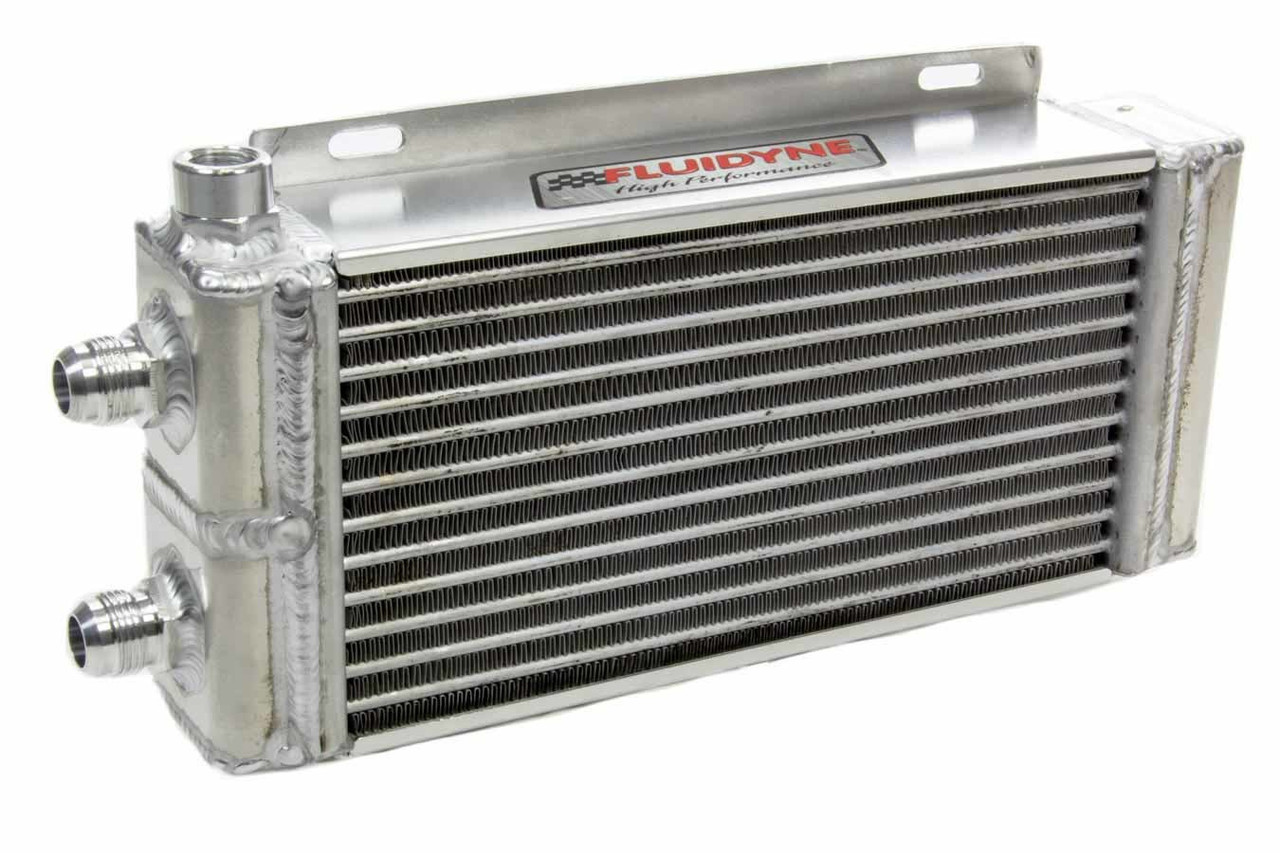

Fluidyne High Performance OGEN.DB-30417 Dual-Pass Bar-Plate Oil Cooler with 12AN Fittings

The Fluidyne OGEN.DB-30417 is a dual-pass bar-plate oil cooler from the 416/417 series, measuring 15 inches x 6.375 inches x 3 inches with 12 AN fittings. Brazed in a vacuum furnace, this construction ensures zero leaks and the most robust bond conceivable between the tube and heatsink. This cooler features -12 AN fittings for inlet/outlet and a 1/2" NPT fitting for temperature or pressure sensor.

Key Features:

• 15-row, double-pass configuration for maximum heat dissipation
• Vacuum furnace-brazed bar-plate construction with leak-free performance
• Exclusive fin design with densely packed structure for minimal pressure loss
• (2) 12 AN male fittings and (1) 1/2" NPT female auxiliary port
• Four mounting holes on flanges for easy installation
• All-aluminum construction for durability
• Universal fitment for custom applications

Fluidyne oil coolers stand tall as the victors of thousands of races over the last 30 years. These cutting-edge bar and plate coolers are meticulously crafted through countless hours of research and development, born from the demanding tests of both wind tunnels and race tracks. The compact design and high-performance capabilities make this cooler ideal for racing, performance street vehicles, and demanding applications requiring superior oil temperature management.
