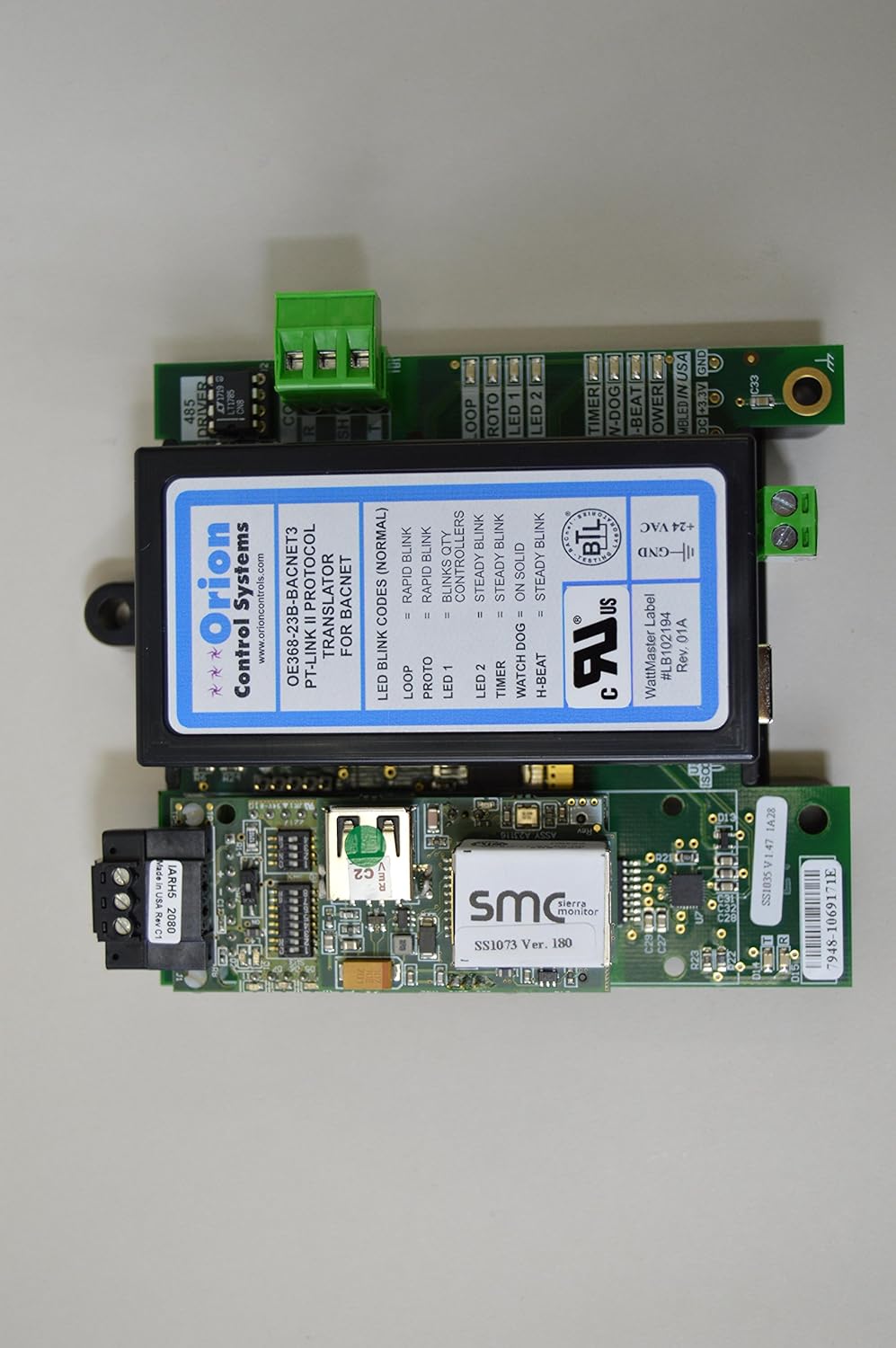

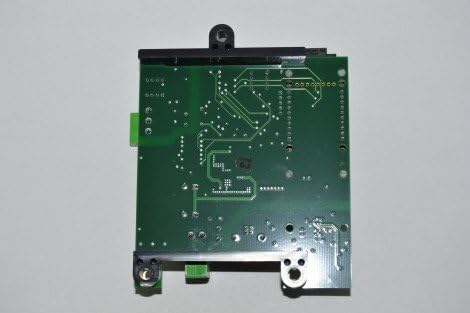

Aaon ASM07272 PT-Link II BACnet Interface Board with 120" Crossover Cable

The AAON ASM07272 is a PT-Link II (Protocol Translator) BACnet interface board designed to provide bi-directional translation of data and information between BACnet building automation systems and AAON Orion HVAC unit controllers. This industrial-grade control board facilitates communication and control within building automation systems employing the BACnet protocol.

Key Features:

• Compliant with BACnet MS/TP, BACnet IP, and BACnet/SC protocols for seamless integration into existing building automation networks
• Operates at multiple baud rates including 9600, 19200, 38400, or 76800 baud as required by the specific protocol
• Provides values from Orion controller points to BACnet devices and allows BACnet devices to modify point values using standard protocol write services
• Includes PT-Link II board with 120-inch Ethernet crossover cable
• Features dipswitch configuration for easy setup
• Operates on 24V power supply
• CE and UL certified for safety and reliability

Applications:

The OE368-23B-BACNET4 board is ideal for commercial buildings and facilities, industrial plants and manufacturing environments, educational institutions, and healthcare facilities. It enables remote monitoring, control, and data acquisition of HVAC systems, and allows devices to place Orion controllers into occupied or unoccupied operation.

Replacement Information:

This ASM07272 board replaces previous models including OE368-21-BACNET, OE368-22-BACNET, OE368-23-BACNET, OE368-23B-BACNET2, and OE368-23B-BACNET3. Designed as an exact drop-in replacement to retain published system efficiencies, ratings, and certifications.
