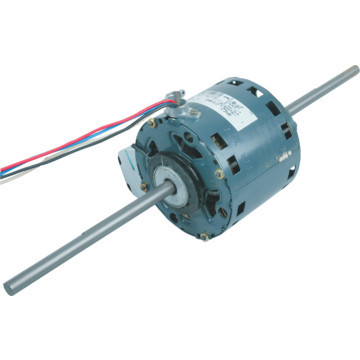

Firstco M24 1/4 HP Replacement Motor 3-Speed 120V for Fan Coil Units

The Firstco M24 is a high-quality replacement motor designed specifically for Firstco HBC series hydronic fan coil units. This 1/4 horsepower motor operates at 1,625 RPM and features a 5.0-inch diameter housing, making it an ideal replacement component for ceiling-concealed HVAC applications.

Key Specifications:

• 1/4 HP (0.25 HP) power output
• 120 VAC, 60 Hz, single-phase operation
• 3.3 amp draw
• 1,625 RPM motor speed
• Three-speed operation for flexible air control
• 5/370 capacitor size (capacitor required for operation)

Construction Features:

• 5.0-inch motor diameter with 4-inch motor length
• Dual shaft configuration measuring 7.5 x 0.5 x 7.5 inches
• Horizontal shaft angle for proper fan coil installation
• Open ventilation design
• Permanently lubricated with built-in thermal overload protection

Applications:

This motor is specifically designed for use in 10PHBC and 25/30CDX-HW fan coil units. It is compatible with Aquatherm 2.5 Ton HBC Series fan coil units, providing reliable performance in residential and light commercial hydronic heating and cooling systems.

The Firstco M24 replacement motor ensures continued efficient operation of your fan coil system with factory-specified performance characteristics. Its three-speed design allows for precise airflow control to match heating and cooling demands.
