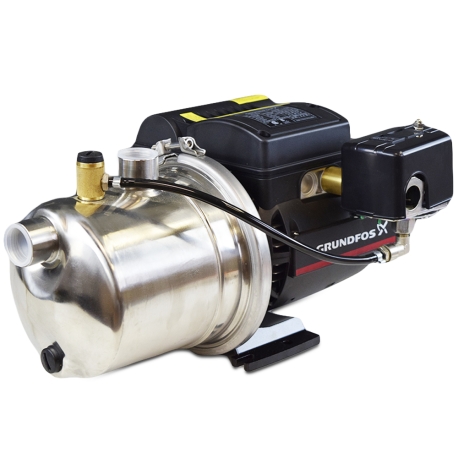

Grundfos 99463939 1/2 HP Stainless Steel Shallow Well Jet Pump 115/230V

The Grundfos 99463939 JP 18-05-154 is a robust and efficient shallow well jet pump designed for a variety of water supply applications, particularly in residential settings. Its stainless steel construction ensures durability and resistance to corrosion, making it suitable for long-term use in challenging environments.

Key Features:

• 1/2 horsepower motor capable of delivering a flow rate of up to 18 gallons per minute (GPM) and a maximum head lift of 154 feet
• Dual voltage operation (115V or 230V) providing flexibility for different electrical setups
• Self-priming after initial fill with suction lift capability up to 26 feet
• Built-in ejector complete with clean-out port to clear blockages from nozzle
• Ceramic-carbon bellows mechanical seal ensures trouble-free operation
• Totally enclosed fan-cooled motor design for quiet operation with built-in thermal overload protection
• 1 inch NPT connections on both inlet and outlet
• Factory pressure switch setting at 30/50 PSI

Technical Specifications:

• Maximum flow rate: 17.6 GPM with maximum pump head of 154 feet
• Maximum working pressure: 87 PSI
• Fluid temperature range: 32°F to 104°F
• Power input: 930 watts
• Technopolymer impeller with end suction, top discharge arrangement
• Replaces old part number 97855075

Perfect for pressure boosting from tanks and wells in residential, agricultural, and light commercial applications. Shallow well pumps are designed for applications of 25 feet or less in depth.
