Dorman 697-507 Differential Pinion Flange Kit with Seal and Nut

(Ford F-150 1990-2014, Mustang 2001, 2003-04, 2011-14, Ranger 1990-2010, Explorer 1991-2010, Expedition 2003-06, F-250 1997-2000, Bronco 1983-96 + 19 more models)

Manufacturer

Picture for manufacturer Dorman

Part Number

697-507
13 reviews
Sale Price

$31.71

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

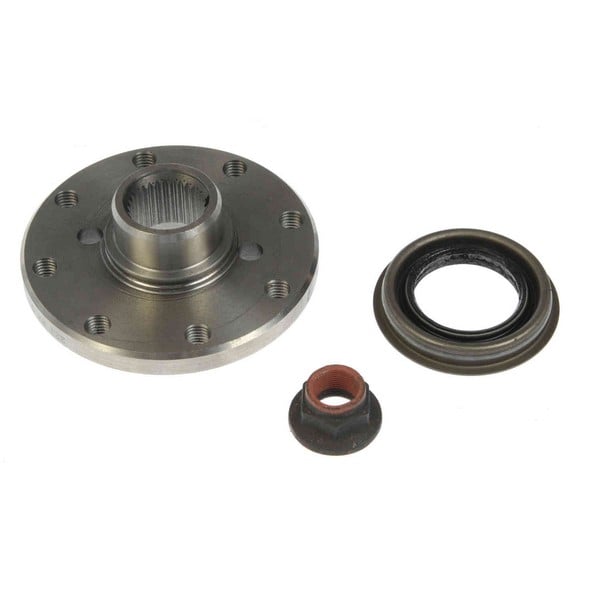

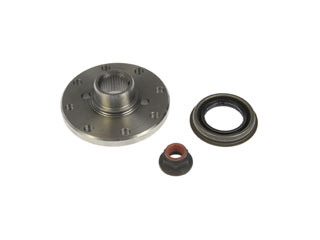

The Dorman 697-507 Differential Pinion Flange Kit provides a complete solution for differential pinion flange replacement. This kit includes the pinion flange (yoke), pinion seal, and pinion nut—everything needed for a proper repair in one convenient package.

Key Features:

  • Complete kit includes pinion flange, seal, and nut for comprehensive repair
  • Direct replacement for worn or damaged differential pinion flanges
  • Engineered to meet or exceed OEM specifications for reliable performance
  • Precision-manufactured for proper fit and function
  • Saves time by eliminating the need to source components separately

This pinion flange kit is designed to restore proper driveline operation by replacing the component that connects the driveshaft to the differential. The included seal helps prevent gear oil leaks, while the pinion nut ensures proper preload and secure installation. Ideal for repair shops and DIY mechanics performing differential service or addressing pinion seal leaks.

Products specifications

Fits

Ford F-150 1990-2014, Mustang 2001, 2003-04, 2011-14, Ranger 1990-2010, Explorer 1991-2010, Expedition 2003-06, F-250 1997-2000, Bronco 1983-96, Crown Victoria 1992-2010, Explorer Sport Trac 2001-10, E-150 1983-2006 + 16 more models

Feature - Benefit 1

Engineered from cast iron for long-lasting durability

Feature - Benefit 2

Comes with all installation components for a trouble-free repair

Feature - Benefit 3

Direct replacement for a proper fit

Feature - Benefit 4

Vehicle try-on testing conducted on this part ensures trouble-free performance

Flanged End

Yes

Spline Count

30

Flange Material

Steel

Flange Length

5.04

Cover Bolt Quantity

8

Bearing Cap(s) Included

No

Bearing Strap(s) Included

No

Spline Inside Diameter

1.626 in

FLANGE Thickness

0.531

Mounting Hole Diameter

0.472

Width

5.04

Package Contents

1 Differential Pinion Yoke Flange; 1 Seal; 1 Nut

Flange Outside Diameter

5.04
