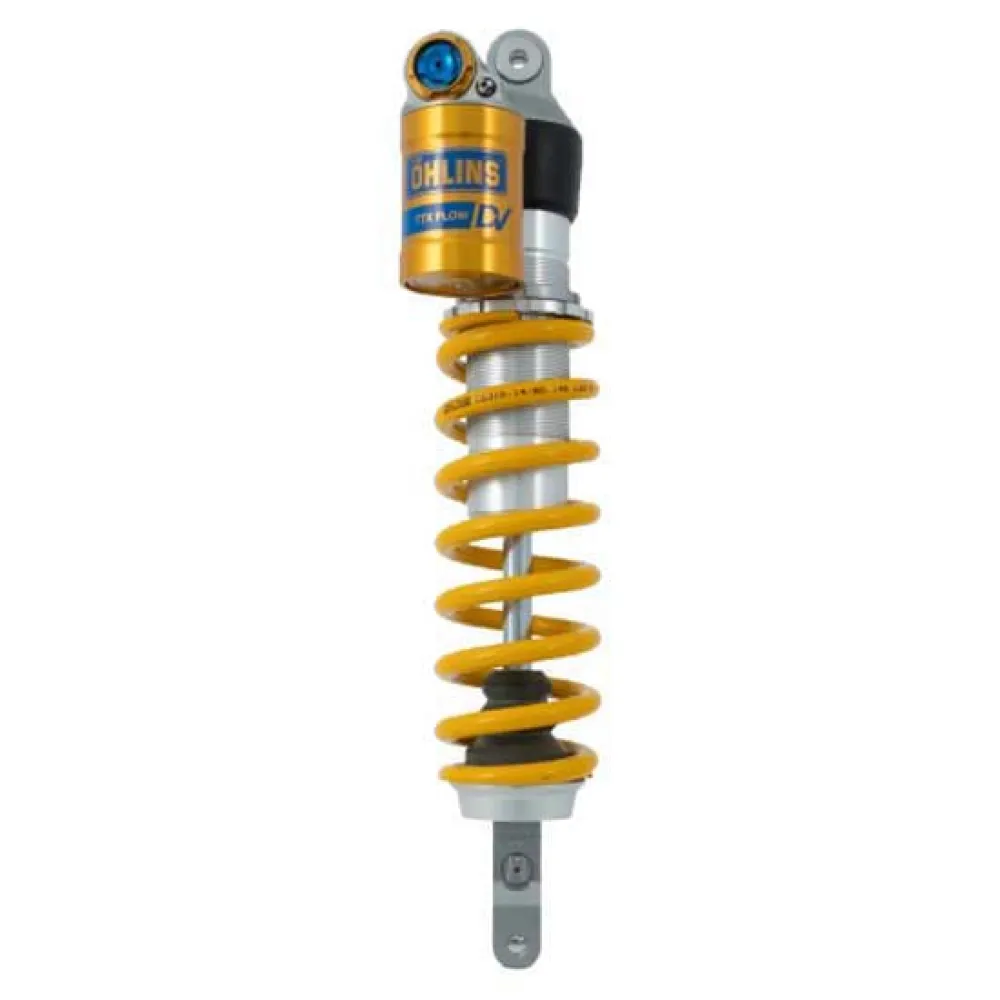

The Ohlins DMX 0210 is a premium TTX46 Flow DV rear shock absorber engineered specifically for the 2021-2023 Honda CRF 450R. This state-of-the-art shock represents years of development in motocross and off-road damping technology, delivering exceptional performance across all riding conditions.
Advanced TTX Flow DV Technology:
The DMX 0210 features Ohlins' revolutionary twin-tube TTX (Twin Tube Technology) design combined with Flow DV (Dual Valve) technology. This sophisticated system precisely controls oil movement during both compression and rebound, providing consistent and predictable damping performance even under the most demanding conditions. The shock eliminates the traditional compromise between bottoming resistance and traction, delivering optimal performance in both areas simultaneously.
Key Features:
- 46mm piston diameter with 16mm high-strength shaft for exceptional durability
- 58mm piggyback reservoir for increased oil capacity and fade resistance
- 450mm overall length with 131mm stroke
- Externally adjustable low-speed and high-speed compression damping
- Adjustable low-speed rebound damping for precise tuning
- Spring preload adjustment capability
- Patent-pending FLOW valve dynamic control for superior bottoming resistance
- New compression valve interface for optimal pressure control
- Improved rebound needle and shaft jet design
- Nitrogen gas charged for consistent performance
- Unique spring clip design for easy spring changes
- High-quality aluminum construction with signature Ohlins gold anodizing
Performance Benefits:
The high-speed compression adjuster allows riders to adapt their suspension setup to virtually any track condition or riding style, from smooth hardpack to rough, technical terrain. The improved small bump sensitivity enhances traction and comfort while maintaining excellent chassis stability and control at speed.
Important Notes:
This shock absorber is delivered without a spring, which must be ordered separately based on rider weight. Compatible spring series include 06310-XX and 06451-XX. Recommended oil is Ohlins 01304-XX. The shock can be customized with rider weight-specific setup for optimal performance.
Model T46PR1C2W is designed as a direct replacement for 2021-2023 Honda CRF 450R models and represents the pinnacle of off-road rear suspension technology.
