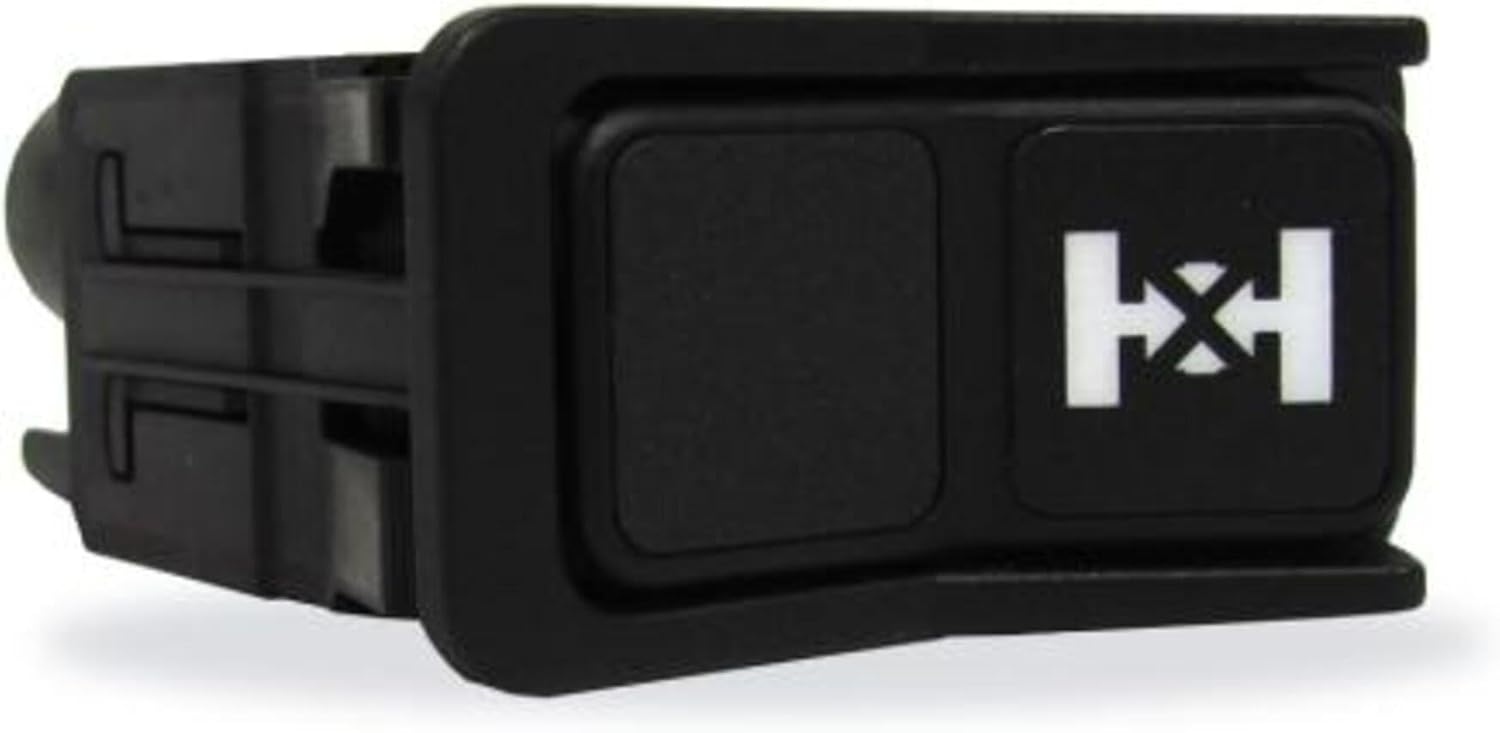

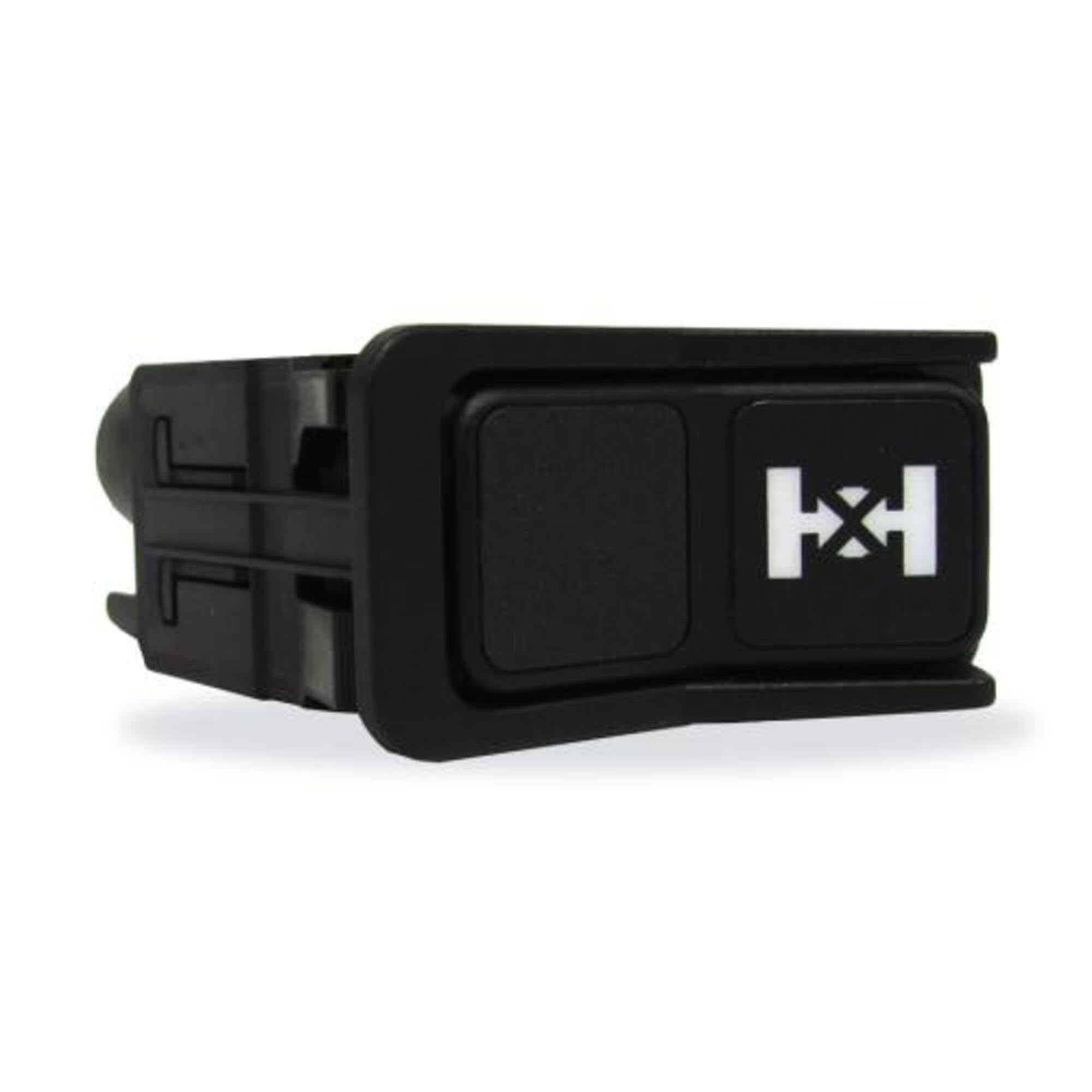

Velvac 032023 Universal Differential Lock Dash Valve Switch 2-Position 3-Way

The Velvac 032023 is a universal differential lock dash valve designed for heavy-duty truck applications. This two-position, three-way air valve provides reliable control of differential lock systems with professional-grade construction and DOT-compliant components.

Key Features:

• Two-position, three-way air valve configuration for differential lock control
• DOT-compliant (FMVSS 106) push-to-connect fittings for 1/4" tubing
• Built-in four-pin electrical connector for backlit function
• Additional rear port allows easy jumper air lines between valves
• Fits standard 22mm x 44mm openings for easy replacement on most current model trucks
• Operating temperature range: -10°F to +160°F
• Maximum rated pressure: 150 PSI
• Rated current load: 1 amp at 14 VDC (maximum)

The valve connector mates with Metric-Pack 150 Series connector (Part No. 12045813 with female terminals, sold separately). This dash valve is precision-engineered to restore functionality and aesthetics to your truck's dashboard while providing dependable performance and straightforward installation.
