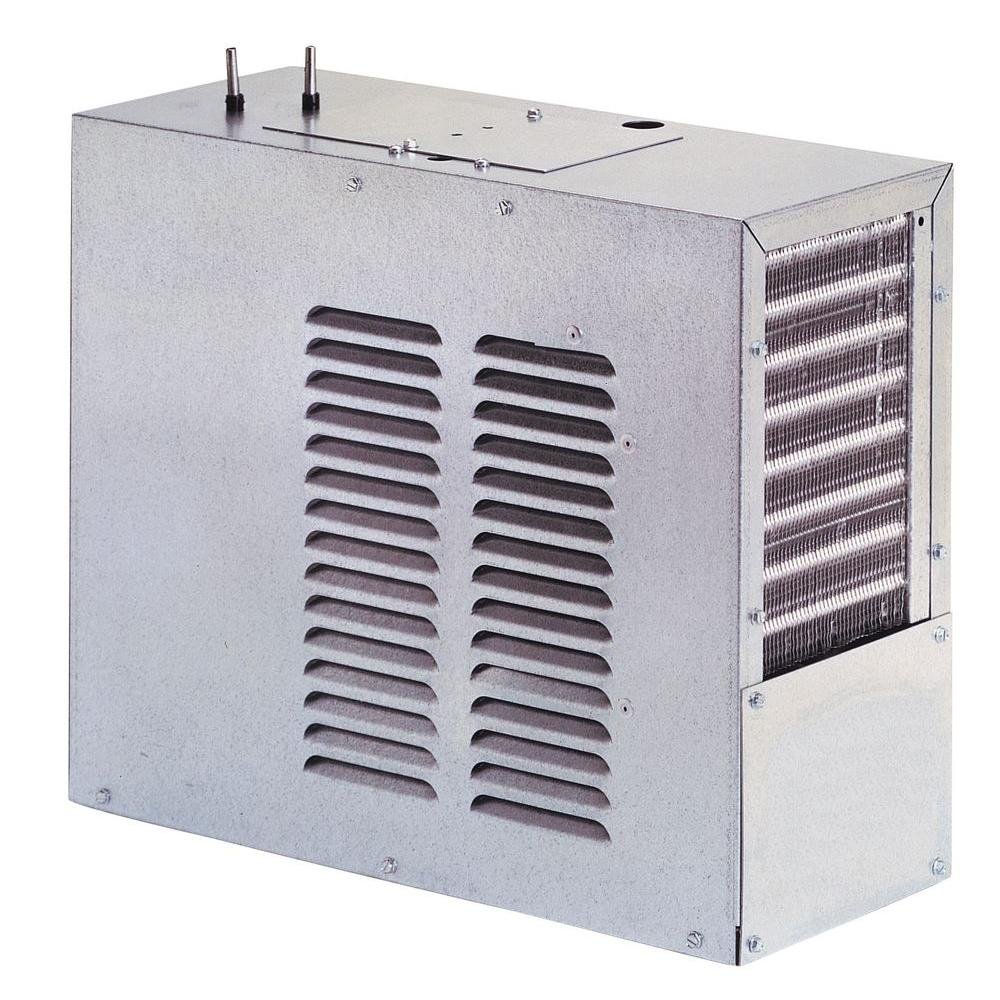

Elkay ERS11Y Remote Water Chiller 1 GPH Air-Cooled Non-Filtered

The Elkay ERS11Y is a remote water chiller designed to convert standard drinking fountains into a water cooler. This electric refrigerated water chiller unit provides a chilling capacity of 1.0 GPH (gallons per hour) of 50°F drinking water, based on 80°F inlet water and 90°F ambient conditions per ASHRAE 18 testing. The hermetically sealed refrigeration system delivers consistently chilled water to satisfy thirst.

Key Features:

• Allows flexible installation location of refrigeration up to 15 feet from dispensing location
• Small size ideal for under-counter installation
• All stainless steel waterway for durability and hygiene
• Compact dimensions: 17" W x 7" D x 14" H with galvanized steel housing
• 1/8 HP compressor with R134A CFC-free refrigerant
• 1/4" OD tubing connections for inlet and outlet
• Ideal for permanently wired applications
• Rated for indoor use

Technical Specifications:

• Operating Voltage: 115V AC
• Full Load Amps: 1.8
• Dispenser Tank Size: 0.7 gallons
• Made in the USA
• NSF compliant
• Can be installed directly under fountain or in a service area within 15 feet recommended distance

This non-filtered remote chiller is perfect for commercial, educational, and healthcare environments where reliable chilled water delivery is essential. The compact design and flexible installation options make it an ideal solution for retrofitting existing drinking fountains or new installations where space is limited.
