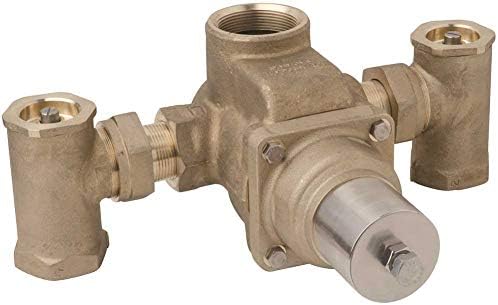

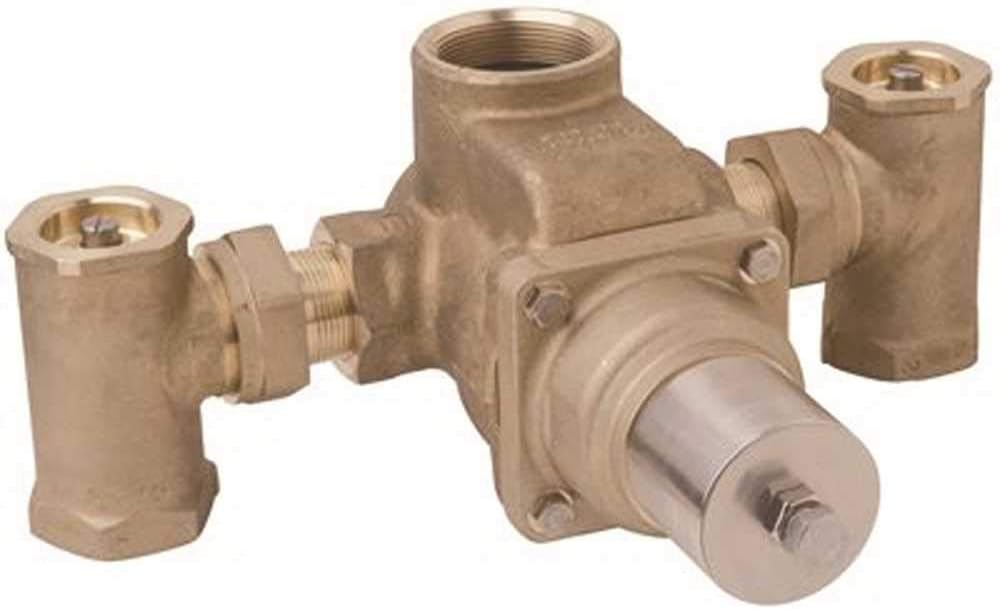

Symmons 7-1000 TempControl Thermostatic Mixing Valve Lead-Free

The Symmons 7-1000 is a TempControl thermostatic mixing valve featuring 1-1/2" female NPT inlet and 2" female NPT outlet connections with integral check stops and a 0.5 GPM minimum flow rate. This lead-free valve is constructed from brass, bronze, and stainless steel components that allow for precise temperature control and meet Federal Lead Free requirements.

Key Features:

• ASSE 1017 and CSA B125.3 certified for safety and performance
• Temperature control range of 70°F to 150°F (21.1°C to 65.6°C) with 5°F approach temperature
• Automatically compensates for supply line temperature and pressure changes
• Measures 14-1/4" L x 11-3/8" H
• Tamper-resistant hex bolt helps prevent unwanted temperature adjustments
• Backwards compatible with previous 6-102 and 5-102 Series TempControl valves

Ideal for general use applications where water temperature must be controlled before distribution, such as the main hot water supply in hospitals, schools, and apartments. For over 50 years, Symmons TempControl valves have been the trusted choice of contractors and engineers where dependable temperature control is required.
