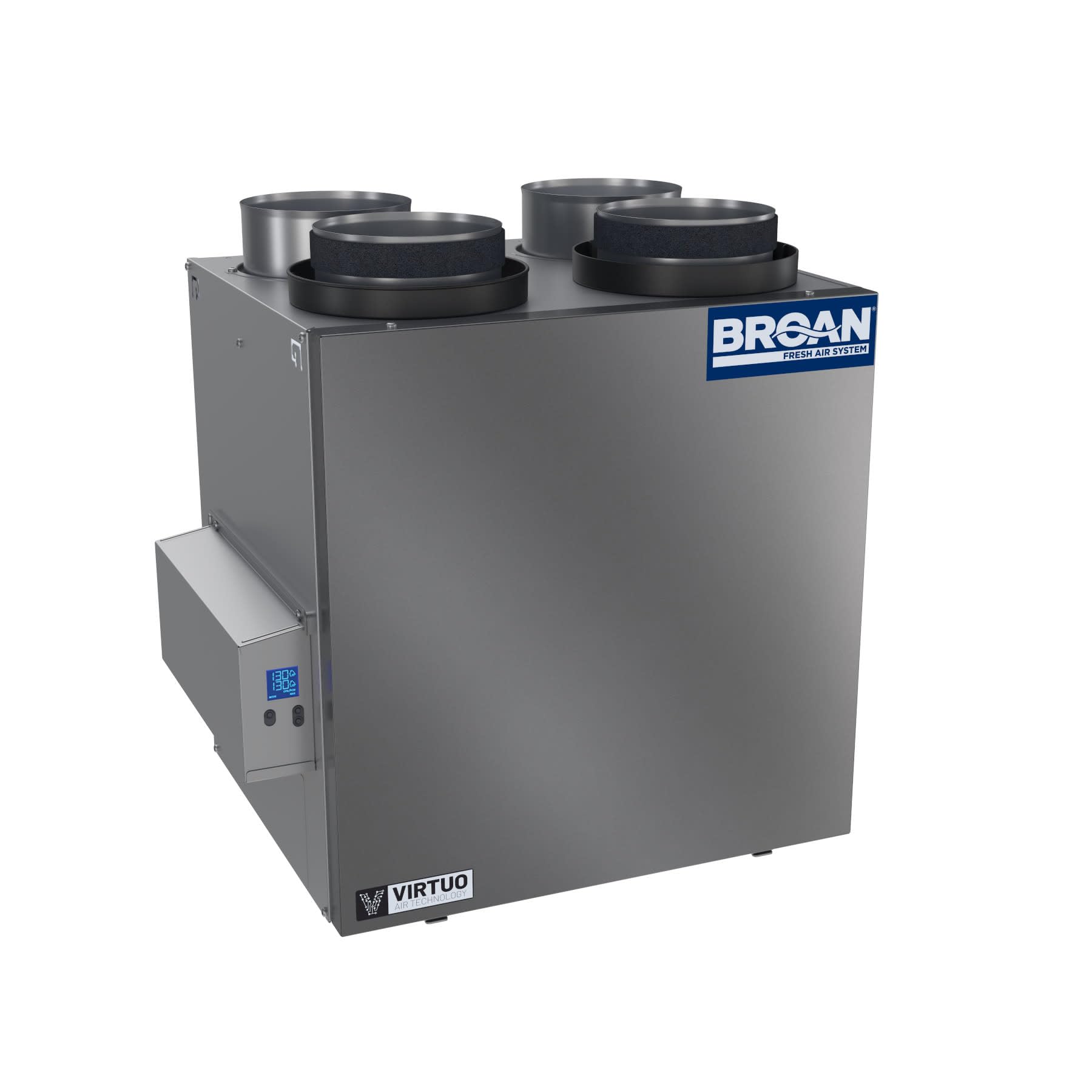

Broan-NuTone B160E75RT AI Series 160 CFM Energy Recovery Ventilator with Top Ports

The Broan-NuTone B160E75RT is an advanced AI Series Energy Recovery Ventilator (ERV) designed to continuously provide fresh, filtered air throughout your home. This unit features VIRTUO Air Technology which is specifically designed to provide fresh air in any season and in any installation situation, making it ideal for medium to large-size homes.

Key Features:

• Easy installation combined with auto-balancing means fresh, filtered, comfortable air without the need for specialized measurement tools or added install time
• Integrated LCD screen provides real-time airflow measurements, automatic system balancing, and simple diagnostic codes
• Selectable airflow speed range from 35-133 CFM to match your ventilation needs
• MERV 8 filters are installed standard, capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort
• Optional MERV 13 filter upgrade available for even more powerful filtration
• Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market
• Sensible recovery efficiency at 32°F: 75% (65 CFM)

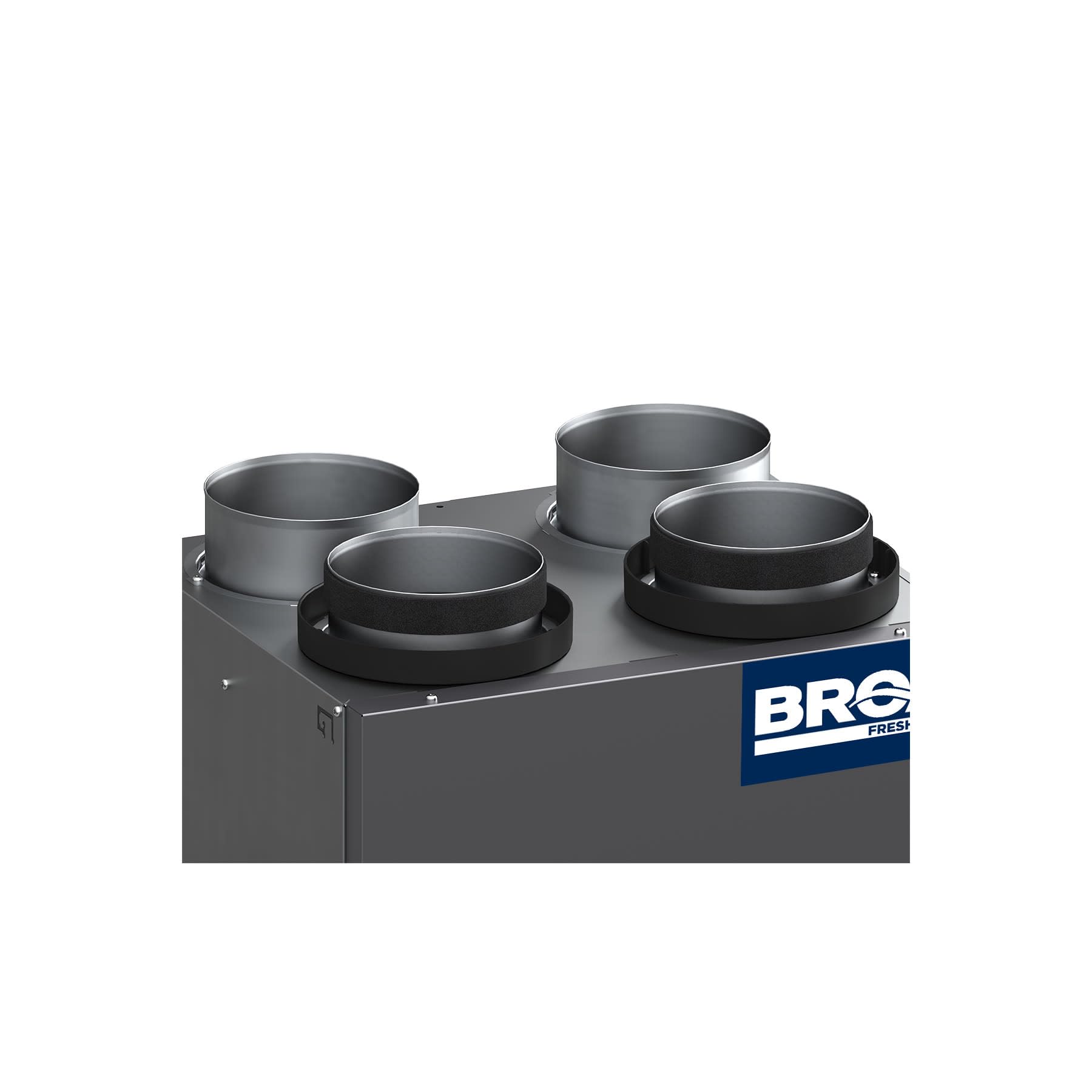

• Top port configuration with 6-inch round duct connections

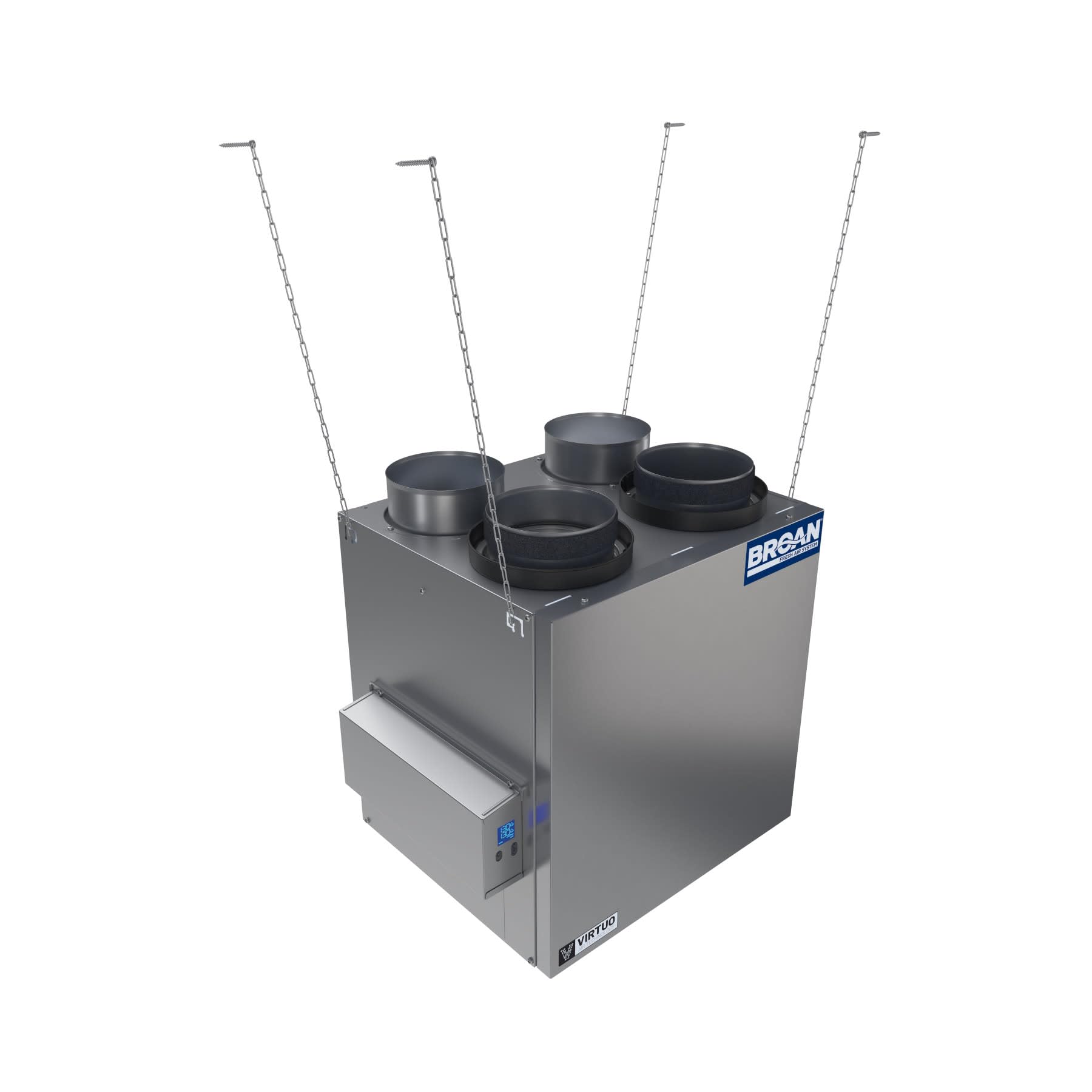

• Wall or ceiling mounting options for flexible installation
• Galvanized Steel Housing Material for durability and corrosion resistance

Specifications:

• Voltage: 120V
• Amperage: 1.36A
• Duct Size: 5" Round
• Dimensions: 21-1/2" H x 21" W x 16-3/10" D
• Core: 12" x 12" x 9" polypropylene crossflow with polymeric membrane
• Warranty: 10-year core warranty, 5-year parts warranty

When combined with Broan main controls like the VTTOUCHW, VAUTOW, VTSPEEDW, and VTDEHUMW, it meets California Title 24, Part 6 requirements for fault indicator display. The B160E75RT brings superior indoor air quality through continuous monitoring of changing indoor and outdoor conditions, ensuring your home maintains healthy, comfortable air year-round.
