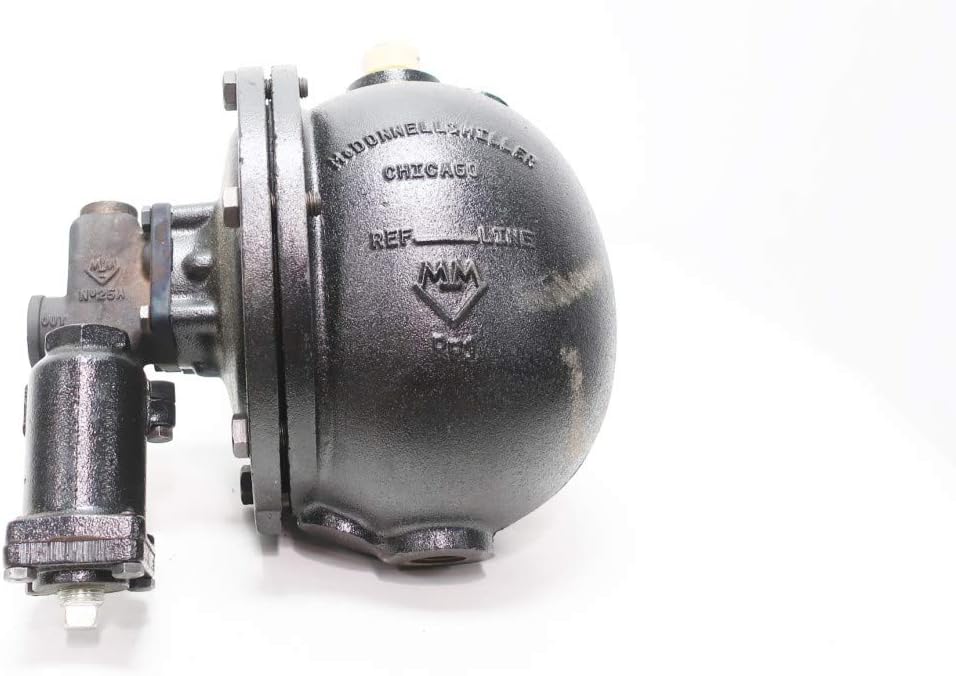

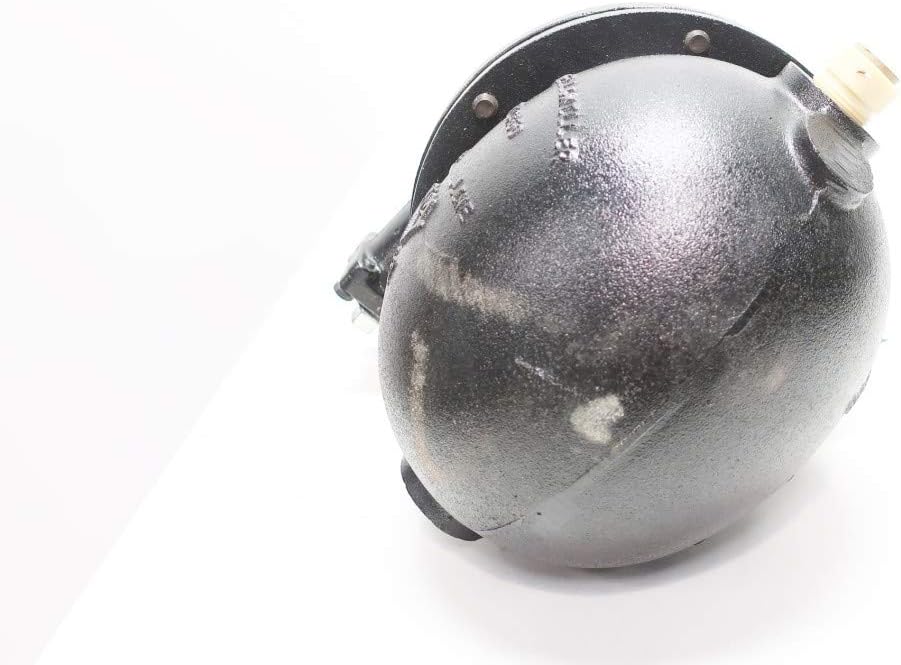

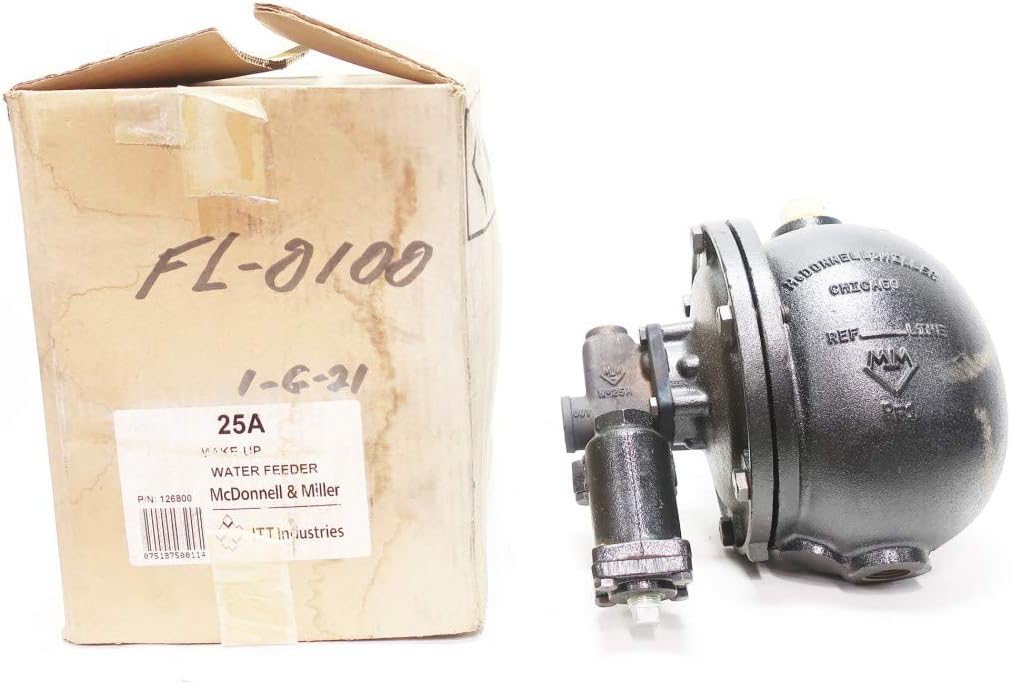

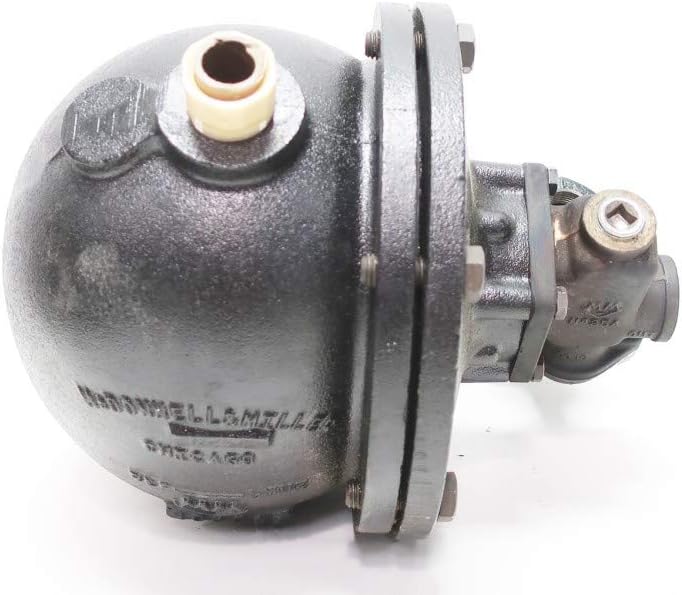

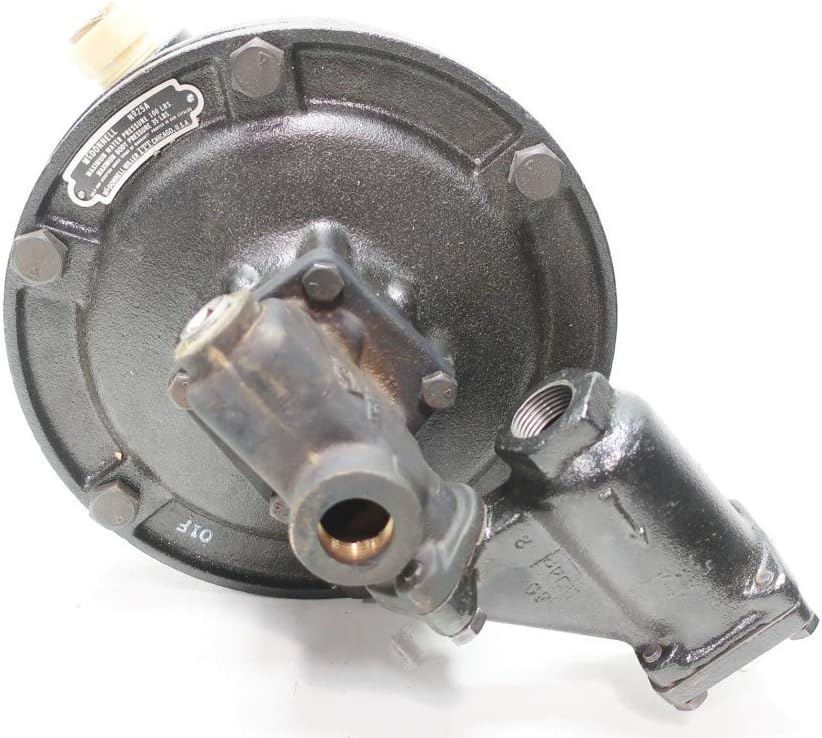

Xylem 25-A Make-Up Water Feeder for Boiler Receiver Tanks

The Xylem 25-A Make-Up Water Feeder (model 126800) is a float-operated automatic water feeder designed for boiler receiver tanks in commercial and industrial hydronic heating systems. This reliable device automatically maintains proper water levels in steam boilers and hot water systems, preventing dry firing and optimizing system efficiency.

Key Features:

• Float-operated design with proportional feed action for precise water level control
• Soft seat valve construction provides positive seal and long service life
• 1-inch NPT threaded connections for supply and equalizing lines
• 3/4-inch NPT inlet water connection
• Maximum water supply pressure of 100 PSI (7 kg/cm²)
• Maximum vessel operating pressure of 35 PSI (2.5 kg/cm²)
• Maximum inlet water temperature rating of 120°F (49°C)
• Compact dimensions: 12-1/4 inches wide by 10-3/8 inches high
• CSA certified for safety and reliability

This makeup water feeder is ideal for power plants, chemical processing facilities, manufacturing plants, and commercial building applications. The proportional feed action ensures efficient water treatment by providing precise makeup water control, while the durable construction ensures long-lasting operation in demanding environments. Easy installation and maintenance minimize downtime and reduce the need for manual monitoring.
