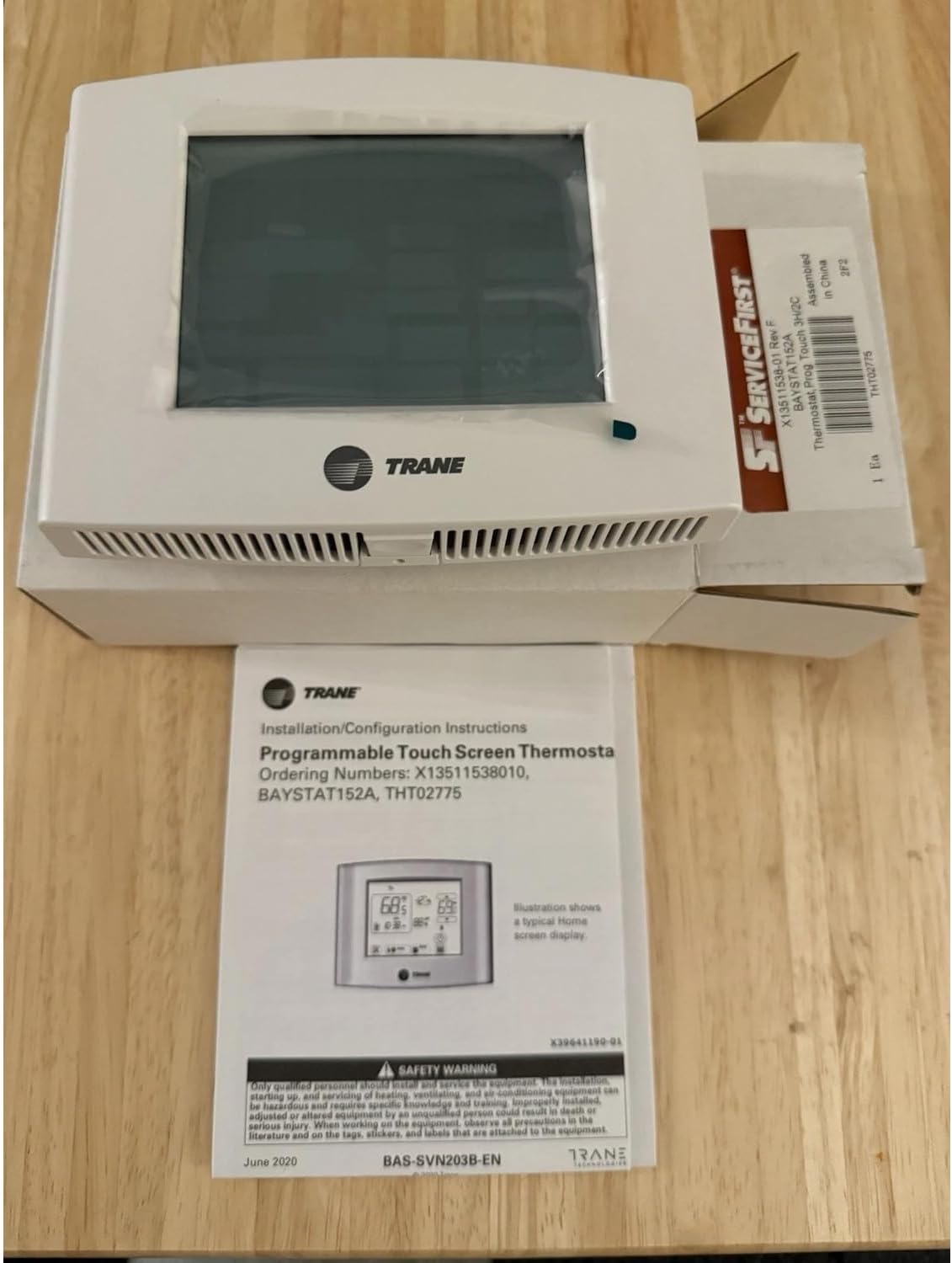

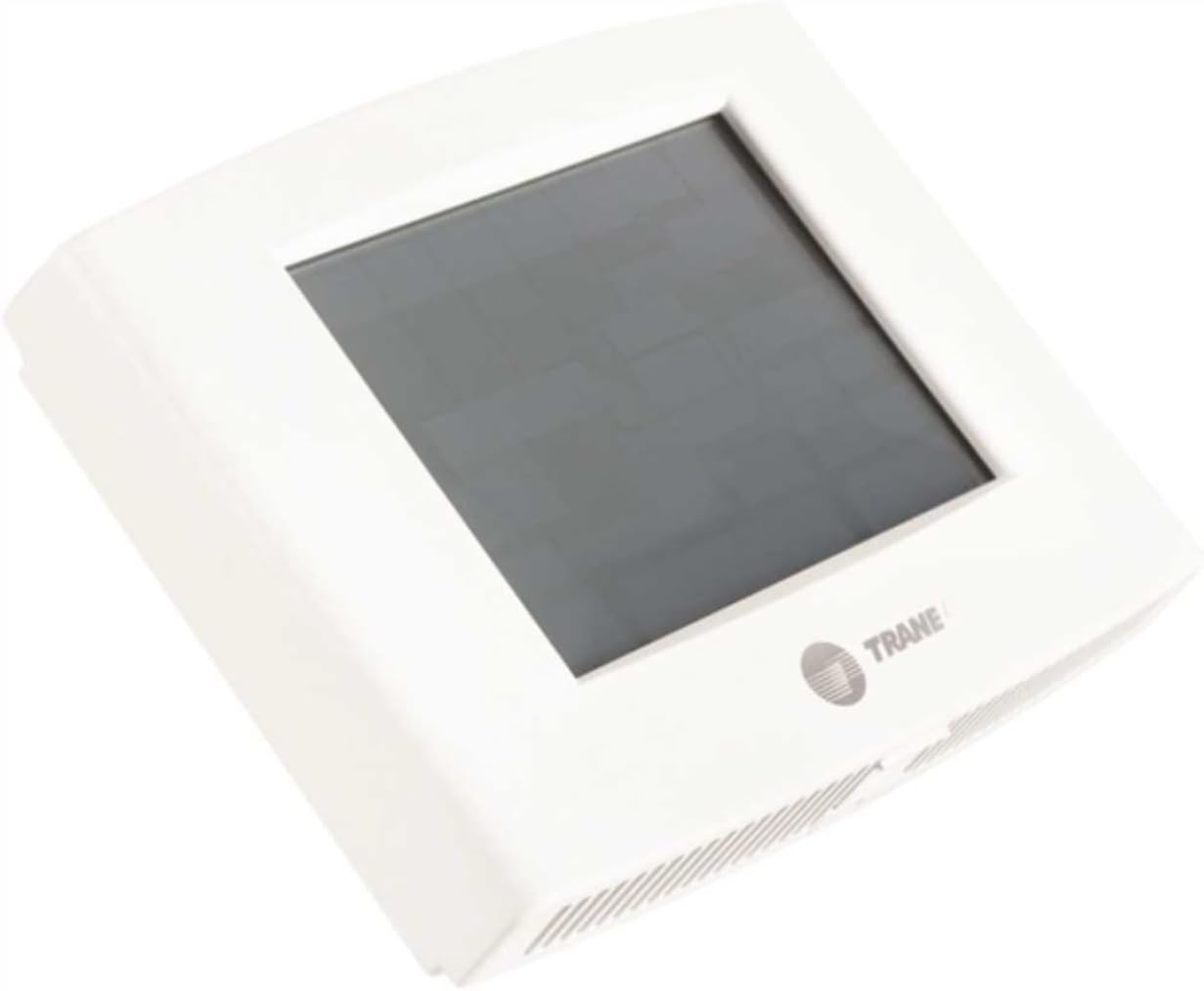

Trane BAYSTAT152A Programmable Touch Screen Thermostat 3H/2C

Manufacturer

Part Number

BAYSTAT152A
Black Friday Price

$452.78

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

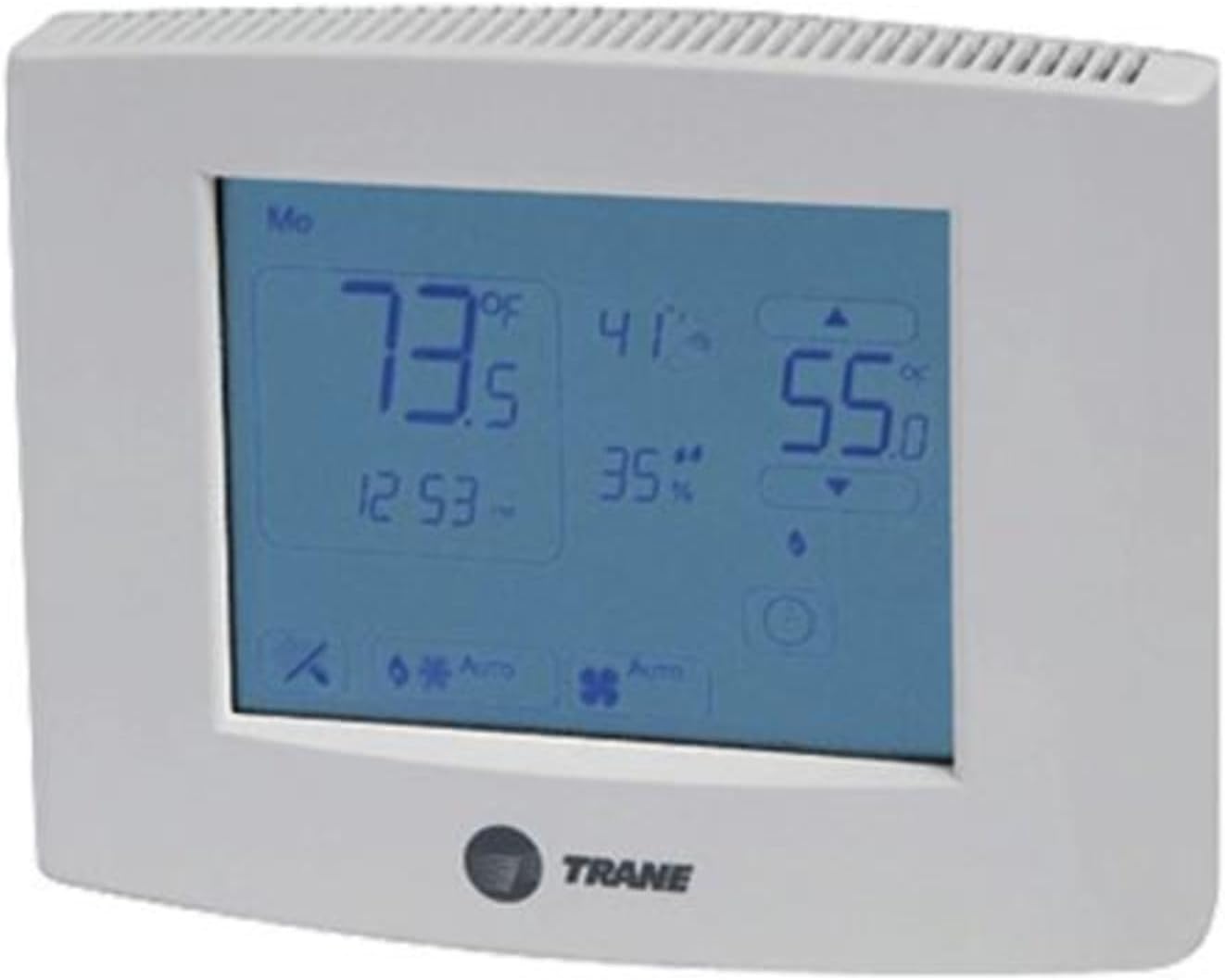

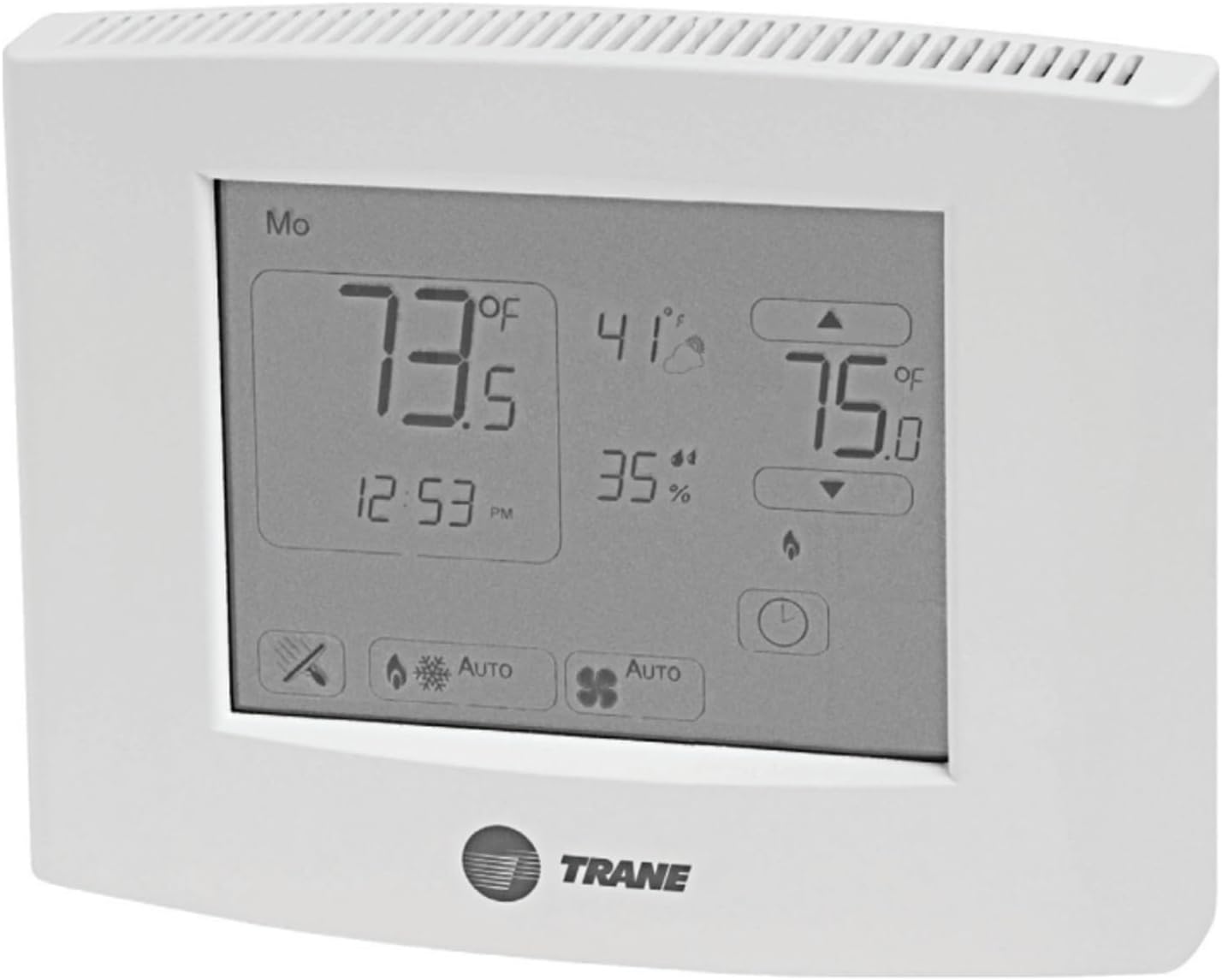

The Trane BAYSTAT152A is a commercial-grade programmable touch screen thermostat designed for conventional rooftop units and heat pumps with 3-stage heating and 2-stage cooling (3H/2C) capability. This advanced thermostat features an intuitive LCD touch screen interface that displays current temperature, setpoints, time, and system operating modes for easy operation and programming.

Key Features:

  • Touch screen LCD display with backlighting for easy visibility
  • Wide temperature display range: -45°F to 199°F (-42.8°C to 92.8°C)
  • Five system modes: Heat, Cool, Auto, Off, and Emergency Heat
  • Heat setpoint range: 40°F to 90°F (4.5°C to 32°C)
  • Cool setpoint range: 50°F to 99°F (10°C to 37°C)
  • Programmable scheduling with multiple period options (2 or 4 periods per day)
  • Internal humidity sensor with dehumidification control
  • Terminals for optional remote temperature and humidity sensors
  • Manual or automatic changeover between heating and cooling
  • Real-time clock with temporary override capability
  • 24 VAC operation (18-32 VAC range), 50/60 Hz

The BAYSTAT152A operates in ambient temperatures from 32°F to 122°F with 5% to 95% humidity (non-condensing). Compatible with optional remote sensors including BAYSENS077A zone temperature sensor and remote humidity sensors (4-20 mA, 24 VDC type). The thermostat's menu-driven programming makes setup straightforward while providing advanced control for optimal comfort and energy efficiency in commercial HVAC applications.

Also Known As: THT02775, X13511538-01, X1351153801
