Xylem 401902 FT075X Float & Thermostatic Steam Trap 2 Inch 75 PSI X Pattern

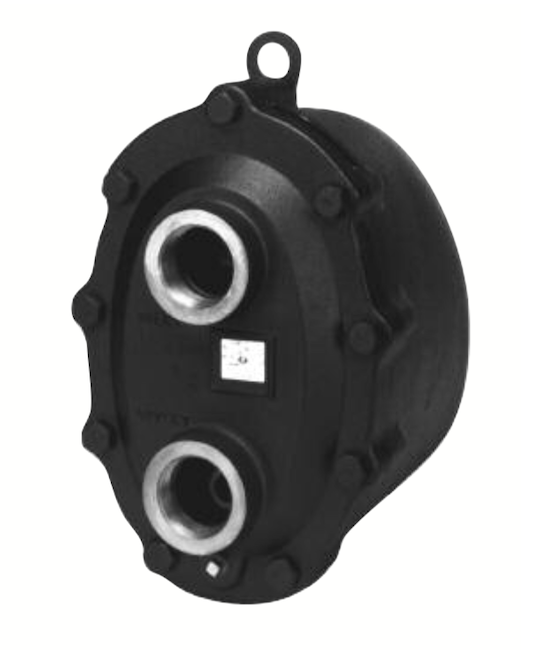

The Xylem Hoffman Specialty 401902 FT075X is a 2-inch float and thermostatic steam trap designed for continuous condensate drainage in low, medium, and high-pressure steam systems. This cast iron trap features a 75 PSI maximum operating pressure and has a capacity of 20,500 pounds per hour. The X Series configuration includes an inlet on the top end of the cover and a condensate discharge outlet on the bottom end of the cover.

Key Features:

• Continuous drainage design with stainless steel internal parts for durability
• Thermostatic vent in the top allows free passage of air during start-up and closes near saturation temperature
• Float-operated discharge valve provides modulation to handle light or heavy condensate loads
• Water seal prevents live steam loss
• Thermostatic valve discharges air and non-condensable gases
• Removable cover for easy in-line maintenance
• Maximum temperature rating of 377°F

These traps are ideal for heat exchange equipment requiring quick venting of air and non-condensable gases, recommended for modulating pressures with varying loads, and excellent for applications requiring low-pressure air venting and operation against back pressure. Float and thermostatic traps operate on the density principle to automatically and continuously eliminate condensate while maintaining system efficiency.
