Manley 29582RH Big Block Chevy Rotating Assembly Stroke Bore Dome - 582ci Kit 4.375 4.600 43cc

Manufacturer

Part Number

29582RH
Black Friday Price

$3,653.55

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

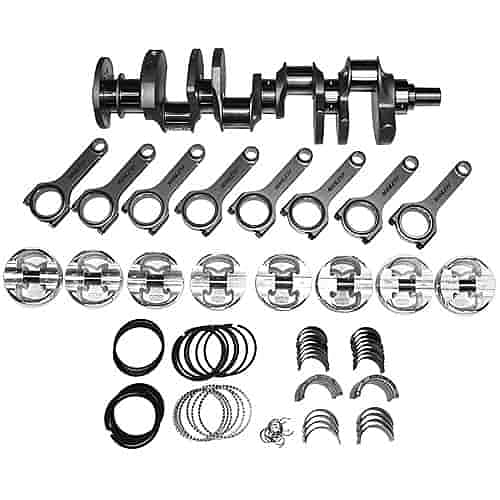

The Manley 29582RH is a complete Big Block Chevy (BBC) 582 cubic inch rotating assembly kit built for serious high-performance street and race engine builds. Designed around a 4.375-inch stroke and 4.600-inch bore with +43cc dome pistons, this kit delivers everything needed to assemble a powerful, balanced bottom end with matched, race-proven components.

Key Features:

  • 4340 Forged Steel Crankshaft — 4.375" stroke, engineered for maximum strength and durability under high-load conditions
  • 4340 Forged Steel H-Beam Connecting Rods — 6.535" length with 7/16" ARP 8740 cap screws (ARP 2000 cap screws optional for higher power levels)
  • 2618 Forged Aluminum Platinum Series Pistons — +43cc dome design with premium chrome moly wrist pins for a 4.600" bore
  • Total Seal Piston Rings — High-performance file-fit rings included
  • Clevite® Bearings — "H" Series narrowed rod bearings and "P" Series main bearings included
  • Horsepower Rated — Supports up to 900 hp with ARP 8740 hardware; up to 1,500 hp with optional ARP 2000 cap screws

This rotating assembly kit is engineered by Manley Performance, a trusted manufacturer of high-performance engine components since 1966. The 29582RH is an ideal foundation for a 582ci Big Block Chevy stroker build targeting maximum displacement and power output in a short-deck block configuration.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Connecting Rod Length

6.535

Engine Stroke

4.375

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 2000

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Piston Bore Diameter

4.600

Engine Block

Standard Deck Blocks Without Center Counterweights

Piston Ring Part Number

46558

Main Bearing Type

Clevite Series

Displacement

582

Title

Manley Rotaing Assembly, BBC 582 4.375 STROKE/4.600/+43cc

Connecting Rod Part Number

14066

Crankshaft Part Number

190250

Piston Part Number

698280
