Manley 28598HX BBC 598ci Rotating Assembly 4.500 Stroke 4.600 Bore -3cc Flat Top HX Bearings

Manufacturer

Part Number

28598HX
Black Friday Price

$3,397.81

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

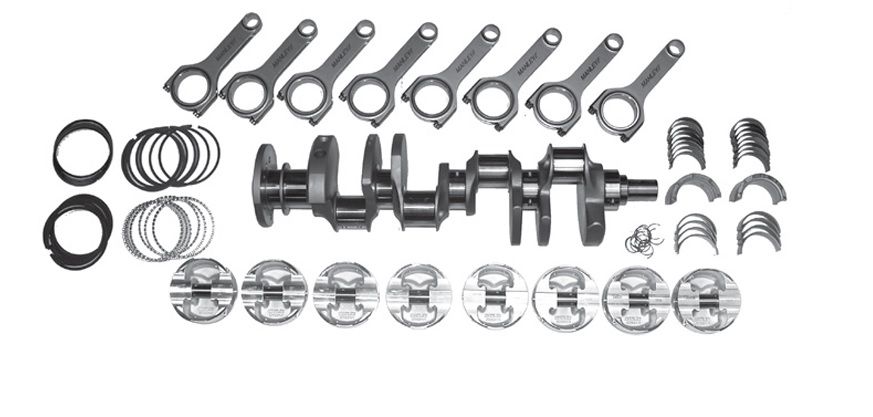

The Manley 28598HX is a complete Big Block Chevy (BBC) 598 cubic inch rotating assembly engineered for high-performance street and racing applications. This kit is built around a 4.500-inch stroke and a 4.600-inch bore, featuring -3cc flat top pistons for efficient combustion chamber fill in tall deck block applications. The "HX" designation indicates this assembly is upgraded with optional HX Series main bearings featuring .001" extra clearance for improved oil flow and bearing life under high-load conditions.

Key Features:

  • 4340 Forged Steel Crankshaft – Heat treated, stress relieved, shot peened, nitrided, and 100% magnafluxed for maximum strength and durability
  • 4340 Forged Steel H-Beam Connecting Rods – 6.700" length with 7/16" ARP 8740 cap screws; rated to 900 HP standard or 1,500 HP with optional ARP 2000 cap screws
  • 2618 Forged Aluminum Platinum Series Pistons – -3cc flat top design with premium chrome moly wrist pins; compatible with tall deck BBC block configurations
  • HX Series Main Bearings – Clevite® H Series rod bearings (narrowed) and upgraded HX Series main bearings with .001" extra oil clearance
  • High-Performance Piston Rings – Included for a complete, ready-to-assemble rotating package
  • Micro-Polished Large Radius Journals – Requires narrowed rod bearings, as included in this kit

Designed for tall deck Big Block Chevy blocks (10.200" deck height), this assembly delivers the displacement and strength needed for demanding race and high-performance street builds. Factory balanced to within +/- 1% of bobweight, the 28598HX provides a solid foundation for a powerful 598ci BBC engine build.

Products specifications

Make

Chevrolet

Piston Head Type

Flat

Engine Type

ICE

Engine

Big Block

Piston Volume

-3.00

Engine Stroke

4.500

Rod Bolt Material

ARP 8740

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Displacement

598

Title

Manley Rotaing Assembly, BBC 598 4.500 STROKE/4.600/-3cc

Connecting Rod Length

6.700

Piston Bore Diameter

4.600

Connecting Rod Part Number

14072

Crankshaft Part Number

190220

Engine Block

Tall Deck Blocks With Center Counterweights

Piston Part Number

698080

Piston Ring Part Number

46458

Main Bearing Type

Extra Clearance
