Manley 29632X BBC 632ci Rotating Assembly 4.750" Stroke 4.600" Bore +43cc Dome X-Series Bearings

Manufacturer

Part Number

29632X
Black Friday Price

$3,545.27

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

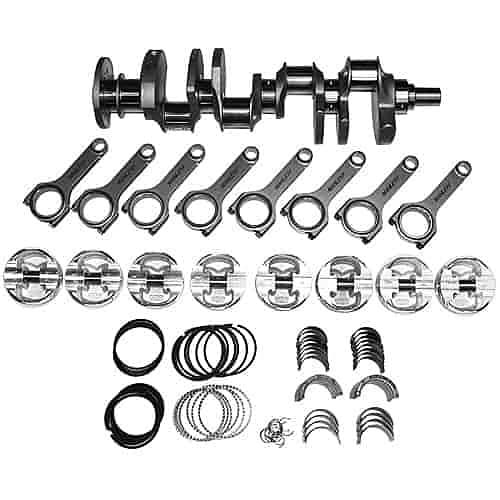

The Manley 29632X is a complete Big Block Chevy (BBC) 632 cubic inch rotating assembly engineered for high-displacement, high-horsepower engine builds. Featuring a 4.750-inch stroke paired with a 4.600-inch bore and +43cc dome pistons, this kit is purpose-built for tall deck block applications and arrives factory balanced to within +/- 1% of bobweight. The "X" suffix designates the inclusion of Manley's optional X-Series rod bearings with .001" extra clearance, providing additional tolerance for demanding builds.

Key Features:

  • 4340 forged steel crankshaft — lightweight design, heat treated, stress relieved, shot peened, nitrided, and 100% magnafluxed for maximum durability
  • 4340 forged steel H-Beam connecting rods — 6.700" length with 7/16" ARP 8740 cap screws standard; ARP 2000 cap screws available for upgraded horsepower ratings
  • 2618 forged aluminum Platinum Series pistons — +43cc dome configuration with premium chrome moly wrist pins
  • X-Series rod bearings — Clevite® "H" Series narrowed rod bearings with .001" extra clearance for enhanced oil film protection
  • Clevite® "P" Series main bearings — high-performance main bearing set included
  • High-performance piston rings — Total Seal ring set included
  • Center counterweights — included for improved balance at high RPM
  • 2-piece rear main seal design
  • Tall deck block fitment — designed specifically for 4.500"–4.750" stroke tall deck applications
  • Factory balanced to within +/- 1% of bobweight

Specifications:

  • Engine Family: Big Block Chevrolet (BBC)
  • Displacement: 632 cubic inches (10.3L)
  • Stroke: 4.750"
  • Bore: 4.600"
  • Piston Dome Volume: +43cc
  • Rod Length: 6.700"
  • Rear Main Seal: 2-piece
  • Horsepower Rating: 900 HP (ARP 8740) / 1,500 HP (optional ARP 2000 cap screws)

The Manley 29632X rotating assembly delivers a complete, matched foundation for serious BBC stroker engine builds, combining premium forged components with precision-matched tolerances straight out of the box.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 8740

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Displacement

632

Connecting Rod Length

6.700

Engine Stroke

4.750

Piston Bore Diameter

4.600

Connecting Rod Part Number

14072

Crankshaft Part Number

190280

Engine Block

Tall Deck Blocks With Center Counterweights

Piston Ring Part Number

46558

Title

Manley Rotaing Assembly, BBC 632 4.750 STROKE/4.600/+43cc

Piston Part Number

697980

Rod Bearing Type

Extra Clearance
