Manley 29632RH BBC 632 CID Rotating Assembly 4.750 Stroke 4.600 Bore +43cc Dome Balanced

Manufacturer

Part Number

29632RH
Black Friday Price

$3,721.97

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

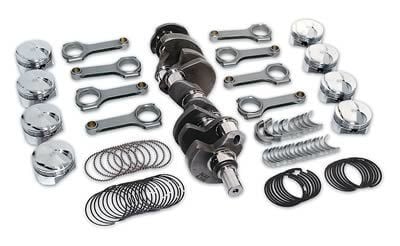

The Manley 29632RH is a complete, factory-balanced rotating assembly engineered for Chevrolet Big Block 632 CID applications using a tall deck (10.200") block. Designed for serious high-horsepower builds, this kit pairs a precision-forged crankshaft with matching rods, pistons, rings, and bearings — everything needed to assemble a bulletproof bottom end right out of the box.

At the heart of the kit is a Manley 4340 non-twist lightweight forged steel crankshaft with a 4.750" stroke. The crankshaft is heat treated, stress relieved, shot peened, nitrided, and 100% magnafluxed, with micro-polished large-radius journals for superior durability under extreme loads.

Connecting the crank to the pistons are 4340 forged steel H-beam connecting rods measuring 6.700" in length, secured with 7/16" ARP 2000 cap screws — rated to support up to 1,500 horsepower. The pistons are 2618 Platinum Series forged aluminum dome pistons sized at 4.600" bore with a +43cc dome volume, delivering a high compression ratio of approximately 15.5:1 with 118cc heads and a 1.120" compression height.

The assembly ships with Clevite "H" Series narrowed rod bearings and "P" or "H" Series main engine bearings, Total Seal performance piston rings, and premium chromoly wrist pins. The "H" suffix denotes a factory-balanced assembly, precision balanced in-house by Manley to within +/- 1% of bobweight, saving significant time and cost during the engine build.

Key Specifications:

  • Engine Family: Chevrolet Big Block (BBC)
  • Displacement: 632 CID
  • Block Deck Height: 10.200" (Tall Deck)
  • Crankshaft Stroke: 4.750"
  • Crankshaft Material: 4340 Forged Steel (Non-Twist, Lightweight)
  • Connecting Rod Length: 6.700"
  • Connecting Rod Type: 4340 Forged Steel H-Beam
  • Rod Bolts: 7/16" ARP 2000 Cap Screws
  • Piston Bore Size: 4.600"
  • Piston Material: 2618 Forged Aluminum (Platinum Series)
  • Piston Style: +43cc Dome
  • Compression Height: 1.120"
  • Compression Ratio: ~15.5:1 (with 118cc heads)
  • Wrist Pins: Premium Chromoly
  • Rings: Total Seal High Performance
  • Bearings: Clevite "H" Series Rod & "P"/"H" Series Main
  • Horsepower Rating: Up to 1,500 HP (ARP 2000)
  • Balance: Factory Balanced (within +/- 1% of bobweight)
  • Manufacturer Part Number: 29632RH

The Manley 29632RH rotating assembly is the foundation of a serious race or high-performance street engine build. With every critical component sourced and matched from a single manufacturer, this kit eliminates compatibility guesswork and delivers a ready-to-install bottom end built to withstand the demands of forced induction, nitrous, or naturally aspirated big-inch power.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 2000

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Displacement

632

Connecting Rod Length

6.700

Engine Stroke

4.750

Piston Bore Diameter

4.600

Connecting Rod Part Number

14072

Crankshaft Part Number

190280

Engine Block

Tall Deck Blocks With Center Counterweights

Piston Ring Part Number

46558

Title

Manley Rotaing Assembly, BBC 632 4.750 STROKE/4.600/+43cc

Main Bearing Type

Clevite Series

Piston Part Number

697980
