Manley 29555 Big Block Chevy Rotating Assembly Stroke Bore Dome - 555ci 4.250 4.560 43cc

Manufacturer

Part Number

29555
Black Friday Price

$3,461.59

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 29555 is a complete Big Block Chevy (BBC) rotating assembly engineered for serious high-performance street and race engine builds. This kit displaces 555 cubic inches using a 4.250" stroke paired with a 4.560" bore and features +43cc dome pistons that deliver compression ratios ranging from 13.0:1 to 14.7:1 depending on combustion chamber volume. The assembly is factory balanced to within +/- 1% of bobweight, making it suitable for standard deck Big Block Chevy blocks.

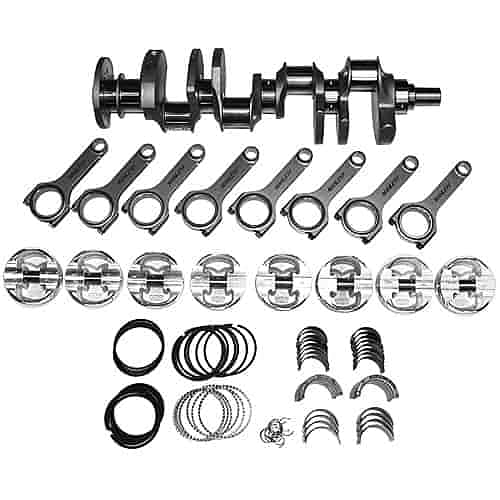

What's Included:

  • 4340 Forged Steel Crankshaft — 4.250" stroke; heat treated, stress relieved, shot peened, nitrided, and 100% magnafluxed for maximum structural integrity
  • 4340 Forged Steel H-Beam Connecting Rods — 6.385" length with 7/16" ARP 8740 cap screws standard; optional ARP 2000 cap screws available
  • 2618 Forged Aluminum Platinum Series Pistons — +43cc dome design with premium chrome moly wrist pins; ring grooves machined in a single operation for superior ring seal
  • High-Performance Piston Ring Set — .043" and 3/16" ring package
  • Clevite "H" Series Narrowed Rod Bearings and "P" Series Main Bearings

Key Specifications:

  • Displacement: 555 cubic inches
  • Stroke: 4.250"
  • Bore: 4.560"
  • Piston Dome: +43cc
  • Connecting Rod Length: 6.385"
  • Compression Ratio: 13.0:1 – 14.7:1 (varies by head chamber volume)
  • Horsepower Rating: Up to 900 HP with standard ARP 8740 cap screws
  • Horsepower Rating: Up to 1,500 HP with optional ARP 2000 cap screws
  • Block Compatibility: Standard deck Big Block Chevy (4.000"–4.375" stroke kits)
  • Balance: Factory balanced to within +/- 1% of bobweight

Manley's Platinum Series pistons are forged from domestic 2618 high-strength alloy and machined using unique fixturing that ensures ring groove and skirt squareness in a single operation for optimal ring seal and power retention. The included 4340 H-Beam connecting rods are finished to the same exacting tolerances as Manley's premium Pro Series rods. Optional "X" Series rod bearings (add suffix "X" to part number) and "HX" Series main bearings (add suffix "HX") with .001" extra clearance are available for builds requiring additional oil clearance.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Connecting Rod Length

6.385

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 8740

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Engine Stroke

4.250

Connecting Rod Part Number

14062

Crankshaft Part Number

190140

Engine Block

Standard Deck Blocks Without Center Counterweights

Displacement

555

Title

Manley Rotaing Assembly, BBC 555 4.250 STROKE/4.560/+43cc

Piston Bore Diameter

4.560

Piston Part Number

697860

Piston Ring Part Number

46556
