Manley 290300RH SBC 434 CID Rotating Assembly 4.000" Stroke +4cc Dome Pistons

Manufacturer

Part Number

290300RH
Black Friday Price

$3,284.89

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

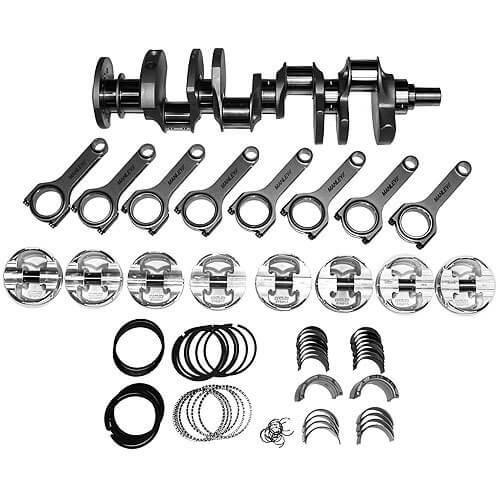

The Manley 290300RH is a complete, precision-balanced rotating assembly engineered for Chevy Small Block (SBC) stroker builds displacing 434 cubic inches. Built around a 4.000" stroke and 4.155" bore with 350 main journals, this assembly delivers high-compression performance with +4cc dome forged pistons — making it an ideal foundation for serious street/strip and race engine builds.

At the heart of this kit is a Manley 4340 forged steel crankshaft that is heat-treated, nitrided, stress-relieved, shot-peened, and magnafluxed for maximum strength and reliability. Micro-polished journals, gun-drilled mains, and lightened rod journals contribute to both durability and reduced rotating mass. The assembly is precision internally balanced in-house by Manley.

The connecting rods are Manley 6.000" H-beam units forged from 4340 alloy, fully machined, heat-treated, stress-relieved, shot-peened, and magnafluxed. They are bronze-bushed for full-floating pin applications and secured with ARP rod bolts for reliable clamping force at high RPM.

Pistons are Manley Platinum Series 2618 forged aluminum with a +4cc dome profile and lateral gas ports, paired with premium Chrome Moly wrist pins. Compression ratio varies by head chamber volume: approximately 14.7:1 with 58cc chambers, 13.6:1 with 64cc chambers, and 11.8:1 with 76cc chambers. The assembly is completed with ductile moly file-fit rings (.043" x .043" x 3/16") and Clevite H-series rod and main bearings.

Key Specifications:

  • Displacement: 434 CID
  • Stroke: 4.000"
  • Bore: 4.155"
  • Main Journal: 350 (2-piece rear main seal)
  • Rod Length: 6.000"
  • Piston: Manley Platinum Series 2618 Forged, +4cc Dome, Lateral Gas Ports
  • Compression Height: 1.100"
  • Compression Ratio: 14.7:1 @ 58cc / 13.6:1 @ 64cc / 11.8:1 @ 76cc
  • Crankshaft: Manley 4340 Forged Steel, Non-Twist Lightweight Design
  • Connecting Rods: Manley 4340 H-Beam, Bronze Bushed, ARP Rod Bolts
  • Rings: Ductile Moly File-Fit .043" x .043" x 3/16"
  • Bearings: Clevite H-Series Rod and Main
  • Balance: Precision Internally Balanced (Neutral)

The Manley 290300RH rotating assembly is a complete, ready-to-install solution for builders targeting high-compression naturally aspirated SBC stroker applications. Its all-forged, name-brand component lineup ensures long-term reliability in demanding performance environments.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Engine Stroke

4.000

Engine

Small Block

Engine Type

ICE

Piston Volume

4.00

Rod Bolt Material

ARP 2000

Displacement

434

Product Type

Engine Crankshaft Rotating Assembly

Connecting Rod Length

6.000

Rod Bearing Type

Clevite Series

Piston Bore Diameter

4.125

Connecting Rod Part Number

14054

Crankshaft Part Number

190130

Engine Block

400 Block with 350 Main Journal Diameter

Title

Manley Rotaing Assembly, SBC 434 4.000 STROKE/+4cc DOME

Piston Part Number

593800

Piston Ring Part Number

46260

Main Bearing Type

Clevite Series
