Manley 29555R BBC CID Rotating Assembly Stroke Bore Dome - 555 4.250 4.560 43cc

Manufacturer

Part Number

29555R
Black Friday Price

$3,556.33

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 29555R is a complete Big Block Chevy (BBC) 555 CID rotating assembly kit engineered for serious high-performance and race applications. Built around a 4.250" stroke and 4.560" bore with +43cc dome pistons, this kit delivers exceptional displacement and compression potential in a standard deck block configuration.

Every component in this rotating assembly is manufactured from premium materials and undergoes rigorous processing. The forged steel crankshaft and H-beam connecting rods are heat treated, stress relieved, shot peened, nitrided, and 100% Magnafluxed for maximum durability and reliability under extreme power levels.

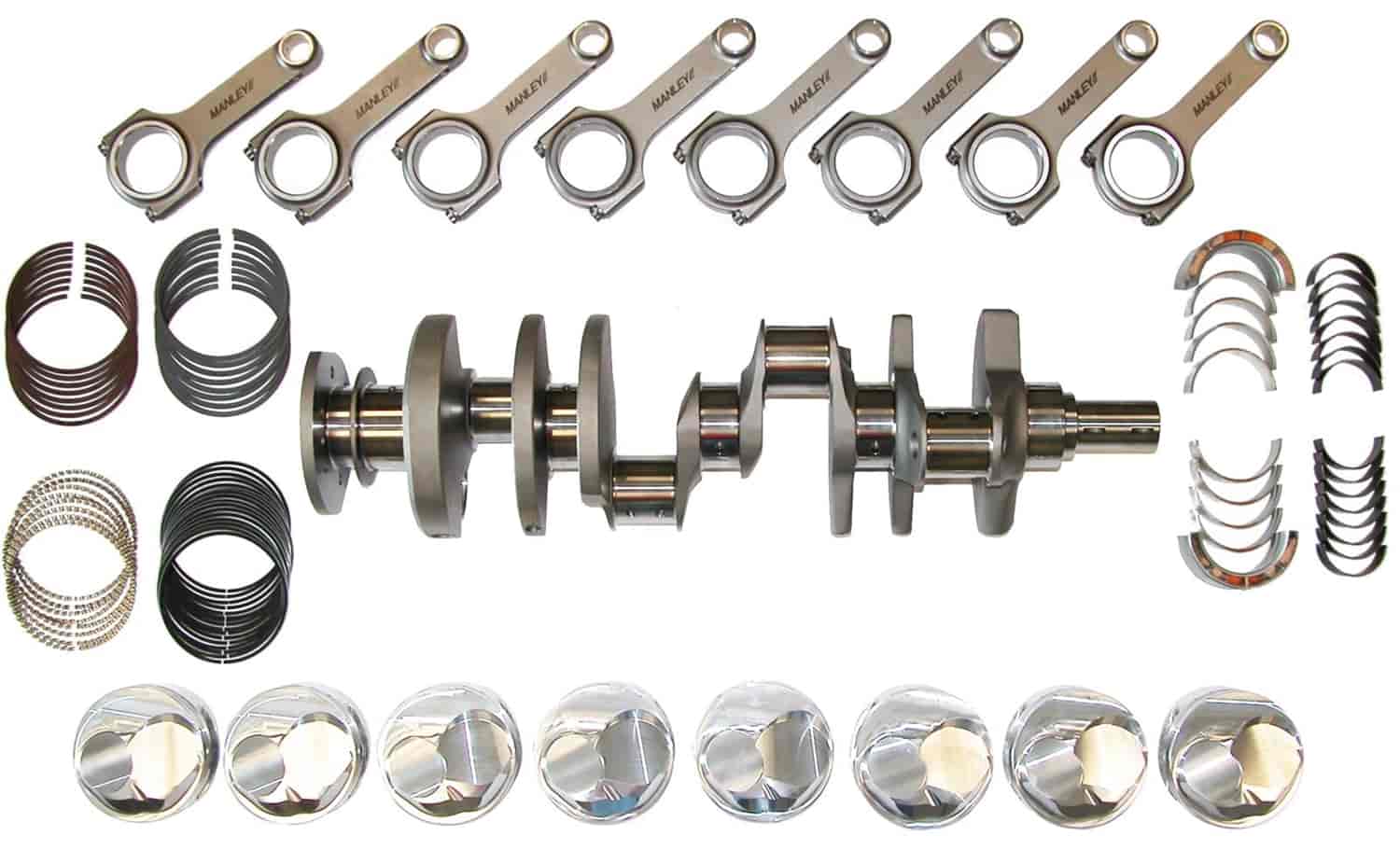

Kit Includes:

  • 4340 forged steel crankshaft — 4.250" stroke, non-twist lightweight design
  • 4340 forged steel H-beam connecting rods — 6.385" length with 7/16" ARP 8740 cap screws (ARP 2000 optional)
  • 2618 forged aluminum Platinum Series pistons — 4.560" bore, +43cc dome with premium chrome moly wrist pins
  • Total Seal piston rings — .043", 3/16" configuration
  • Clevite high-performance "H" Series rod (narrowed) and main bearings

Key Specifications:

  • Engine Family: Big Block Chevrolet (BBC)
  • Displacement: 555 CID
  • Stroke: 4.250"
  • Bore: 4.560"
  • Rod Length: 6.385"
  • Piston: +43cc Dome
  • Compression Ratio Range: 13.0:1 – 14.7:1 (varies by head chamber volume)
  • Block Deck Height: 9.800" (standard deck)
  • Horsepower Rating: 900 HP with ARP 8740 cap screws; up to 1,500 HP with optional ARP 2000 cap screws

The Manley 29555R rotating assembly is factory balanced to within +/- 1% of bobweight, saving critical build time. This kit is ideal for drag racing, circle track, and high-output street/strip builds demanding proven BBC stroker performance. Note: Narrowed rod bearings are required due to micro-polished large-radius journals. Not intended for use with highly boosted roots-style cog belt superchargers.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Connecting Rod Length

6.385

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 2000

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Engine Stroke

4.250

Connecting Rod Part Number

14062

Crankshaft Part Number

190140

Engine Block

Standard Deck Blocks Without Center Counterweights

Displacement

555

Title

Manley Rotaing Assembly, BBC 555 4.250 STROKE/4.560/+43cc

Piston Bore Diameter

4.560

Piston Part Number

697860

Piston Ring Part Number

46556
