Manley 28565H Big Block Chevy Rotating Assembly Stroke Bore - 565 4.250 4.600 3cc

Manufacturer

Part Number

28565H
Black Friday Price

$3,320.13

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

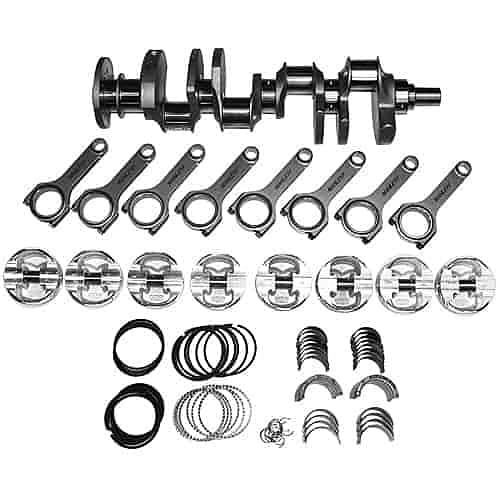

The Manley 28565H is a complete rotating assembly engineered for Big Block Chevy 565 cubic inch engine builds. Designed for serious street and race applications, this kit delivers a 4.250-inch stroke paired with a 4.600-inch bore and -3cc flat-top pistons, targeting high-compression performance on a standard deck block.

Key Features:

  • 4340 forged steel crankshaft — lightweight design, heat treated, stress relieved, shot peened, nitrided, and 100% magnafluxed for maximum durability
  • 4340 forged steel H-Beam connecting rods with 7/16" ARP 8740 cap screws, rated to 900 hp; upgradeable to ARP 2000 cap screws for up to 1,500 hp
  • 2618 alloy Platinum Series forged aluminum pistons with -3cc flat-top head volume and premium chrome moly wrist pins
  • Total Seal high-performance piston rings included
  • Clevite® "H" Series narrowed rod bearings and "P" or "H" Series main engine bearings included
  • Factory balanced to within +/- 1% of bobweight
  • Designed for standard deck Big Block Chevy blocks (4.000"–4.375" stroke range)

Optional "X" Series rod bearings with .001" extra clearance are available by adding "X" to the assembly part number. Optional "HX" Series main bearings with .001" extra clearance are also available. Note: Manley 4340 forged crankshafts are not intended for use with highly boosted roots-style cog belt superchargers.

Products specifications

Make

Chevrolet

Piston Head Type

Flat

Connecting Rod Length

6.385

Engine Type

ICE

Engine

Big Block

Piston Volume

-3.00

Rod Bolt Material

ARP 8740

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Engine Stroke

4.250

Displacement

565

Title

Manley Rotaing Assembly, BBC 565 4.250 STROKE/4.600/-3cc

Piston Bore Diameter

4.600

Connecting Rod Part Number

14062

Crankshaft Part Number

190140

Engine Block

Standard Deck Blocks Without Center Counterweights

Piston Part Number

696380

Piston Ring Part Number

46458

Main Bearing Type

Clevite Series
