Manley 29516H Big Block Chevy 516ci Rotating Assembly Kit 4.000" Stroke 4.530" Bore

Manufacturer

Part Number

29516H
Black Friday Price

$3,304.89

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 29516H is a complete rotating assembly kit designed for big block Chevy engines, delivering 516 cubic inches of displacement with a 4.000-inch stroke and 4.530-inch bore configuration. This comprehensive kit is engineered for high-performance street and racing applications requiring exceptional strength and durability.

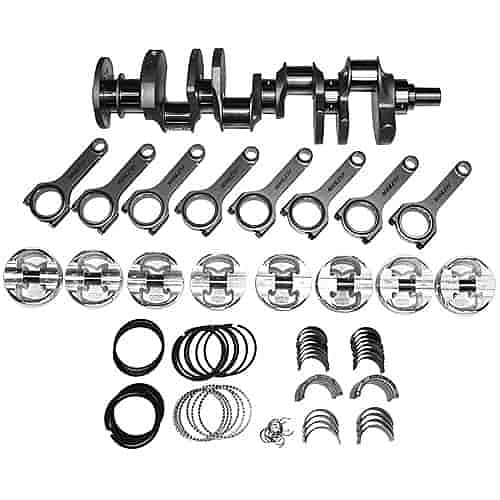

Complete Assembly Kit Includes:

  • 4340 forged steel crankshaft with 4.000-inch stroke
  • 4340 forged steel H-beam connecting rods with 7/16-inch ARP 8740 cap screws
  • 2618 forged aluminum Platinum Series pistons with +2cc dish volume
  • Premium chromoly wrist pins
  • Total Seal high-performance piston rings
  • Clevite "H" Series narrowed rod bearings
  • Clevite "H" Series main bearings

Performance Specifications:

  • Displacement: 516 cubic inches (8.4L)
  • Bore: 4.530 inches
  • Stroke: 4.000 inches
  • Horsepower rating: 900 HP with standard ARP 8740 cap screws (up to 1,500 HP with optional ARP 2000 upgrade)
  • Designed for standard deck big block Chevy engines
  • 2-piece rear main seal style

Manley rotating assemblies are built to exacting tolerances using premium materials throughout. The lightweight 4340 forged crankshaft features gun-drilled mains, fully profiled counterweights, and micro-polished journals for reduced friction. The forged H-beam connecting rods provide exceptional strength-to-weight ratio, while the 2618 aluminum pistons offer superior durability under high-temperature and high-boost conditions.

Important Notes:

  • This assembly is unbalanced and requires professional balancing before installation
  • Designed for standard deck height big block Chevy blocks
  • Not recommended for use with highly boosted roots-style cog belt superchargers

Whether you're building a high-horsepower street machine or a dedicated race engine, the Manley 29516H rotating assembly provides the foundation for reliable power production. Each component is manufactured to Manley's strict quality standards, ensuring proper fitment and long-term durability in demanding applications.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Connecting Rod Length

6.385

Engine Stroke

4.000

Engine Type

ICE

Engine

Big Block

Piston Volume

2.00

Rod Bolt Material

ARP 8740

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Connecting Rod Part Number

14062

Engine Block

Standard Deck Blocks Without Center Counterweights

Main Bearing Type

Clevite Series

Displacement

516

Title

Manley Rotaing Assembly, BBC 516 4.000 STROKE/4.530/+2cc

Piston Bore Diameter

4.530

Crankshaft Part Number

190170

Piston Part Number

698330

Piston Ring Part Number

46453
