Manley 29598RH BBC 582 Rotating Assembly Kit 4.375" Stroke 4.600" Bore +43cc Dome

Manufacturer

Part Number

29598RH
Black Friday Price

$3,721.97

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 29598RH is a complete Big Block Chevy 582 cubic inch rotating assembly kit built for serious high-performance and racing applications. Combining a 4.375-inch stroke with a 4.600-inch bore, this stroker kit delivers the displacement and bottom-end strength needed to support extreme power levels in BBC-based builds.

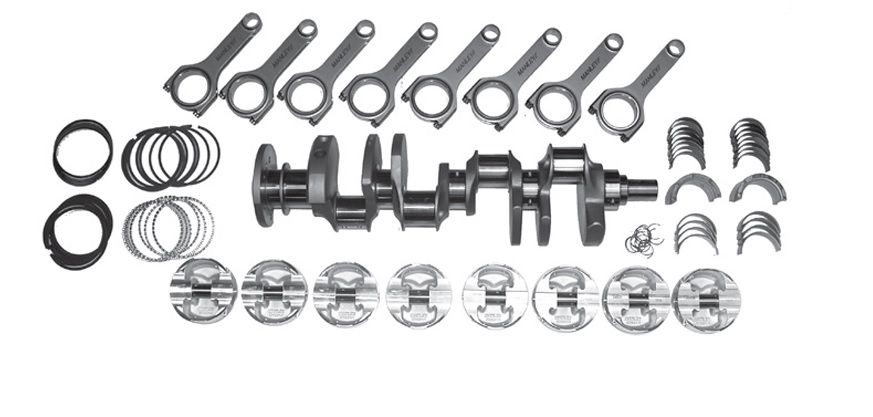

Kit Components & Specifications:

  • Crankshaft: Manley 4340 forged steel, 4.375" stroke
  • Connecting Rods: Manley H-beam, 6.535" length, 4340 forged steel
  • Rod Bolts: ARP 8740 cap screws rated to 900 hp; optional ARP 2000 cap screws available for up to 1,500 hp
  • Pistons: Manley 2618 Platinum Series forged aluminum, +43cc lateral gas-ported dome, 4.600" bore
  • Wrist Pins: Chromoly premium wrist pins included
  • Piston Rings: Total Seal piston rings included
  • Bearings: Clevite "H" Series narrowed rod bearings and "P" or "H" Series main bearings
  • Displacement: 582 cubic inches
  • Piston Dome: +43cc, lateral gas-ported for improved ring seal under high-boost or high-compression conditions

Compression Ratios (approximate, based on combustion chamber volume):

  • With 58cc chamber: ~15.7:1
  • With 64cc chamber: ~14.7:1
  • With 76cc chamber: ~13.9:1

Important: This rotating assembly kit is not pre-balanced. Professional balancing is required prior to installation. This kit is engineered for Big Block Chevrolet engine platforms and is intended for performance, race, and competition use.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Engine Stroke

4.375

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 2000

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Connecting Rod Length

6.700

Piston Bore Diameter

4.600

Connecting Rod Part Number

14072

Crankshaft Part Number

190220

Engine Block

Tall Deck Blocks With Center Counterweights

Piston Ring Part Number

46558

Main Bearing Type

Clevite Series

Displacement

582

Title

Manley Rotaing Assembly, BBC 582 4.375 STROKE/4.600/+43cc

Piston Part Number

697680
