Manley 29565H Big Block Chevy CID Rotating Assembly Stroke Bore Dome - 565 4.250 4.600 43cc

Manufacturer

Part Number

29565H
Black Friday Price

$3,558.80

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 29565H is a complete Big Block Chevy 565 CID high-compression rotating assembly engineered for serious performance builds. Featuring a 4.250" stroke and 4.600" bore, this precision-matched kit displaces 565 cubic inches and is designed for 9.800" standard deck blocks. It is precision internally balanced in-house by Manley to within +/-1% of bobweight, eliminating the need for external balancing.

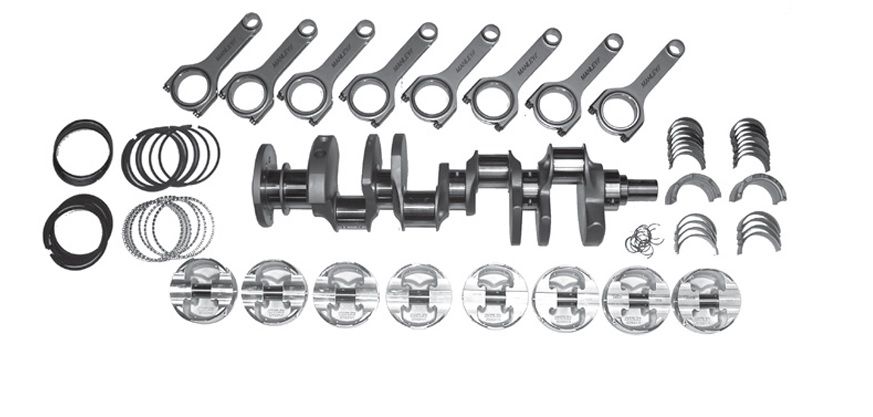

Kit Components:

  • Crankshaft: Manley 4340 non-twist lightweight forged steel, 4.250" stroke — heat treated, stress relieved, shot peened, nitrided, and 100% magnaflux inspected
  • Connecting Rods: Manley 4340 forged steel H-Beam, 6.385" length, with 7/16" ARP 8740 cap screws (ARP 2000 optional) — heat treated, stress relieved, shot peened, nitrided, and 100% magnaflux inspected
  • Pistons: Manley 2618 forged aluminum Platinum Series, 4.600" bore, 1.395" compression height, +43cc dome, with premium chrome moly wrist pins
  • Piston Rings: Total Seal 1/16" – 1/16" – 3/16" ring set
  • Bearings: Clevite high-performance "H" Series rod (narrowed) and main bearings

Key Specifications:

  • Displacement: 565 CID (9.3L)
  • Stroke: 4.250"
  • Bore: 4.600"
  • Rod Length: 6.385"
  • Piston Dome Volume: +43cc
  • Compression Ratio: 14.0:1 (with 118cc chamber)
  • Deck Height: 9.800"
  • Horsepower Rating: 900 HP with ARP 8740 fasteners; up to 1,500 HP with optional ARP 2000 cap screws
  • Balance: Precision internally balanced by Manley in-house

The "H" suffix denotes this kit is supplied with the H-Beam connecting rod configuration. Optional bearing upgrades are available — add an "X" suffix to the part number for rod bearings with .001" extra clearance, or "HX" for main bearings with .001" extra clearance. This kit is intended for standard deck Big Block Chevy applications and is not recommended for use with highly boosted roots-style cog belt superchargers.

Products specifications

Make

Chevrolet

Piston Head Type

Dome

Connecting Rod Length

6.385

Engine Type

ICE

Engine

Big Block

Rod Bolt Material

ARP 8740

Piston Volume

43.00

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Engine Stroke

4.250

Displacement

565

Title

Manley Rotaing Assembly, BBC 565 4.250 STROKE/4.600/+43cc

Piston Bore Diameter

4.600

Connecting Rod Part Number

14062

Crankshaft Part Number

190140

Engine Block

Standard Deck Blocks Without Center Counterweights

Piston Part Number

697880

Piston Ring Part Number

46558

Main Bearing Type

Clevite Series
