Lectrotab XKASML12X12A Aluminum Trim Tab Kit 12x12 with MLC-1 Control

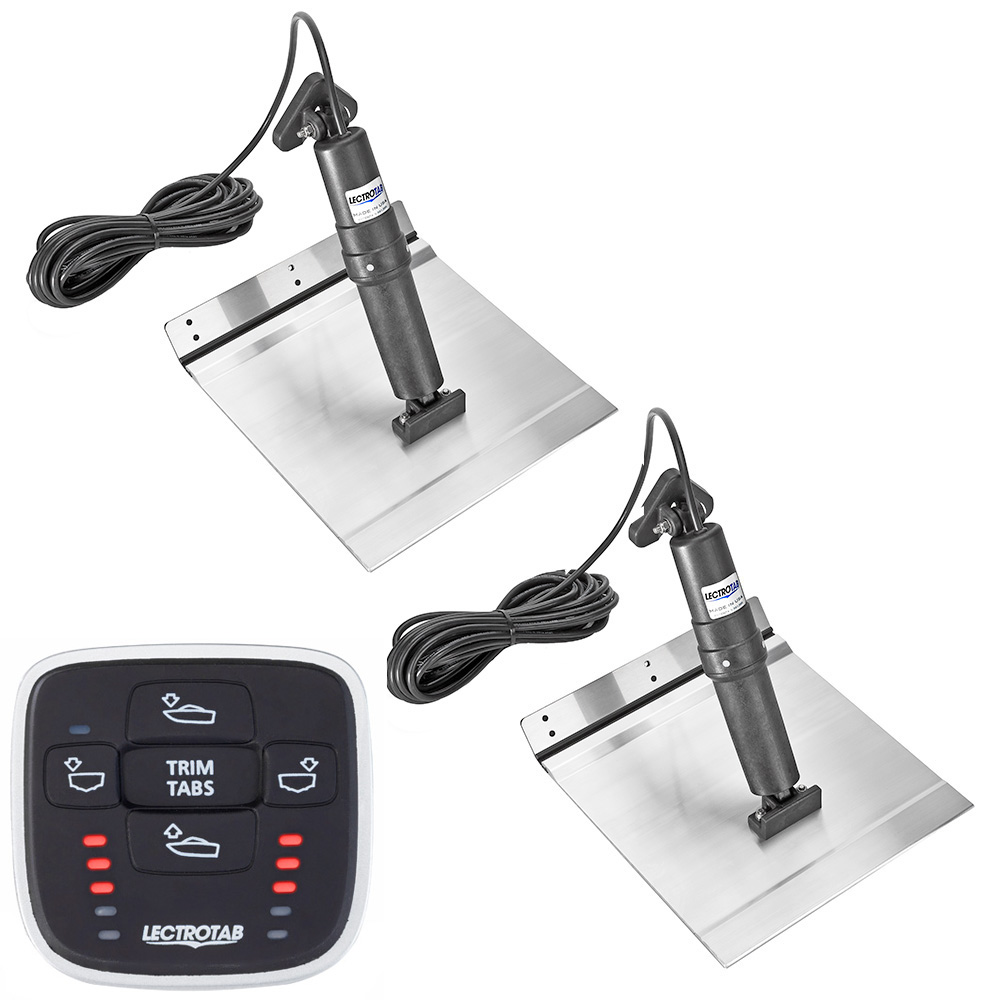

The Lectrotab XKASML12X12A is an XKA aluminum alloy trim tab kit with an MLC-1 manual leveling control. It includes two 12" x 12" tabs and two actuators, and is designed for aluminum-hulled boats but is also an economical option for any boat. The electric, non-hydraulic design is quiet and maintenance free, with no oil to leak.

Key Features:

• Aluminum alloy tabs sealed with a corrosion-resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge, tested over 300,000 cycles to a 90° bend without failure
• Actuators load tested to push 1000 lbs of force
• Non-metallic, permanently sealed actuator housing that will not corrode or deteriorate in the sun or under water
• Internal brake system prevents unwanted tab movement when under way or backing down
• Internal pressure equalization system
• Upper ram seal location cannot be damaged by a fouled ram or barnacle growth
• Self-contained design with no components installed inside the boat
• Actuator uses either a standard or low profile transom mounting bracket

MLC-1 Control: The microprocessor-based MLC-1 moves both tabs simultaneously at the touch of a single button. LED tab position indicators dim automatically in darkness and brighten in sunlight.

Technical Specifications:

• Trim tab size (L x W): 12" x 12" (30 x 30 cm)
• Boat length: 18' to 32' (5.5 to 9.5 m)
• Tab material: marine grade 6005-T5 aluminum alloy
• Actuator voltage: 12 V DC
• Actuator stroke length: 2.25" (57 mm)
• Actuator cable length: 23' (7 m)
• Actuator vertical height: 11.875" (302 mm)
• Control dimensions (W x H): 3.15" x 3.07" (80 x 77 mm)
• Control mounting hole cutout: 2" (50 mm)
• Control operating voltage: 12 or 24 V

In the Box:

• One (1) manual leveling control
• Two (2) aluminum alloy tabs
• Two (2) actuators with 23' (7 m) cables
• Instruction manual

Sold as a kit.
