Lectrotab XKASAL12X12 XKA Stainless Steel Trim Tab Kit 12x12 with ALC-1 Control

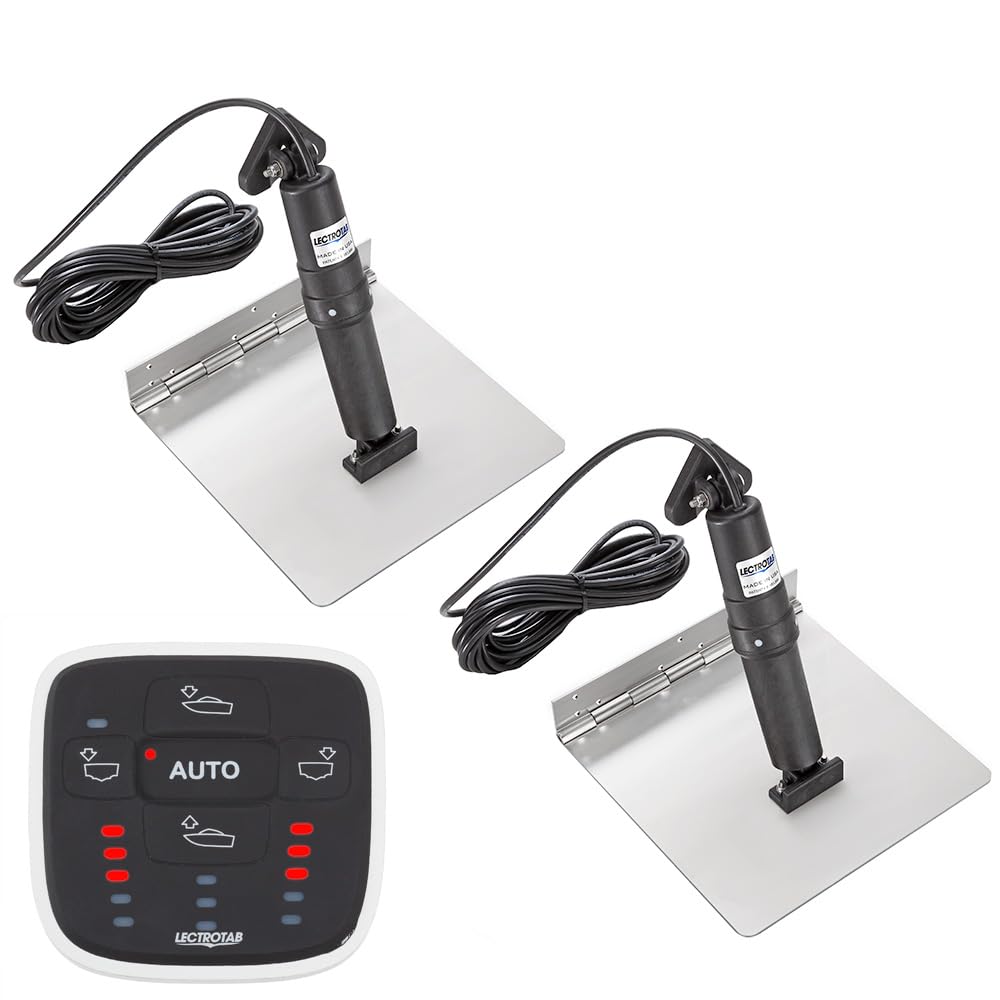

The Lectrotab XKASAL12X12 XKA stainless steel trim tab kit pairs 12" x 12" stainless steel tabs with non-hydraulic electric actuators and the ALC-1 Automatic Leveling Control. The self-contained, maintenance-free design has no oil to leak, and no components need to be installed inside the boat.

Key Features:

• Continuous rolled and pinned hinge adds strength and eliminates the need for welding
• Non-hydraulic actuator is quiet, maintenance free and totally self-contained for easy installation
• Actuator assembly is packaged in a non-metallic, permanently sealed housing that cannot corrode and will not deteriorate in the sun or under water
• Actuators are fully load tested to push 1000 lbs of force
• Upper ram seal location cannot be damaged by a fouled ram or barnacle growth
• Internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Actuator uses either a standard or low profile transom mounting bracket
• Automatic Leveling Control (ALC) adjusts the tabs to keep the boat level, correcting roll from side to side and pitch from fore to aft for a more comfortable ride and improved fuel economy

Technical Specifications:

• Trim tab size (L x W): 12" x 12" (30 x 30 cm)
• Boat length: 18' to 32' (5.5 to 9.5 m)
• Tab material: 12 gauge, 304 stainless steel
• Actuator voltage: 12 V DC
• Actuator stroke length: 2.25" (57 mm)
• Actuator cable length: 23' (7 m)
• Actuator vertical height: 11.875" (302 mm)
• Control dimensions (W x H): 3.15" x 3.07" (80 x 77 mm)
• Control mounting hole cutout: 2" (50 mm)
• Control operating voltage: 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) stainless steel tabs
• Two (2) actuators with 23' (7 m) cables
• Instruction manual

Sold as a kit.
