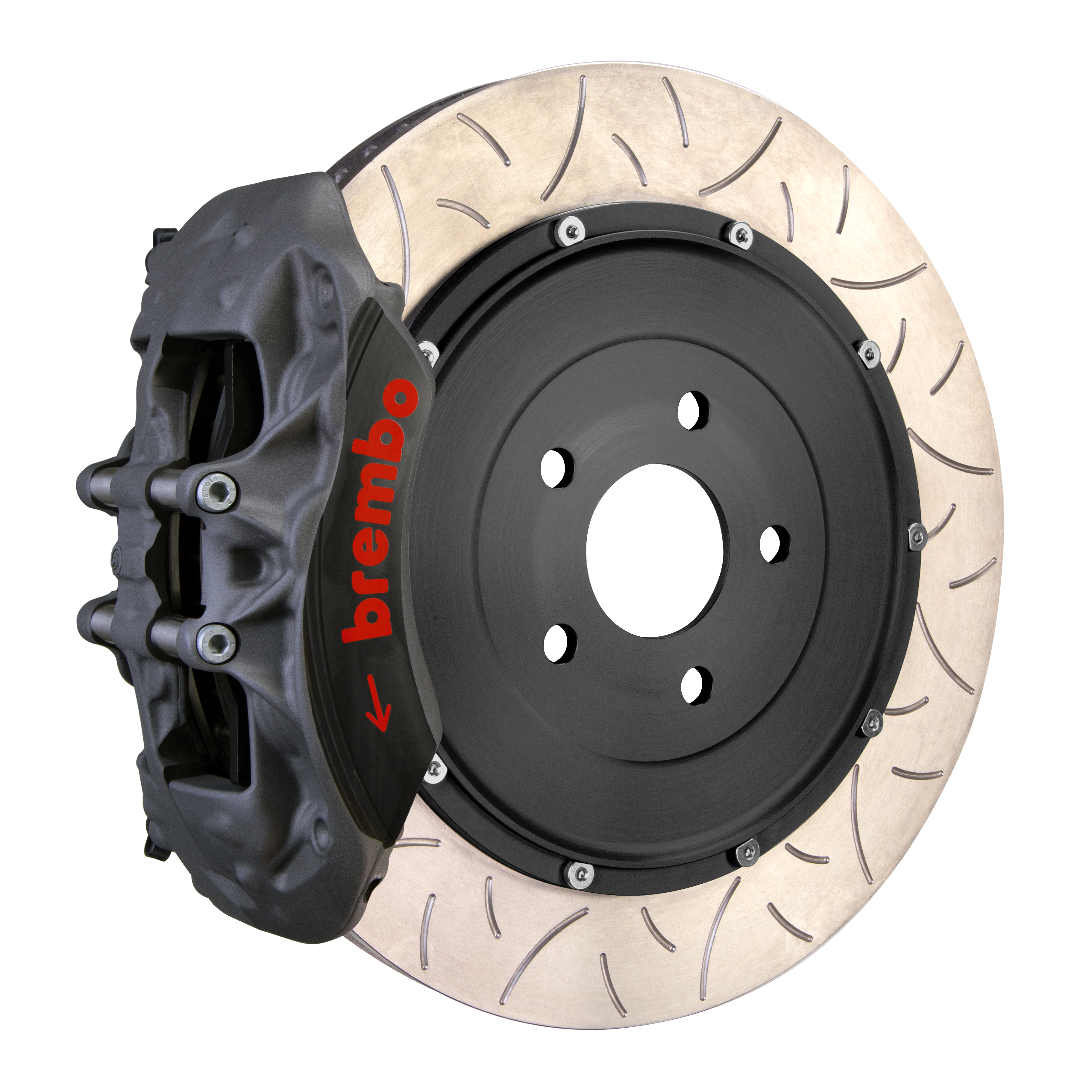

Brembo 3K3.9069AZ PISTA 6-Piston Front Brake Kit 380x35mm 2-Piece TY3 Slotted Discs

The Brembo 3K3.9069AZ PISTA 6-Piston racing brake system represents the pinnacle of track-focused braking technology, featuring 380x35mm two-piece discs with the legendary Type 3 (TY3) slot pattern. Engineered for serious motorsport applications, this front brake kit delivers professional-level performance with forged calipers and advanced disc construction designed to withstand the extreme thermal demands of racing.

Key Features:

• Two-Piece Disc Design: 380mm diameter x 35mm width with 53mm annulus measurement, featuring a cast iron braking ring and lightweight aluminum bell/hat assembly that allows thermal expansion without warping
• TY3 Slot Pattern: Professional motorsport-grade Type 3 slotting provides exceptional initial bite, continuously refreshes pad surface, and removes glazing for consistent performance throughout extended track sessions
• 6-Piston Forged Calipers: Radial mount forged caliper design combines the appearance of monobloc calipers with enhanced structural rigidity and reduced weight
• 72-Vane Ventilation: Curved vane design maximizes heat dissipation and thermal capacity to prevent fade during demanding racing conditions
• Racing-Proven Technology: TY3 slot design extensively used in GT racing, endurance championships including the 24 Hours of Le Mans, and professional motorsports worldwide
• Complete System: Kit includes calipers, two-piece rotors, high-performance brake pads, stainless steel braided brake lines, and all necessary mounting hardware

The Brembo PISTA system is purpose-built for competitive motorsport and track day applications where maximum braking performance and thermal management are critical. The two-piece floating disc design with anti-rattle spring mounting reduces unsprung weight while providing superior heat management compared to one-piece rotors. This is a professional-grade racing component designed for front axle installation on vehicles requiring 380mm disc diameter and 53mm annulus specifications.
