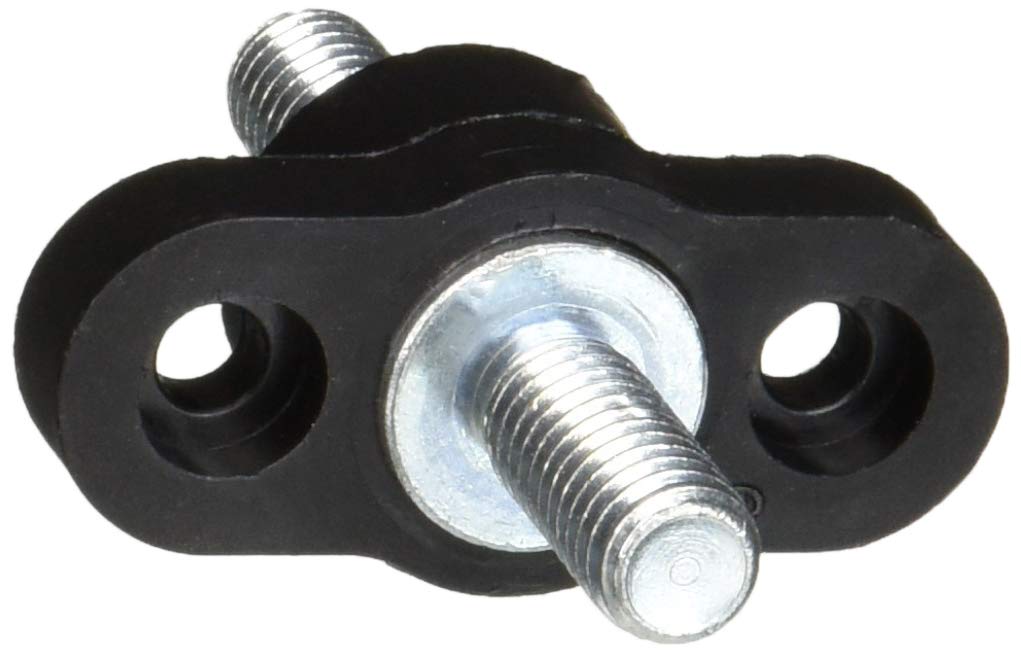

Bussmann BP/C1938 Feed-Through Stud Junction Block 3/8-16 Thread 250A 5-Pack

The Bussmann BP/C1938 is a feed-through stud-type junction block designed for heavy-duty ground or power connection point applications in automotive, marine, RV, and industrial electrical systems. This carded 5-pack includes five individual C1938 junction blocks, providing a reliable and cost-effective solution for high-current wiring installations.

Each block features a 3/8-16 threaded stud rated at up to 250 amps and supports a voltage range of 6–36V DC, making it suitable for a wide range of 12V and 24V system builds. The black thermoplastic housing and mounting bushing serve as a visual indicator for negative connections, while the zinc-plated stud ensures solid, corrosion-resistant conductivity.

Key Features:

• Feed-through stud-type design with 3/8-16 thread
• 250A maximum current rating; 6–36V DC operating range
• Maximum torque: 200 in-lbs (16.6 ft-lbs)
• Maximum operating temperature: 220°F (105°C)
• Glass-filled nylon / thermoplastic housing construction
• Black insulator and mounting bushing indicates negative connection
• Modular design for flexible installation and system expansion
• RoHS compliant; manufactured in the USA
• Complies with major standards including UL, SAE, CSA, CE, IEC, DIN, NEMA, BS
• Manufactured at ISO 9000 certified facilities
• Includes 5 junction blocks per carded pack
• Note: Nuts and washers are not included

Part of Eaton's Bussmann Series, the C1938 junction block is a trusted choice for professional installers and OEM applications requiring a robust, single-position power or ground connection point. The modular design allows easy integration into custom panel builds and distribution systems.
