Melling VSK46694T High Performance Dual Valve Spring Kit with Titanium Retainers for GM LS Engines

The Melling VSK46694T is a complete high-performance valve spring kit engineered for GM Gen III and Gen IV LS engines. Featuring an ovate beehive spring design, this kit delivers superior valvetrain stability, reduces valve float risk, and exceeds OEM spring pressure specifications — making it an ideal upgrade for street performance, circle track, and drag race applications.

The titanium valve spring retainers set this kit apart from the standard VSK46694. Lightweight titanium construction reduces reciprocating valvetrain mass, allowing the engine to rev more freely while maintaining reliable spring control under high-RPM conditions and aggressive camshaft profiles.

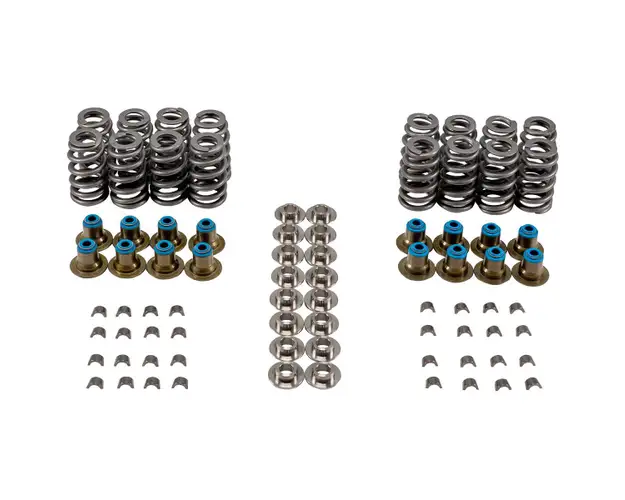

Kit Contents:

• (16) 466944 Dual Valve Springs
• (16) 475284 Titanium Valve Spring Retainers
• (8) 440014 Intake Valve Stem Oil Seals
• (8) 440024 Exhaust Valve Stem Oil Seals
• (32) VL-760 Valve Locks

Spring Specifications:

• Spring Type: Ovate Beehive Dual Spring
• Outside Diameter (O.D.): 1.300 inches
• Inside Diameter (I.D.): 0.675 inches
• Installed (Closed) Height: 1.800 inches
• Installed (Closed) Pressure: 145 lbs
• Open Height: 1.175 inches
• Open Pressure: 358 lbs
• Solid (Coil Bind) Height: 1.100 inches
• Maximum Valve Lift: 0.675 inches
• Retainer Material: Titanium

Melling's valve spring kits are built to cover the full spectrum of performance needs — from mild street builds to all-out racing engines. Every component in this kit is precision-manufactured to work as a matched system, ensuring consistent spring loads and trouble-free operation across a wide range of performance camshaft applications.
