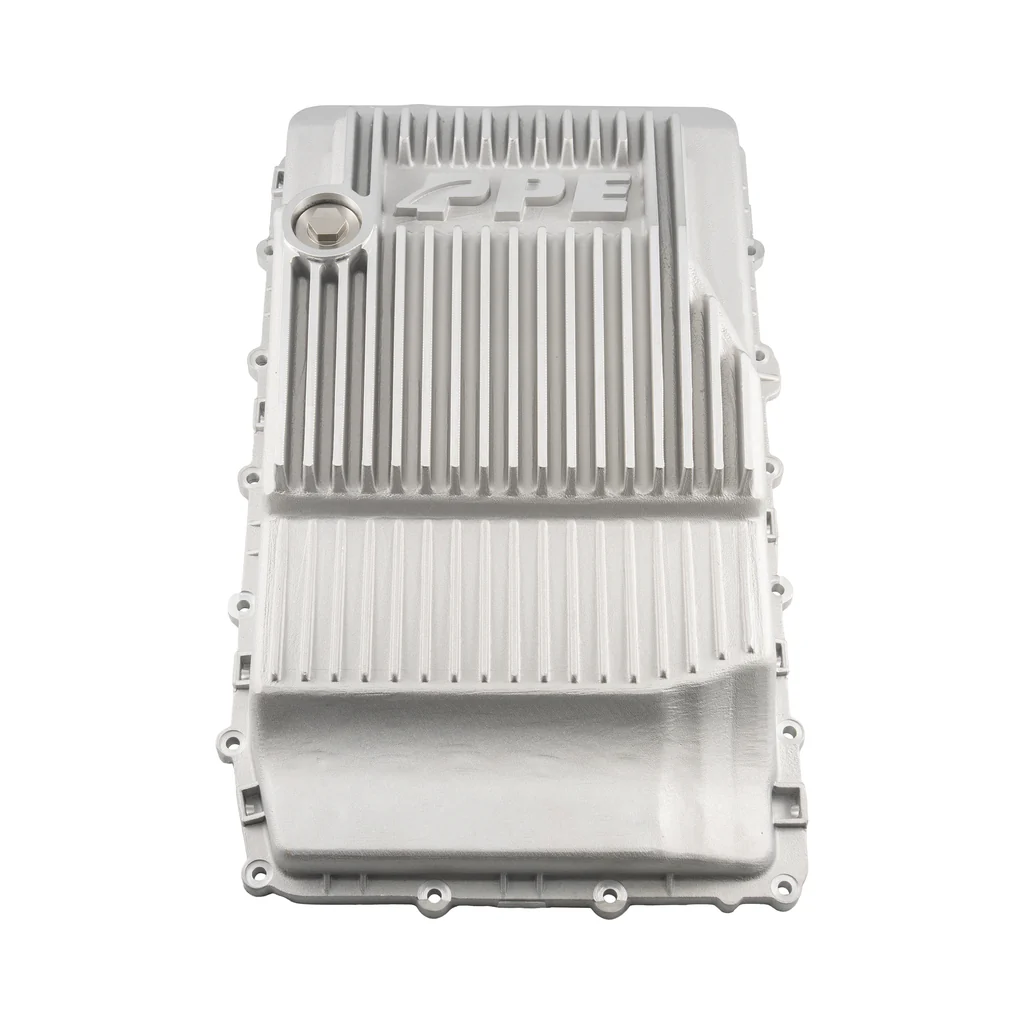

Pacific Performance Engineering 328053610 Heavy Duty Deep Cast Aluminum Transmission Pan, Brushed

The Pacific Performance Engineering 328053610 is a heavy-duty deep transmission pan (automatic transmission oil pan) for the 10R80 transmission. It is cast aluminum with a brushed finish. It replaces the stock pan to add fluid capacity and improve heat dissipation.

Key Features:

• Cast from A356.0-T6 heat-treated aluminum alloy
• Precision-cast in permanent steel molds for a consistent finish and dimensional accuracy
• Adds 1.75 quarts of fluid capacity over the stock pan

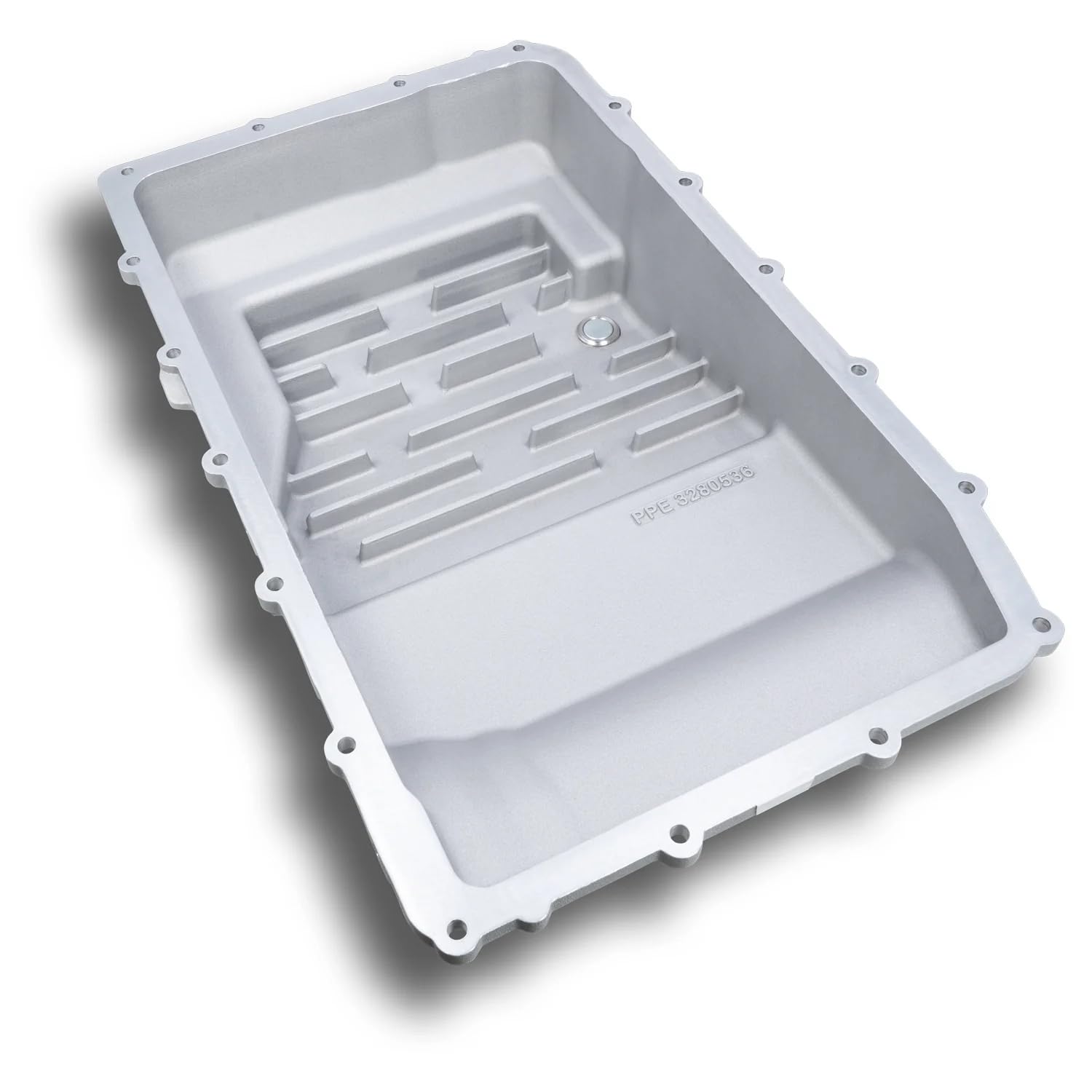

• Deep 3/4-inch internal baffles help absorb heat and reduce fluid sloshing
• External cooling fins and internal baffles form a cross-braced structure
• Cast-in gussets add support and rigidity at the transmission housing flange
• 304 stainless steel drain plug with a built-in neodymium magnet and Viton O-ring
• Includes a 1/8-inch NPT plug, installed

The installation guide has you reuse the factory gasket on the PPE pan after cleaning and inspecting it. Replace the gasket if it is damaged. The guide gives a pan bolt torque of 8 ft-lbs and a drain plug torque of 18-22 ft-lbs.
