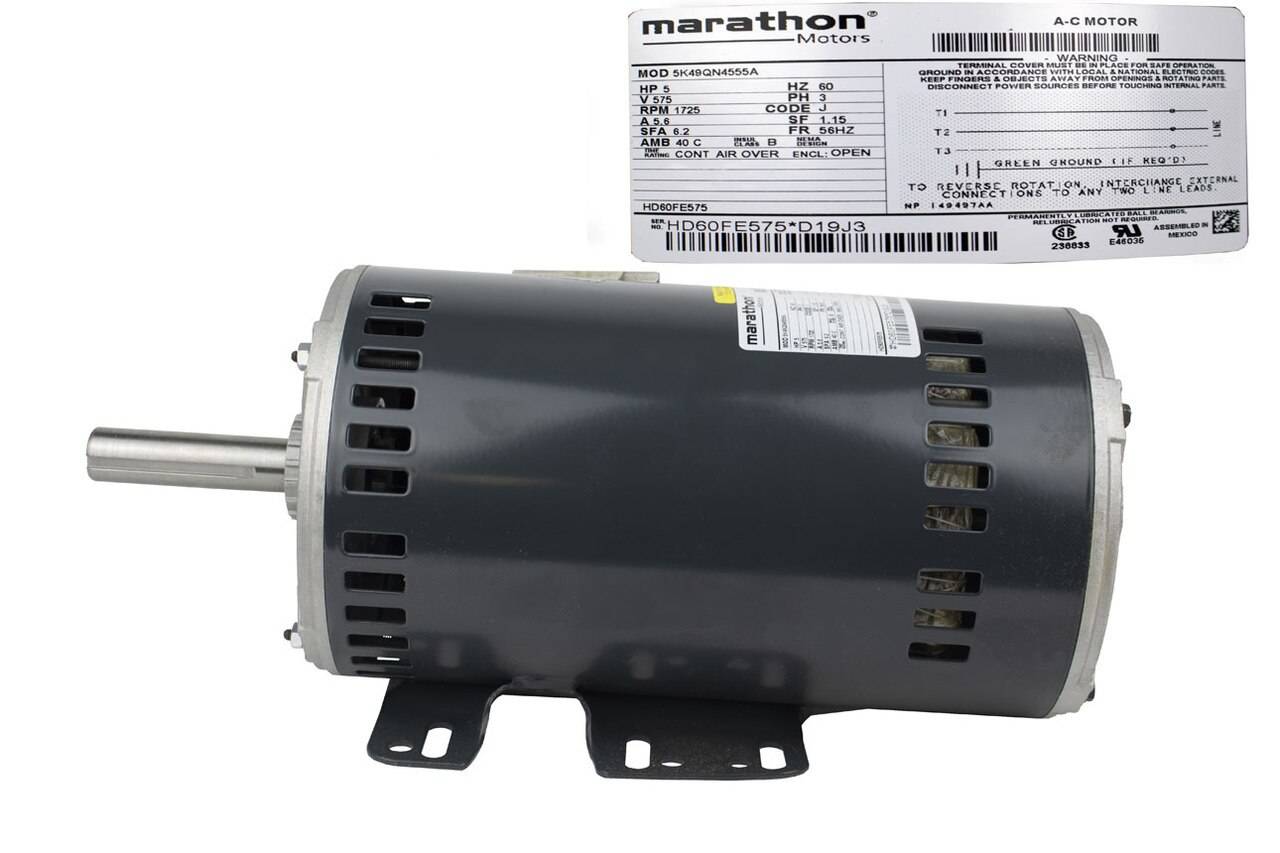

Carrier HD60FE575 5 HP 575V Three Phase Blower Motor 1725 RPM

The Carrier HD60FE575 is a genuine OEM replacement blower motor designed for commercial HVAC applications requiring 575-volt three-phase power. Manufactured by Marathon Motors (Model 5K49QN4555A), this industrial-grade motor delivers reliable performance in rooftop units and air handlers.

Key Specifications:

• 5.0 horsepower (5.25 HP maximum continuous with 1.15 service factor)
• 575 volts, 3-phase, 60 Hz operation at 1725 RPM
• 5.60 amp draw (6.20 amps at service factor)
• 56HZ frame with 7/8" diameter keyed shaft extending 3"
• Open drip-proof enclosure with permanently lubricated ball bearings
• Welded bolt plate mounting with reversible rotation (change leads)
• Class B insulation rated for 40°C ambient temperature
• Overall dimensions: 13.0" length x 6.5" diameter

What's Included:

• Blower motor (HD60FE575)
• Motor shaft key

This motor is designed for continuous air-over cooling duty and fits Carrier, Bryant, and Payne commercial equipment. It replaces old Carrier part number HD58FK577 and cross-references to multiple OEM part numbers. The reversible rotation feature allows field configuration for various installation requirements.

Important Installation Note: Always inspect the blower wheel for damage or imbalance, as defective wheels can cause premature motor failure due to vibration.
