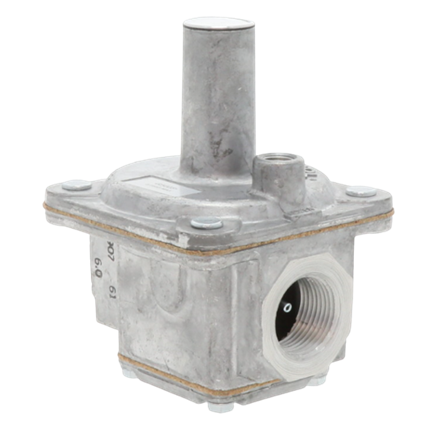

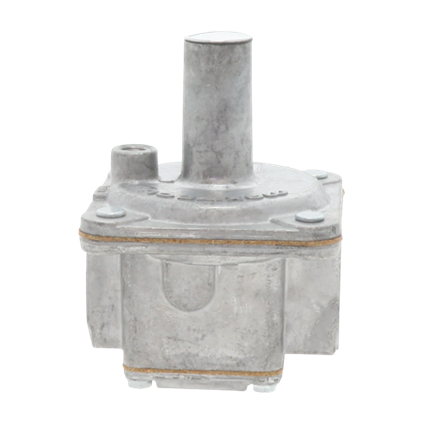

Maxitrol R500S-3/4-CSA 3/4" Gas Pressure Regulator with CSA Certification

The Maxitrol R500S-3/4-CSA is a double diaphragm balanced valve gas regulator with a 3/4" threaded connection and 1/8" NPT vent connection. This CSA certified model features a 1/2 PSI maximum inlet pressure rating and provides outlet pressure ranging from 3 to 6 inches water column (W.C.) The double diaphragm balanced valve design makes it possible to maintain steady outlet pressure control with widely varying inlet pressures.

Key Features:

• 3/4" NPT threaded connections with 3-6" W.C. outlet pressure range
• CSA certified for 1/2 PSI inlet pressure, Maxitrol tested up to 5 PSI
• Operating temperature range from -40°F to 205°F
• ANSI Z21.18/CSA 6.3 certified gas appliance pressure regulator
• Can be mounted in any position
• Capacity up to 800,000 BTU with included 3-6" standard spring

R & RS regulators are for main burner and pilot load applications and are ideal for use in industrial applications such as infrared heaters and on pilot lines for large process heaters and bakers. Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures. These regulators may also be used in residential applications as appliance regulators.
