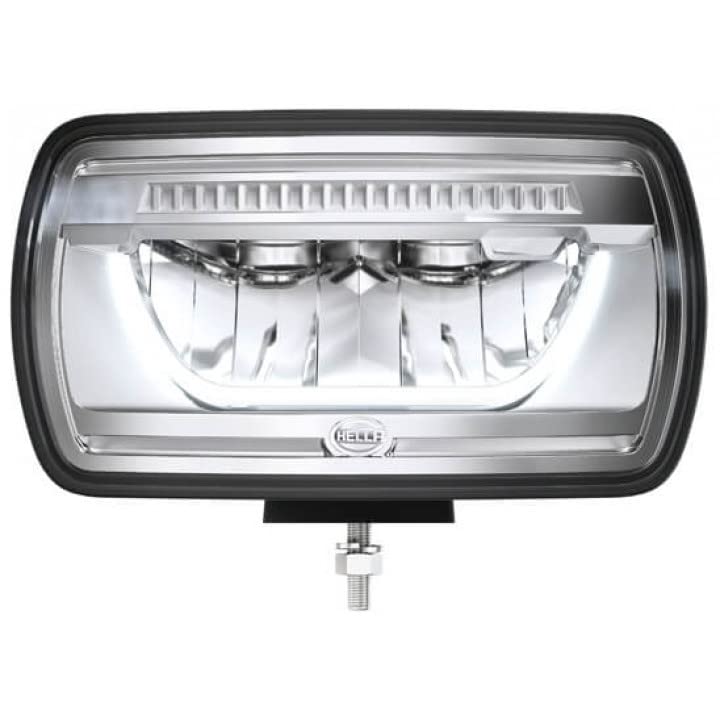

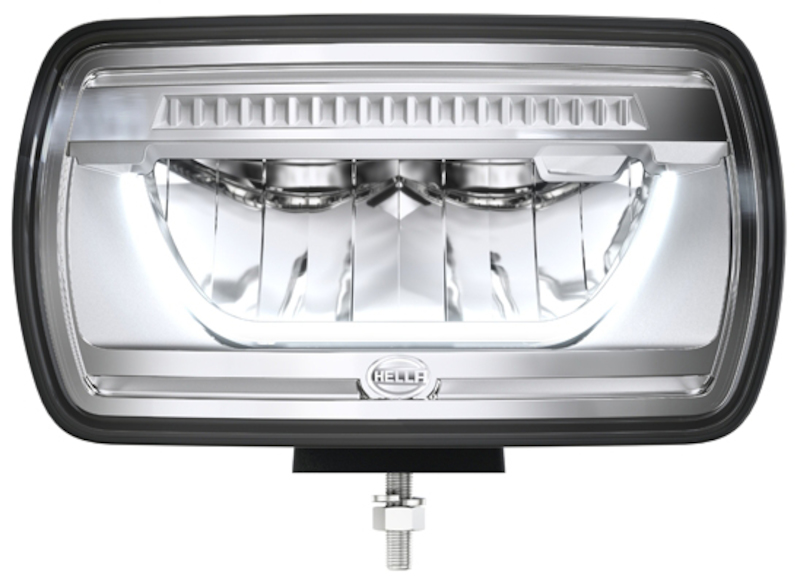

Hella 016773001 Jumbo LED Auxiliary High Beam Headlamp with Position Light - Upright Mount

The Hella 016773001 Jumbo LED (also known as 1FE 016 773-001) is a full-LED auxiliary high beam headlamp designed for upright surface mounting on trucks, commercial vehicles, and heavy equipment. It delivers powerful, daylight-quality illumination for demanding long-distance driving conditions while featuring a distinctive, instantly recognizable light signature.

At the heart of the Jumbo LED's design is EdgeLight technology, carried over from the automotive sector, which intensifies the contours of the characteristic smile-shaped LED position light — giving this auxiliary lamp a truly unique appearance on the road. The high-performance reflector, combined with durable LED technology, produces an extremely homogeneous, long-range high beam pattern that reduces driver eye fatigue on extended runs.

Key Features:

• 100% Full-LED technology — both high beam and position light are LED
• Multi-voltage operation — compatible with 12V and 24V electrical systems (9V–32V range)
• ECE type-approved — meets ECE R149 (high beam), ECE R148 (position light), and ECE R10 (EMC) standards
• Reference number 25 high beam output with 541 lm luminous flux
• 6000K color temperature — crisp, daylight-white light output
• Upright mounting configuration with tilt angle range of -5° to -95°
• Impact-resistant thermoplastic housing — lightweight at only 980g, significantly less than comparable die-cast aluminum designs
• Zinc-coated steel mounting bracket with wide adjustment range
• IP6K7 / IPX9K rated — protected against dust ingress and high-pressure water jets
• Immediate response flashing function for attention-grabbing headlight flash capability
• 800mm pre-wired cable with open cable ends for easy installation
• Clear crystal lens with black housing
• Electronics qualified to automotive-grade standards

Power Consumption:

• 12V: 1.3W (position light) / 8W (high beam)
• 24V: 2.7W (position light) / 8W (high beam)

Dimensions: 238mm W × 141mm H × 113mm D (approx. 9.4" × 5.6" × 4.4")

The Jumbo LED is ideal for roof bar mounting and is supplied with a lamp and mounting instructions. Also available in a pendant mount version and in a variant without position light.
